Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBL-240-10FT-N1-N1COAX CBL N-TYPE TO N-TYPE |
2,123 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-10FT-N1-S1COAX CBL SMA TO N-TYPE |
3,240 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-10FT-N9-T1COAX CBL N-TYPE TO TNC |
4,831 |
|
Datasheet |
CBL | Bulk | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
|

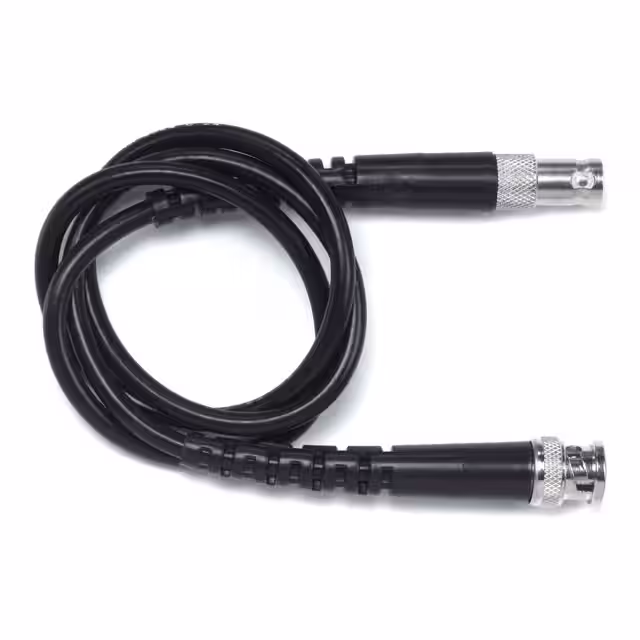

4524-C-48COAX CBL BNC TO BNC |
1,434 |
|
- |
- | Bulk | Obsolete | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | Shielded | 50°C | - | - |
|
095-902-463-010COAX CBL SMA TO CABLE |
3,678 |
|
Datasheet |
- | Bulk | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 10.000" (254.00mm) | UT-085C | - | - | 50 Ohms | 18 GHz | Gray | Shielded | -20°C ~ 75°C | - | - |
|
|
095-850-301M025COAX CBL BNC TO MMCX |
1,088 |
|
Datasheet |
- | Bag | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
73070-C-24COAX CBL SMA TO SMA |
1,409 |
|
Datasheet |
- | Bag | Obsolete | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58C | 50 Ohms | - | 50 Ohms | 3 GHz | Black | Shielded | -65°C ~ 165°C | - | - |
|
73075-VV-12COAX CBL MCX TO MCX |
2,780 |
|
Datasheet |
- | Bag | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | 1.5 GHz | Copper | Shielded | -55°C ~ 155°C | - | - |
|
415-0044-012COAX CBL SMA TO SMA |
4,672 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Copper | Shielded | - | - | - |
|
095-850-201M025COAX CBL 1.0/2.3 TO BNC |
2,021 |
|
Datasheet |
- | Bag | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-179 | 75 Ohms | - | 75 Ohms | 4 GHz | Copper | - | - | - | - |
|
095-850-187M075COAX CBL BNC TO BNC |
3,089 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
415-0047-048COAX CBL BNC TO BNC |
4,382 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | Belden 8218 | 75 Ohms | 75 Ohms | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
CO-058SMABNC0-010COAX CBL BNC TO SMA |
3,644 |
|
- |
- | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CBL-54-15FT-S1-S4COAX CBL SMA TO SMA |
4,074 |
|
Datasheet |
CBL | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 180.0" (4.6m) 15.0' | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
415-0007-012COAX CBL SMB TO SMB |
4,438 |
|
Datasheet |
- | Bulk | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | White | Shielded | - | - | - |
|
|
CO-058TNCRPTN-015COAX CBL RP-TNC TO N-TYPE |
4,971 |
|
- |
- | Bulk | Active | RP-TNC to N-Type | RP-TNC Plug | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 180.0" (4.6m) 15.0' | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
095-825-121M050COAX CBL MHV TO MHV |
2,540 |
|
- |
- | Bag | Active | MHV to MHV | MHV Plug | Male | Free Hanging (In-Line) | - | MHV Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-58 | 50 Ohms | - | 50 Ohms | 500 MHz | Black | - | -65°C ~ 60°C | - | - |
|

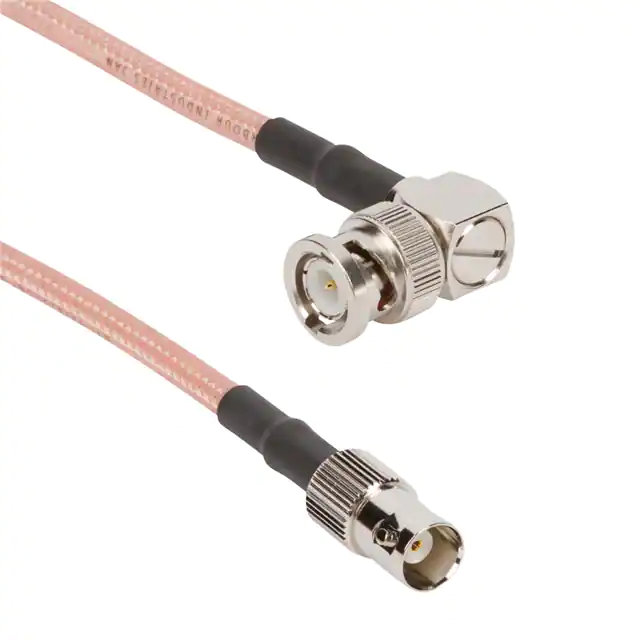

095-850-265M075COAX CBL BNC TO BNC |
4,788 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|
|
RF174-02SJ1-04BJ3-0100COAX CBL BNC TO MCX |
3,322 |
|
Datasheet |
RF174 | Bulk | Active | BNC to MCX | MCX Jack | Female | Free Hanging (In-Line) | - | BNC Jack | Female | Panel Mount | Bulkhead - Rear Side Nut | - | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
336303-13-0300COAX CBL U.FL AMC TO SMA |
1,246 |
|
Datasheet |
- | Bag | Not For New Designs | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
