Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMCA1018-3COAX CBL RP-SMA TO UMCX |
2,420 |
|
- |
- | Bag | Active | RP-SMA to UMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | UMCX Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 1.37mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
CBL-52-20FT-N1-M1N20 FT 0 IN RG58A/U, N MALE & MIN |
4,135 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CBL-60-20FT-N1-N4COAX CBL N-TYPE TO N-TYPE |
4,419 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CBL-60-20FT-M1-N3COAX CBL N-TYPE TO UHF MINI |
4,689 |
|
Datasheet |
CBL | Bulk | Active | N-Type to UHF, Mini | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | UHF, Mini Plug | Male | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|

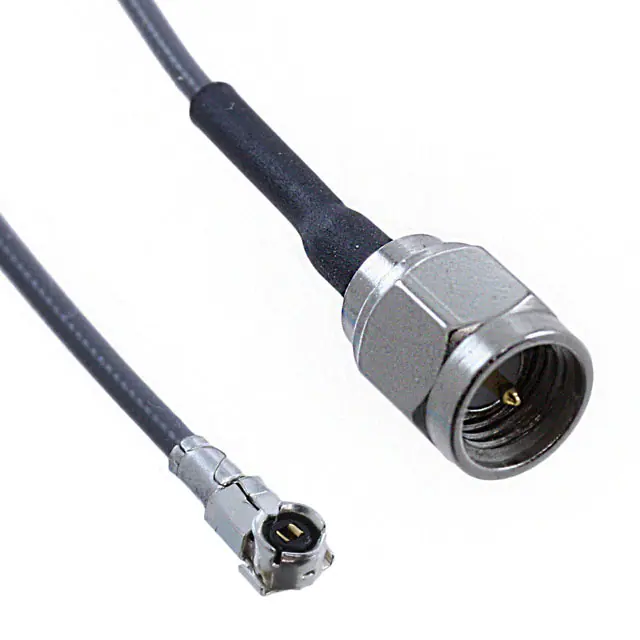

1192-12COAX CBL SMA TO H.FL |
1,188 |
|
- |
- | Bulk | Obsolete | SMA to H.FL | SMA Plug | Male | Free Hanging (In-Line) | - | H.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 1.27mm OD Coaxial Cable | - | - | - | - | Gray | Shielded | - | - | - |
|
095-850-165-048COAX CBL BNC TO BNC |
2,876 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | Belden 1505A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
CC6QF-50COAX CBL F-TYPE TO F-TYPE |
1,815 |
|
- |
- | Bag | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 600.0" (15.2m) 50.0' | RG-6 | 75 Ohms | - | - | - | Black | - | - | - | - |
|
415-0047-036COAX CBL BNC TO BNC |
3,447 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 8218 | 75 Ohms | 75 Ohms | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
CBL-195-25FT-N1-S1COAX CBL SMA TO N-TYPE |
2,790 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
4524-C-36COAX CBL BNC TO BNC |
2,610 |
|
- |
- | Bulk | Obsolete | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | Shielded | 50°C | - | - |
|
|
095-850-302M025COAX CBL BNC TO MMCX |
3,680 |
|
Datasheet |
- | Bag | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
095-850-259-018COAX CBL BNC TO BNC |
1,573 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
IJ5C-02-0200-S-S-1COAX CBL IJ5C TO CABLE |
3,823 |
|
Datasheet |
ISORATE® IJ5C | Bulk | Active | IJ5C to Cable | IJ5C Jack | Female | Free Hanging (In-Line) | - | Cable (Round), Stripped & Tinned | - | - | - | - | RG-316 | 50 Ohms | - | 50 Ohms | 9.9 GHz | Amber | - | -40°C ~ 90°C | - | - |
|
|
PT820TTCOAX CBL TNC TO TNC |
1,396 |
|
- |
- | Bulk | Active | TNC to TNC | TNC Plug | Male | - | - | TNC Plug | Male | - | - | 240.0" (6.1m) 20.0' | - | - | - | - | - | - | - | - | - | - |
|
|
2479975-1CABLE ASSEMBLY BNC JACK STRAIGHT |
2,510 |
|
- |
- | Bulk | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.01" (305.00mm) | - | - | - | 75 Ohms | 4 GHz | Black | - | -30°C ~ 75°C | - | - |
|
|
IJ5C-01-0100-S-D-NUSCOAX CBL IJ5C TO IJ5C |
3,366 |
|
Datasheet |
ISORATE® IJ5C | Bulk | Active | IJ5C to IJ5C | IJ5C Plug | Male | Free Hanging (In-Line) | - | IJ5C Plug | Male | Free Hanging (In-Line) | - | 3.937" (100.00mm) | - | 50 Ohms | - | 50 Ohms | 9.5 GHz | Blue | - | -40°C ~ 90°C | - | - |
|
|
336303-13-0150COAX CBL U.FL AMC TO SMA |
4,300 |
|
Datasheet |
- | Bag | Not For New Designs | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
095-902-525-012COAX CBL SMA TO N-TYPE |
2,404 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | - | - | - | - | - |
|
|
CBL-195-12FT-S5-S23COAX CBL N-TYPE TO N-TYPE |
2,118 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

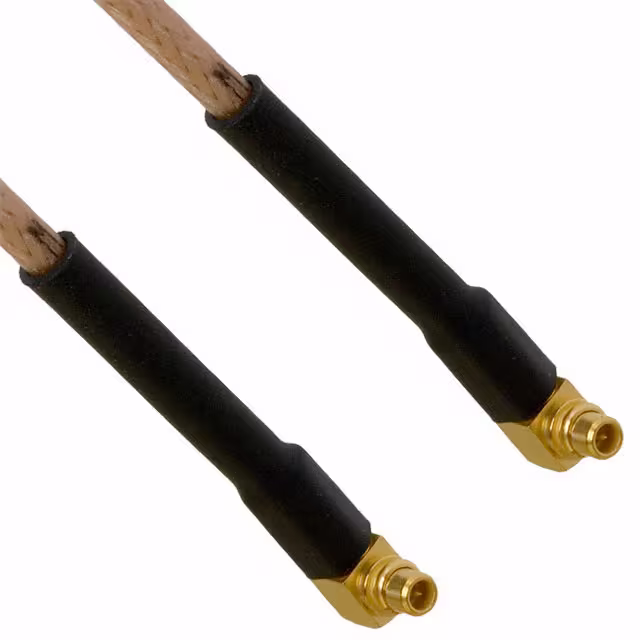

415-0069-MM750COAX CBL MMCX TO MMCX |
2,379 |
|
Datasheet |
- | Bulk | Active | MMCX to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
