Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-281-050COAX CBL AMC4 TO TNC |
3,945 |
|
Datasheet |
- | Bag | Active | AMC4 to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
0731359060CA TNC PLUG TO SEAL FAKRA PLUG R |
4,386 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

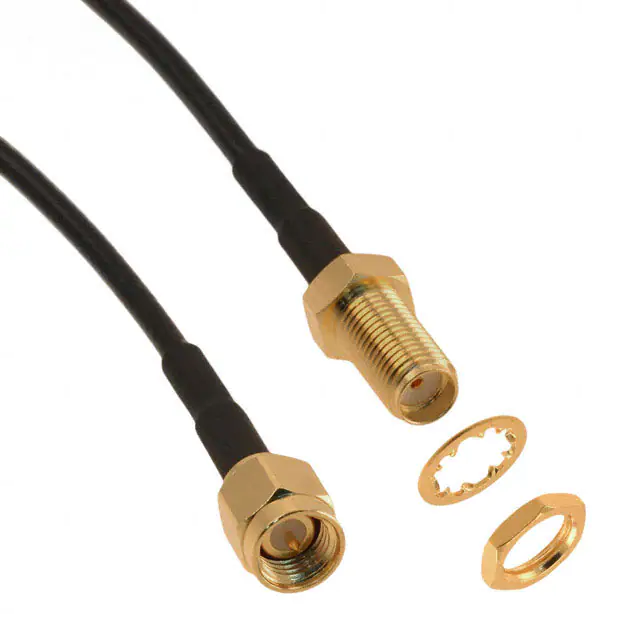

135110-01-48.00COAX CBL SMA TO SMA |
1,096 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
|
0732307114CASMA J STR BH TO SMA P RARG316D |
3,321 |
|
- |
73230 | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
095-850-278-048COAX CBL BNC TO BNC |
4,319 |
|
Datasheet |
BNC | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 240 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
9202404R0629COAX CBL BNC TO BNC |
2,633 |
|
Datasheet |
COAX-CBL-PMN | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-58C | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | 80°C | - | - | |
|
095-850-246M150COAX CBL BNC TO SMA |
3,207 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
|
CBL-12-360-N3-S1COAX CBL SMA TO N-TYPE |
3,137 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 360.0" (9.1m) 30.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
RF058-06SP2-303030-0100COAX CBL N TYPE TO CABLE |
1,066 |
|
Datasheet |
RF058 | Bulk | Active | N Type to Cable | N Type Plug | Male | Free Hanging (In-Line) | - | Cable (Round), Stripped & Tinned | - | - | - | - | RG-58 | - | - | 50 Ohms | 1 GHz | Violet | - | -50°C ~ 90°C | - | - |
|
|
CBL-195-7.5M-N1-S1COAX CBL SMA TO N-TYPE |
2,918 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 295.3" (7.5m) 24.6' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
095-902-527M100COAX CBL SMA TO N-TYPE |
2,391 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 39.4" (1.0m) 3.3' | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | - | - | - | - | - |
|
|
CBL-240-16-N1-N3COAX CBL N-TYPE TO N-TYPE |
2,203 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 16.00" (406.40mm) | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
9202422R0647COAX CBL BNC TO BNC |
2,844 |
|
Datasheet |
COAX-CBL-PMN | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-58C | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | 80°C | - | - | |
|
|
LCCA30542-FT1COAX CBL SMA TO N-TYPE |
2,609 |
|
- |
- | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | LC085TB | - | - | - | 10 GHz | Silver | - | - | - | - |
|
|
LCCA30276-FT1.5COAX CBL SMA TO TNC |
3,514 |
|
- |
- | Bag | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | LMR 240 DB | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
FMCA1033-12COAX CBL RP-SMA TO UMCX |
4,745 |
|
- |
- | Bag | Active | RP-SMA to UMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | UMCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.81mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
FMCA1020-9COAX CBL RP-SMA TO UMCX |
4,184 |
|
- |
- | Bag | Active | RP-SMA to UMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | UMCX Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Tan | - | -55°C ~ 125°C | - | - |
|
|
FMCA1033-6COAX CBL RP-SMA TO UMCX |
1,686 |
|
- |
- | Bag | Active | RP-SMA to UMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | UMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.81mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
FMCA1017-6COAX CBL RP-SMA TO UMCX |
2,876 |
|
- |
- | Bag | Active | RP-SMA to UMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | UMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 125°C | - | - |
|

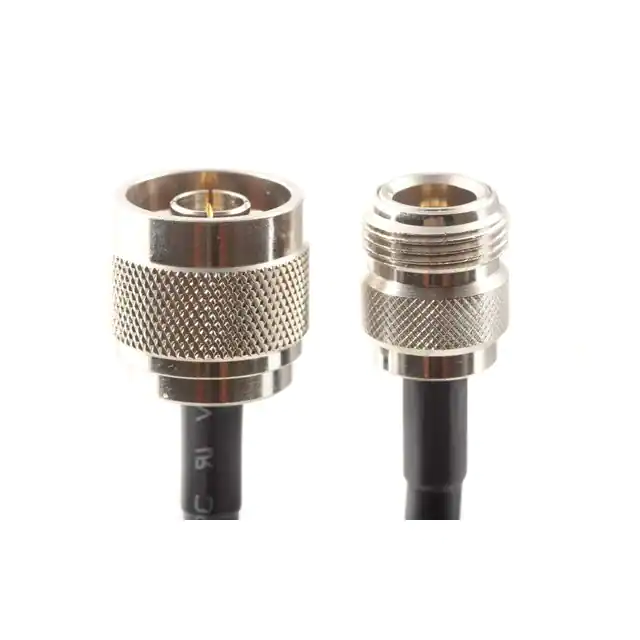

CAB.917COAX CBL N-TYPE TO N-TYPE |
4,325 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 39.4" (1.0m) 3.3' | 4.95mm OD Coaxial Cable | - | - | 50 Ohms | - | Black | Shielded | - | - | - |
