Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-302-018COAX CBL BNC TO MMCX |
3,998 |
|
Datasheet |
- | Bag | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
|
PT815NBCOAX CBL BNC TO N-TYPE |
2,012 |
|
Datasheet |
- | Bulk | Active | BNC to N-Type | BNC Plug | Male | - | - | N-Type Plug | Male | - | - | 180.0" (4.6m) 15.0' | RG-58 | - | - | - | - | - | - | - | - | - |
|
|
PT89TTCOAX CBL TNC TO TNC |
1,070 |
|
- |
- | Bulk | Active | TNC to TNC | TNC Plug | Male | - | - | TNC Plug | Male | - | - | 1068.0" (27.1m) 89.0' | - | - | - | - | - | - | - | - | - | - |
|
095-850-246-060COAX CBL BNC TO SMA |
2,311 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
095-850-201M030COAX CBL 1.0/2.3 TO BNC |
3,348 |
|
Datasheet |
- | Bag | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 11.811" (300.00mm) | RG-179 | 75 Ohms | - | 75 Ohms | 4 GHz | Copper | - | - | - | - |
|
|
2249-C-12#COAX CBL BNC TO BNC |
4,808 |
|
- |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58C | 50 Ohms | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
CBL-195-25FT-N1-N4COAX CBL N-TYPE TO N-TYPE |
4,997 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
0732308052NPR729 CABLE ASSEMBLY WFOV |
1,561 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
095-850-273M200COAX CBL TNC TO TNC |
3,816 |
|
Datasheet |
TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
095-825-121-012COAX CBL MHV TO MHV |
1,394 |
|
- |
- | Bag | Active | MHV to MHV | MHV Plug | Male | Free Hanging (In-Line) | - | MHV Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | - | 50 Ohms | 500 MHz | Black | - | -65°C ~ 60°C | - | - |
|
|
CBL-62-34IN-S1-S12FT 2IN RG316, SMA MALE & SMA MA |
2,525 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
095-850-234M010COAX CBL BNC TO CABLE |
3,443 |
|
Datasheet |
- | Bag | Active | BNC to Cable | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 3.937" (100.00mm) | Hand Formable .085 | - | - | 50 Ohms | 4 GHz | Silver | - | - | - | - |
|

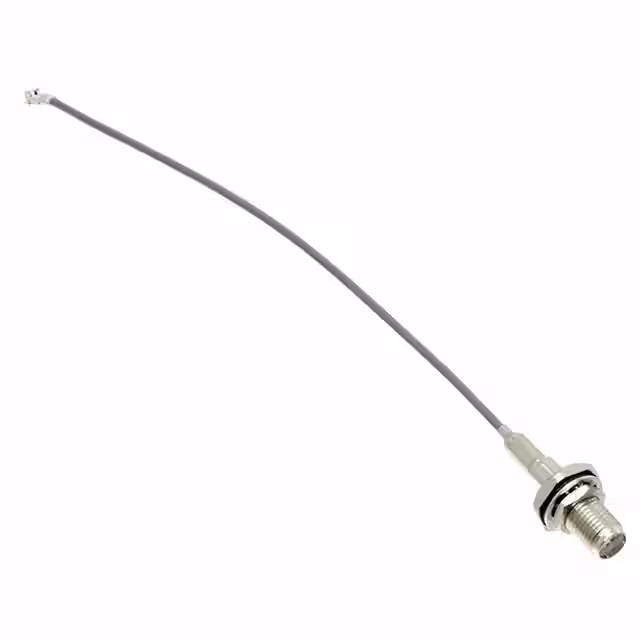

KSM-1193-06-SMAJCOAX CBL SMA TO H.FL |
4,639 |
|
Datasheet |
- | Bulk | Obsolete | SMA to H.FL | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | H.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 1.27mm OD Coaxial Cable | - | - | 50 Ohms | - | Gray | Shielded | - | - | - |
|
|
9202387R0612COAX CBL BNC TO BNC |
3,867 |
|
Datasheet |
COAX-CBL-PMN | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-58C | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | 80°C | - | - | |
|
|
9202415R0640COAX CBL SMA TO SMA |
4,417 |
|
Datasheet |
COAX-CBL-PMN | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-178B | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -65°C ~ 165°C | - | - | |
|
|
9202414R0639COAX CBL BNC TO CABLE |
1,485 |
|
Datasheet |
COAX-CBL-PMN | Active | BNC to Cable | BNC Plug | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 60.0" (1.5m) 5.0' | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | Shielded | 50°C | - | - | |
|
|
IJ5C-02-0400-S-S-1COAX CBL IJ5C TO CABLE |
1,174 |
|
Datasheet |
ISORATE® IJ5C | Bulk | Active | IJ5C to Cable | IJ5C Jack | Female | Free Hanging (In-Line) | - | Cable (Round), Stripped & Tinned | - | - | - | - | RG-316 | 50 Ohms | - | 50 Ohms | 9.9 GHz | Amber | - | -40°C ~ 90°C | - | - |
|
|
095-902-526-060COAX CBL SMA TO N-TYPE |
4,415 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Panel Mount | Bulkhead - Front Side Nut | 60.0" (1.5m) 5.0' | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | - | - | - | - | - |
|
|
095-825-121-018COAX CBL MHV TO MHV |
1,555 |
|
- |
- | Bag | Active | MHV to MHV | MHV Plug | Male | Free Hanging (In-Line) | - | MHV Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-58 | 50 Ohms | - | 50 Ohms | 500 MHz | Black | - | -65°C ~ 60°C | - | - |
|

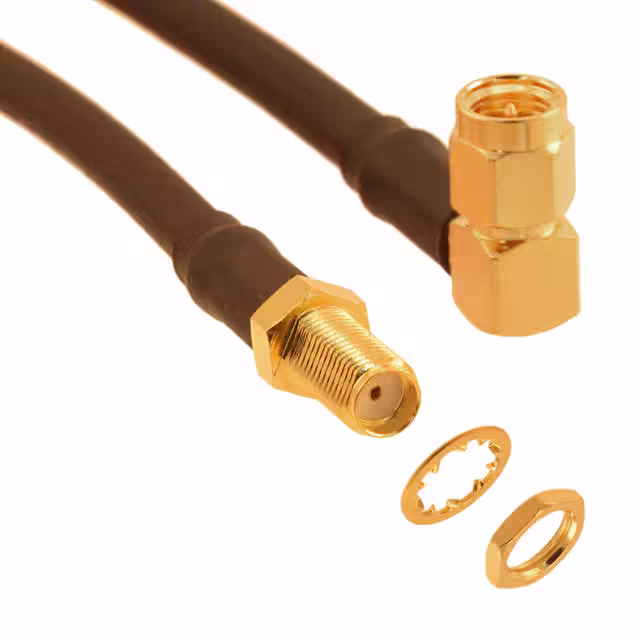

135111-04-36.00COAX CBL SMA TO SMA |
1,530 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
