Analog Devices Inc. ADF5610BCCZ Microwave Synthesizer — 7.3–14.6 GHz, VCO Int.

Part No.:
ADF5610BCCZ Microwave Synthesizer — 7.3–14.6 GHz, VCO Int.
Manufacturer:
Analog Devices Inc.
Category:
Clock Generators, PLLs, Frequency Synthesizers
Package:
48-VFLGA Exposed Pad
Datasheet:
SANJIA TECHNOLOGY LTD.ADF5610BCCZ Microwave Synthesizer — 7.3–14.6 GHz, VCO Int..pdf
Description:
IC INTEGER-N/FRACTIONAL 48LGA
Quantity:
Payment:
Payment
Shipping:
Shipping

Inventory:2,559

Please send an inquiry. Send us your inquiry, and we will respond immediately.

Part Number
Quantity*
Price
Name*
Company*
Email*
Comments

Product details

Analog Devices ADF5610BCCZ - Microwave Wideband Synthesizer

The ADF5610BCCZ is Analog Devices' microwave wideband synthesizer: an integer/fractional-N PLL wrapped around an integrated VCO whose 3.65–7.3 GHz fundamental is doubled to a single-ended 7.3–14.6 GHz RFOUT, with a differential output dividing down to 57 MHz. Sub-40 µs lock time, −115 dBc/Hz phase noise and sub-40 fs integrated jitter make it a drop-in LO/clock for radio and converter systems.

Key Features

  • Integrated VCO 3.65–7.3 GHz, internally doubled: RFOUT 7.3–14.6 GHz
  • Differential output with ÷1…÷128 - coverage down to 57 MHz
  • Phase noise −115 dBc/Hz @ 100 kHz (7 GHz class); jitter < 38 fs rms
  • 100 MHz phase-detector rate; exact-frequency mode (0 Hz error)
  • Fast lock < 40 µs with single passive loop filter
  • Programmable output power (≈3 dB steps); 48-lead 7 × 7 mm LFCSP

Technical Specifications

Manufacturer classificationAnalog Devices official: RF frequency synthesizers (PLL + integrated VCO)
ManufacturerAnalog Devices
FamilyADF5610 microwave synthesizer
RF output (single-ended)7,300–14,600 MHz
Differential output57 MHz – 14.6 GHz (÷1/2/4/8/16/32/64/128)
VCO fundamental3,650–7,300 MHz
Phase noise−115 dBc/Hz typ @ 100 kHz (7.3 GHz)
RMS jitter< 38 fs (1 kHz–100 MHz, with low-noise reference)
Lock time< 40 µs (internal state machine)
Interfaces3-wire SPI; power-down modes
Package48-lead LFCSP, 7 × 7 mm

Typical Applications

Per ADI's product and design notes: point-to-point microwave radios and VSAT LO synthesis, cellular infrastructure, communications test equipment, CATV, military electronics, and ADC/DAC clocking where sub-40 fs jitter protects converter SNR.

Procurement & Availability

  • Availability: in stock - live quantity shown above
  • MOQ: 1 pc
  • Lead time: ships within 24 h for orders confirmed before 15:00 CST
  • Packaging: factory sealed
  • Warranty: 12 months · traceability: date code and lot on request

Frequently Asked Questions

Q: Single-ended vs differential output?
A: RFOUT is the doubled VCO (7.3–14.6 GHz); the differential port adds divide chains for anything from 57 MHz up - one part covers eight octaves.

Q: External components needed?
A: An external loop filter and reference. With one passive filter the internal state machine locks in < 40 µs.

Q: BCCZ suffix?
A: Package/temperature marking variant of the ADF5610; electrical specs identical across the family.

Parameter Sources

  • Analog Devices ADF5610 product page + data sheet (7.3–14.6 GHz, ÷128 to 57 MHz, −115 dBc/Hz, < 40 µs lock, LFCSP-48)
  • ADI design note: Microwave synthesizer offers multioctave coverage

Pictures are for reference only; actual product prevails. Specifications per the manufacturer datasheet - verify against the current revision before design-in.

  • Specifications
  • FAQ
  • Product Comparison
  • Tags
Product attributes
Attribute value
Manufacturer:
Analog Devices Inc.
Series:
-
Package/Case:
48-VFLGA Exposed Pad
Packaging:
Tray
Product Status:
Obsolete
Programmable:
Not Verified
Type:
Integer-N/Fractional-N, VCO
PLL:
Yes
Input:
Clock
Output:
Clock
Number of Circuits:
1
Ratio - Input:Output:
1:2
Differential - Input:Output:
No/Yes
Frequency - Max:
14.6GHz
Divider/Multiplier:
Yes/Yes
Voltage - Supply:
3.1V ~ 3.5V, 4.75V ~ 5.25V
Operating Temperature:
-40°C ~ 85°C
Mounting Type:
Surface Mount
Grade:
-
Qualification:
-
Supplier Device Package:
48-LGA (7x7)

1. How to order ADF5610BCCZ Microwave Synthesizer — 7.3–14.6 GHz, VCO Int. on SANJIA TECHNOLOGY LTD.?

Currently, SANJIA TECHNOLOGY LTD. only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does SANJIA TECHNOLOGY LTD. guarantee that ADF5610BCCZ Microwave Synthesizer — 7.3–14.6 GHz, VCO Int. is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the ADF5610BCCZ Microwave Synthesizer — 7.3–14.6 GHz, VCO Int.. All suppliers must pass our qualification reviews before they can publish their products including ADF5610BCCZ Microwave Synthesizer — 7.3–14.6 GHz, VCO Int. on SANJIA TECHNOLOGY LTD.; we pay more attention to the channels and quality of ADF5610BCCZ Microwave Synthesizer — 7.3–14.6 GHz, VCO Int. products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the ADF5610BCCZ Microwave Synthesizer — 7.3–14.6 GHz, VCO Int. price and inventory displayed accurate?

The price and inventory of ADF5610BCCZ Microwave Synthesizer — 7.3–14.6 GHz, VCO Int. fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of ADF5610BCCZ Microwave Synthesizer — 7.3–14.6 GHz, VCO Int.?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the ADF5610BCCZ Microwave Synthesizer — 7.3–14.6 GHz, VCO Int. we delivered, we will accept the replacement or return of the ADF5610BCCZ Microwave Synthesizer — 7.3–14.6 GHz, VCO Int. only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of ADF5610BCCZ Microwave Synthesizer — 7.3–14.6 GHz, VCO Int..

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations

7.How to contact us to get technical supports, such as ADF5610BCCZ Microwave Synthesizer — 7.3–14.6 GHz, VCO Int. pin diagram, ADF5610BCCZ Microwave Synthesizer — 7.3–14.6 GHz, VCO Int. datasheet?

If you need any after-sales service, please do not hesitate to contact us.

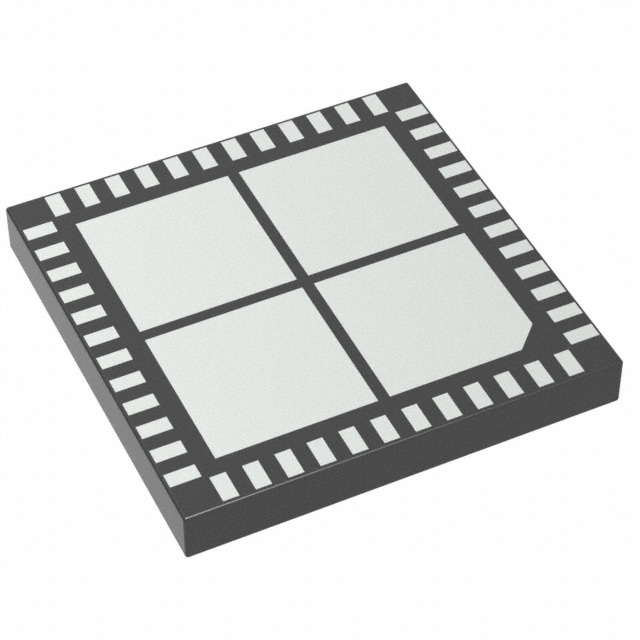

Image ADF5610BCCZ Microwave Synthesizer — 7.3–14.6 GHz, VCO Int.
Part Number ADF5610BCCZ Microwave Synthesizer — 7.3–14.6 GHz, VCO Int.
Manufacturer Analog Devices Inc.
Series -
Package/Case 48-VFLGA Exposed Pad
Packaging Tray
Product Status Obsolete
Programmable Not Verified
Type Integer-N/Fractional-N, VCO
PLL Yes
Input Clock
Output Clock
Number of Circuits 1
Ratio - Input:Output 1:2
Differential - Input:Output No/Yes
Frequency - Max 14.6GHz
Divider/Multiplier Yes/Yes
Voltage - Supply 3.1V ~ 3.5V, 4.75V ~ 5.25V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Grade -
Qualification -
Supplier Device Package 48-LGA (7x7)
