Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
336206-12-0300COAX CBL U.FL AMC TO RP-TNC |
3,749 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to RP-TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
RF058-06SP3-SING-0400COAX CBL N TYPE TO CABLE |
3,354 |
|
Datasheet |
RF058 | Bulk | Active | N Type to Cable | N Type Plug | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | - | RG-58 | - | - | 50 Ohms | 1 GHz | Violet | - | -50°C ~ 90°C | - | - |
|
415-0022-024COAX CBL MCX TO MCX |
4,526 |
|
Datasheet |
- | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|
73065-BB-36COAX CBL SMA TO MMCX |
3,570 |
|
Datasheet |
- | Bag | Obsolete | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -55°C ~ 155°C | - | - |
|
73070-C-48COAX CBL SMA TO SMA |
3,269 |
|
Datasheet |
- | Bag | Obsolete | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-58C | 50 Ohms | - | 50 Ohms | 3 GHz | Black | Shielded | -65°C ~ 165°C | - | - |
|

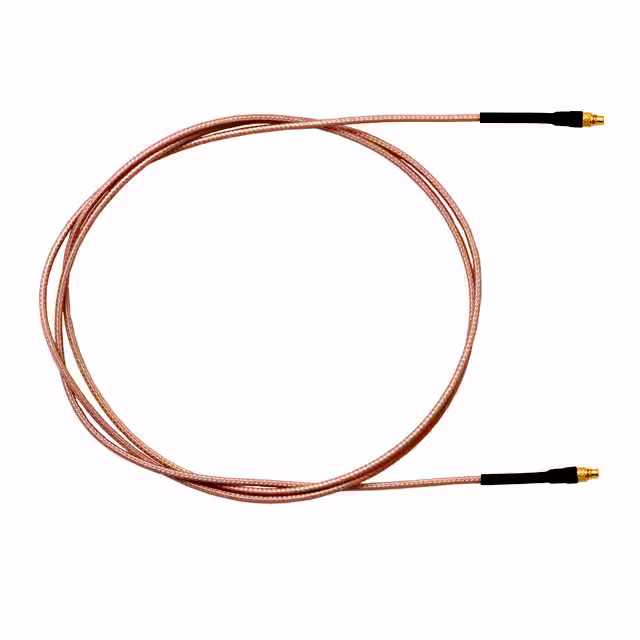

73077-UU-36COAX CBL MMCX TO MMCX |
4,638 |
|
Datasheet |
- | Bag | Obsolete | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-178B | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -55°C ~ 155°C | - | - |
|

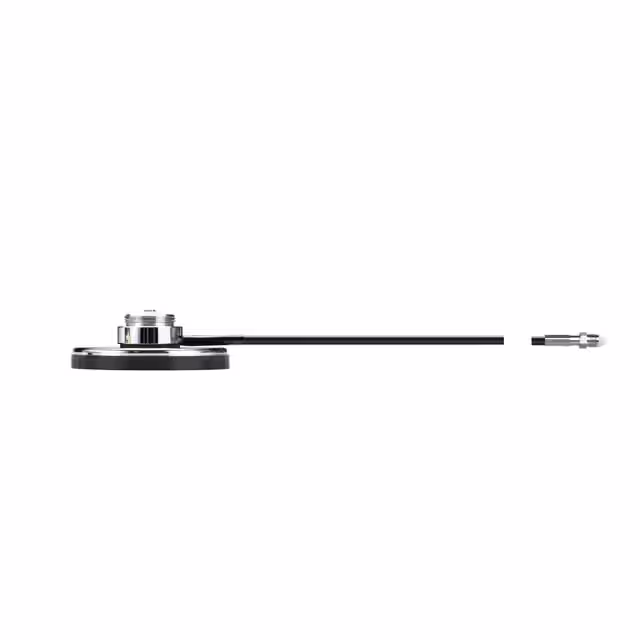

CAB.W11COAX CBL NMO TO FME |
4,384 |
|
Datasheet |
- | Bag | Active | NMO to FME | NMO | Non-Gendered | Panel Mount | Magnet Mount | FME Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58 | 50 Ohms | - | 53 Ohms | - | Black | Shielded | - | - | - |
|
|
CT4098-100COAX CBL BNC TO BNC |
3,004 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | 0°C ~ 80°C | - | - |
|
|
IJ5C-01-0200-S-D-NUS-1COAX CBL IJ5C TO IJ5C |
4,869 |
|
Datasheet |
ISORATE® IJ5C | Bulk | Active | IJ5C to IJ5C | IJ5C Jack | Female | Free Hanging (In-Line) | - | IJ5C Jack | Female | Free Hanging (In-Line) | - | - | RG-316 | 50 Ohms | - | 50 Ohms | 9.9 GHz | Amber | - | -40°C ~ 90°C | - | - |
|
415-0011-018COAX CBL SMB MINI-SMB MINI |
2,332 |
|
Datasheet |
- | Bulk | Active | SMB Mini to SMB Mini | SMB Mini Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Mini Plug, Right Angle | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-179 DS | 75 Ohms | 75 Ohms | 75 Ohms | 2 GHz | White | Shielded | - | - | - |
|
|
CTL1B-1COAX CBL BNC TO BNC |
4,054 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | - | 75 Ohms | - | - | Black | - | - | - | - |
|
|
095-850-304M025COAX CBL BNC TO MCX |
4,276 |
|
Datasheet |
- | Bag | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
|
CBL-12-5M-N1-N1COAX CBL N-TYPE TO N-TYPE |
4,219 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-12-5M-S1-T1COAX CBL SMA TO TNC |
3,267 |
|
Datasheet |
CBL | Bulk | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-12-5M-B1-N1COAX CBL BNC TO N-TYPE |
2,678 |
|
Datasheet |
CBL | Bulk | Active | BNC to N-Type | BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-12-5M-B1-S4COAX CBL BNC TO SMA |
2,588 |
|
Datasheet |
CBL | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-12-5M-B1-T9COAX CBL BNC TO TNC |
3,909 |
|
Datasheet |
CBL | Bulk | Active | BNC to TNC | BNC Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 196.9" (5.0m) 16.4' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
175101-19-12.00COAX CBL N-TYPE TO N-TYPE |
2,781 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
|
336306-12-0100COAX CBL U.FL AMC TO RP-SMA |
1,178 |
|
Datasheet |
- | Bulk | Not For New Designs | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
095-902-570M050COAX CBL SMA TO SMA |
4,550 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | - | -65°C ~ 165°C | - | - |
