Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBL-240-3M-S2-S5COAX CBL RP-SMA TO RP-SMA |
2,213 |
|
Datasheet |
CBL | Bulk | Active | RP-SMA to RP-SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CC59A-4COAX CBL BNC TO BNC |
4,419 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-59 | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
|
CBL-400-4FT-N4-T1COAX CBL N-TYPE TO TNC |
2,454 |
|
Datasheet |
CBL | Bulk | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | PFP 400 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-400-4FT-S2-T5COAX CBL RP-SMA TO RP-TNC |
2,016 |
|
Datasheet |
CBL | Bulk | Active | RP-SMA to RP-TNC | RP-SMA Plug | Female | Free Hanging (In-Line) | - | RP-TNC Jack | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | PFP 400 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-400-4FT-N1-N1COAX CBL N-TYPE TO N-TYPE |
1,716 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | PFP 400 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-12-197-N1-S3COAX CBL SMA TO N-TYPE |
1,532 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 197.0" (5.0m) 16.4' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
336303-13-0250COAX CBL U.FL AMC TO SMA |
1,513 |
|
Datasheet |
- | Bag | Not For New Designs | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
CO-316SMAX200-002COAX CBL SMA TO SMA |
1,971 |
|
- |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Black | - | 200°C | - | - |
|
|
CBL-12-197-S1-T1COAX CBL SMA TO TNC |
4,316 |
|
Datasheet |
CBL | Bulk | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 197.0" (5.0m) 16.4' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
095-850-234-003COAX CBL BNC TO CABLE |
2,669 |
|
Datasheet |
- | Bag | Active | BNC to Cable | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 3.000" (76.20mm) | Hand Formable .085 | - | - | 50 Ohms | 4 GHz | Silver | - | - | - | - |
|

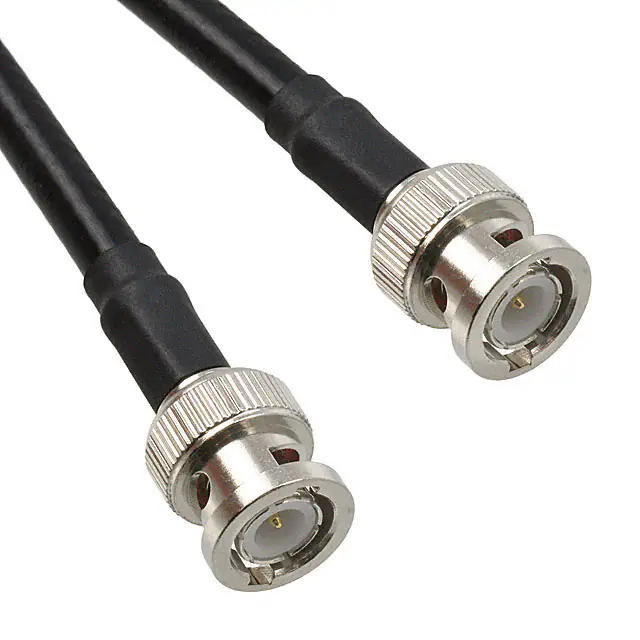

115101-22-48.00COAX CBL BNC TO BNC |
3,396 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 240 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
|
CBL-240-10FT-S1-XX10 FT 0 IN PFP240, SMA MALE & NO |
3,975 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CBL-240-10FT-S1-S1COAX CBL SMA TO SMA |
4,689 |
|
Datasheet |
CBL | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-10FT-S1-S4COAX CBL SMA TO SMA |
2,517 |
|
Datasheet |
CBL | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-10FT-S2-T1COAX CBL RP-SMA TO TNC |
1,519 |
|
Datasheet |
CBL | Bulk | Active | RP-SMA to TNC | RP-SMA Plug | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-10FT-N1-S2COAX CBL RP-SMA TO N-TYPE |
3,047 |
|
Datasheet |
CBL | Bulk | Active | RP-SMA to N-Type | RP-SMA Plug | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-10FT-N1-S4COAX CBL SMA TO N-TYPE |
1,676 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-10FT-N1-T4COAX CBL N-TYPE TO TNC |
2,239 |
|
Datasheet |
CBL | Bulk | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-10FT-N1-T1COAX CBL N-TYPE TO TNC |
1,168 |
|
Datasheet |
CBL | Bulk | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-10FT-N9-S1COAX CBL SMA TO N-TYPE |
2,126 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 120.0" (3.0m) 10.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
