Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBL-400-1M-N1-N1COAX CBL N-TYPE TO N-TYPE |
4,839 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | PFP 400 | - | - | - | - | Black | - | - | - | - |
|
|
336303-13-0100COAX CBL U.FL AMC TO SMA |
1,936 |
|
Datasheet |
- | Bag | Not For New Designs | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
095-850-201-006COAX CBL 1.0/2.3 TO BNC |
2,163 |
|
Datasheet |
- | Bag | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-179 | 75 Ohms | - | 75 Ohms | 4 GHz | Copper | - | - | - | - |
|
095-850-277-048COAX CBL BNC TO BNC |
4,006 |
|
Datasheet |
BNC | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 195 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | -40°C ~ 85°C | - | - |
|
095Z820-163-036COAX CBL SMA TO FAKRA III |
4,542 |
|
Datasheet |
- | Bag | Active | SMA to Fakra III | SMA Jack | Female | Free Hanging (In-Line) | - | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
|
CBL-400-1M-N1-S1COAX CBL SMA TO N-TYPE |
1,692 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | PFP 400 | - | - | - | - | Black | - | - | - | - |
|
|
135105-08-08.00COAX CBL SMA TO CABLE |
1,835 |
|
Datasheet |
- | Bulk | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 8.000" (203.20mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
095-902-527-024COAX CBL SMA TO N-TYPE |
3,101 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | - | - | - | - | - |
|
415-0010-012COAX CBL SMB MINI-SMB MINI |
1,002 |
|
Datasheet |
- | Bulk | Active | SMB Mini to SMB Mini | SMB Mini Plug | Female | Free Hanging (In-Line) | - | SMB Mini Plug | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-179 DS | 75 Ohms | 75 Ohms | 75 Ohms | 2 GHz | White | Shielded | - | - | - |
|
|
CBL-12-15FT-S2-S4COAX CBL RP-SMA TO SMA |
2,704 |
|
Datasheet |
CBL | Bulk | Active | RP-SMA to SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 180.0" (4.6m) 15.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-12-15FT-S1-S4COAX CBL SMA TO SMA |
1,516 |
|
Datasheet |
CBL | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 180.0" (4.6m) 15.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
336206-12-0200COAX CBL U.FL AMC TO RP-TNC |
2,468 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to RP-TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
336303-12-0100COAX CBL U.FL AMC TO SMA |
2,795 |
|
Datasheet |
- | Bulk | Not For New Designs | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
336306-14-0100COAX CBL U.FL AMC TO RP-SMA |
1,568 |
|
Datasheet |
- | Bag | Not For New Designs | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | - | Black | - | - | - | - |
|
095-850-266M075COAX CBL BNC TO BNC |
2,457 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|

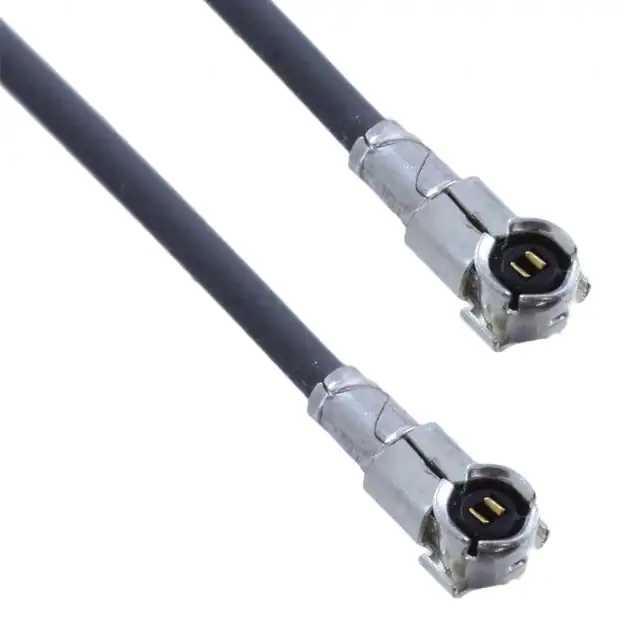

1189-06COAX CBL H.FL TO H.FL |
2,583 |
|
- |
- | Bulk | Obsolete | H.FL to H.FL | H.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | H.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 1.27mm OD Coaxial Cable | - | - | 50 Ohms | - | Gray | Shielded | - | - | - |
|
|
4846-C-24COAX CBL SMA TO SMA |
4,541 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58C | 50 Ohms | - | 50 Ohms | 4 GHz | Black | Shielded | -65°C ~ 165°C | - | - |
|
73069-BB-12COAX CBL SMA TO SMA |
1,959 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -55°C ~ 155°C | - | - |
|
|
0732307054CA TYPE N J STR TO SMA P STRRG58 |
3,173 |
|
- |
73230 | Bulk | Active | SMA to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
|
FMCA1007-6COAX CBL SMA TO HMCX |
4,988 |
|
- |
- | Bag | Active | SMA to HMCX | HMCX Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000" (152.40mm) | 0.81mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | - | -55°C ~ 125°C | - | - |
