Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

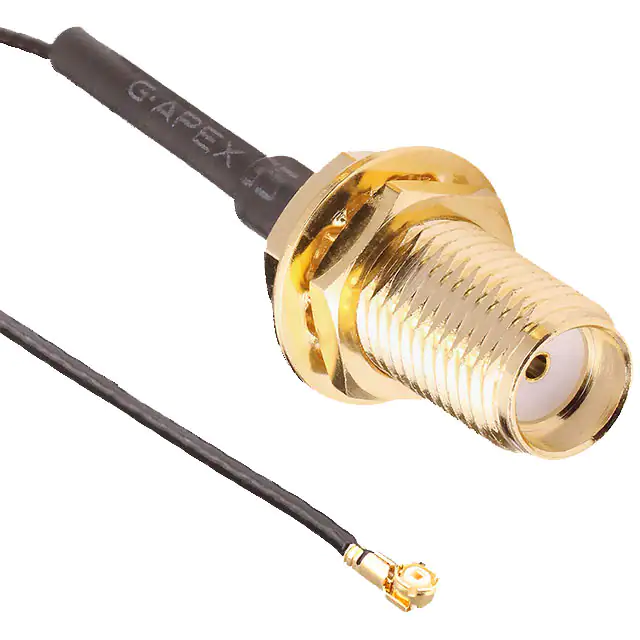

CSJ-SGFB-100-MHF3COAX CBL SMA TO W.FL, MHF3 |
1,425 |
|
Datasheet |
- | Bulk | Obsolete | SMA to W.FL, I-PEX MHF3 | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | W.FL, I-PEX MHF3 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
0897620476COAX CBL FAKRA TO CABLE |
1,020 |
|
- |
89762 | Bulk | Active | Fakra to Cable | Fakra Plug | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 54.0" (1.4m) 4.5' | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
FMCA1017-3COAX CBL RP-SMA TO UMCX |
3,823 |
|
- |
- | Bag | Active | RP-SMA to UMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | UMCX Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
FMCA1006-3COAX CBL SMA TO WMCX |
3,057 |
|
- |
- | Bag | Active | SMA to WMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | WMCX Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 0.81mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
CTL1FB-15COAX CBL BNC TO BNC |
2,815 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 180.0" (4.6m) 15.0' | - | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
|
CCF59B-6COAX CBL F-TYPE TO F-TYPE |
3,904 |
|
- |
- | Bag | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-59B | - | - | 75 Ohms | - | Black | - | - | - | - |
|
A-1PA-113-390B2COAX CBL U.FL AMC-U.FL AMC |
2,074 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 15.35" (390.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
A-1PA-137-050B2COAX CBL U.FL AMC-U.FL AMC |
1,662 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
JPLUS6T72COAX CBL 7/16 DIN TO 7/16 DIN |
1,088 |
|
- |
- | Bulk | Active | 7/16 DIN to 7/16 DIN | 7/16 Plug | Male | - | - | 7/16 Plug | Male | - | - | 72.0" (1.8m) 6.0' | RG-6 | 75 Ohms | - | 75 Ohms | - | Black | - | -40°C ~ 60°C | - | - |
|
|
WFL-2LPHF6-04N2TV-A-180COAX CBL W.FL TO W.FL |
3,455 |
|
- |
W.FL | Bulk | Obsolete | W.FL to W.FL | W.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | W.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.087" (180.00mm) | 0.81mm OD Coaxial Cable | 50 Ohms | - | - | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
CC59B-1.5COAX CBL BNC TO BNC |
1,013 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-59B | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
|
0897623651COAX CBL FAKRA TO CABLE |
1,698 |
|
- |
89762 | Bulk | Active | Fakra to Cable | Fakra Plug | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 55.1" (1.4m) 4.6' | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
CSJ-SGFB-200-MHF3COAX CBL SMA TO W.FL, MHF3 |
4,450 |
|
Datasheet |
- | Bulk | Obsolete | SMA to W.FL, I-PEX MHF3 | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | W.FL, I-PEX MHF3 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
0734193580COAX CBL SMB TO SMB |
4,160 |
|
- |
73419 | Bulk | Active | SMB to SMB | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-179 | 75 Ohms | - | 75 Ohms | - | - | - | - | - | - |
|

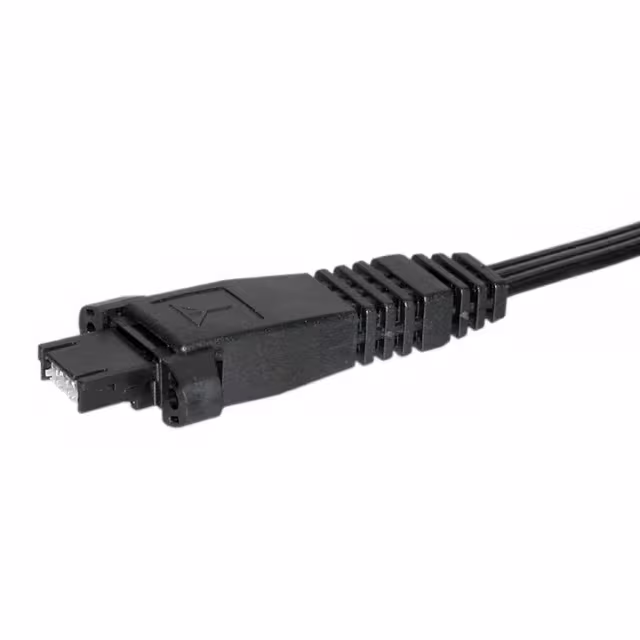

2053075-1COAX CBL QSL TO CABLE |
2,448 |
|
Datasheet |
- | Bulk | Obsolete | QSL to Cable | QSL Plug, 3 Port | - | Panel Mount | Flange | Cable (Flat) | - | - | - | 31.50" (800.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
0897619310COAX CBL MCX TO MCX |
2,762 |
|
- |
89761 | Bulk | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
0897622360COAX CBL BNC TO BNC |
1,465 |
|
- |
89762 | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
UFL-2LPVHF6-04N1TV-A-1000COAX CBL U.FL TO U.FL |
2,041 |
|
Datasheet |
U.FL | Bag | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | 0.81mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | White | - | -40°C ~ 90°C | - | - |
|
U.FL-2LP-068N1T-AC-(100)COAX CBL U.FL TO U.FL |
4,808 |
|
- |
U.FL | Bag | Obsolete | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | - | - | - |
|
|
CA-MCNMCN19COAX CBL N-TYPE TO MC |
4,920 |
|
- |
- | Bag | Active | N-Type to MC | N-Type Plug | Male | Free Hanging (In-Line) | - | MC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.000" (482.60mm) | LMR 100 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
