Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
U.FL-LP-066J1-A-(250)COAX CBL U.FL TO CABLE |
4,588 |
|
Datasheet |
U.FL | Bulk | Obsolete | U.FL (UMCC) to Cable | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 9.843" (250.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | - |
|
U.FL-LPHF6-068N2T-A-1000COAX CBL U.FL TO CABLE |
4,649 |
|
- |
U.FL | Bulk | Active | U.FL (UMCC) to Cable | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 39.4" (1.0m) 3.3' | 1.13mm OD Coaxial Cable | 50 Ohms | - | - | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
0897625581CA SMA J STR RP/ CMP 1.13 CABLE |
4,484 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
U.FL-2LPHF6-088N2T-A-400COAX CBL U.FL TO U.FL |
3,470 |
|
- |
U.FL | Bulk | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 15.75" (400.00mm) | 1.37mm OD Coaxial Cable | 50 Ohms | - | - | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
0897620910COAX CBL U.FL TO MMCX |
2,900 |
|
- |
89762 | Bulk | Active | U.FL (UMCC) to MMCX | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 8.000" (203.20mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | - | - | - | - | - | - |
|
U.FL-2LPHF6-088N1T-A-200COAX CBL U.FL TO U.FL |
3,091 |
|
Datasheet |
U.FL | Bag | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
U.FL-2LPHF6-066N1-A-600COAX CBL U.FL TO U.FL |
1,753 |
|
- |
U.FL | Bulk | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 23.62" (600.00mm) | 1.32mm OD Coaxial Cable | 50 Ohms | - | - | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
U.FL-LPHF6-088N1T-A-600COAX CBL U.FL TO CABLE |
2,495 |
|
- |
U.FL | Bulk | Active | U.FL (UMCC) to Cable | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 23.62" (600.00mm) | 1.37mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
-04N1-A-(xxxx).jpg)
|
U.FL-2LP(V)-04N1-A-(50)COAX CBL U.FL TO U.FL |
2,216 |
|
Datasheet |
U.FL | Bag | Obsolete | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
.jpg)
|
A-1PA-081-500B2COAX CBL U.FL AMC-U.FL AMC |
2,596 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
A-1PL-081-500B2COAX CBL U.FL AMC-U.FL AMC |
1,333 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
0732301301CA SMA J STR/ MCRF W/DIA 1.13 CA |
1,876 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
0897620911COAX CBL U.FL TO MMCX |
4,382 |
|
- |
89762 | Bulk | Active | U.FL (UMCC) to MMCX | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | - | - | - | - | - | - |
|
|
0897618623COAX CBL RP-SMA TO U.FL |
3,282 |
|
- |
89761 | Bulk | Active | RP-SMA to U.FL (UMCC) | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 2.756" (70.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | - | - | - | - | - | - |
|
|
CAB602RF-200-A-1CABLE ASSEMBLY I-PEX MHF I TO SM |
2,264 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 85°C | - | - |
|

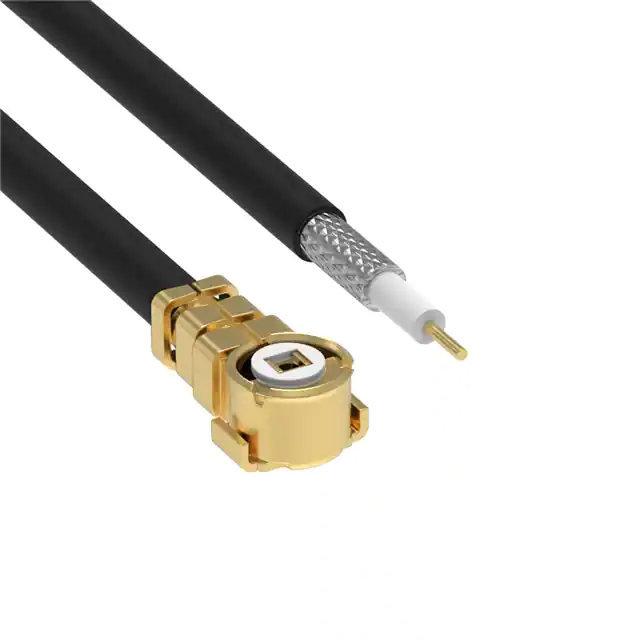

R302255003250COAX CBL MML TO CABLE |
4,477 |
|
Datasheet |
MML | Bulk | Active | MML to Cable | MML Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 9.843" (250.00mm) | - | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
R302255003300COAX CBL MML TO CABLE |
2,593 |
|
Datasheet |
MML | Bulk | Active | MML to Cable | MML Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 11.811" (300.00mm) | - | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
JPLUS6T36COAX CBL 7/16 DIN TO 7/16 DIN |
2,535 |
|
- |
- | Bulk | Active | 7/16 DIN to 7/16 DIN | 7/16 Plug | Male | - | - | 7/16 Plug | Male | - | - | 36.00" (914.40mm) | RG-6 | 75 Ohms | - | 75 Ohms | - | Black | - | -40°C ~ 60°C | - | - |
|
|
FMC0208174-06COAX CBL BNC TO SMA |
3,894 |
|
- |
- | Bag | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -65°C ~ 165°C | - | - |
|
|
U.FL-2LPHF6-066N1-A-700COAX CBL U.FL TO U.FL |
2,868 |
|
- |
U.FL | Bulk | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 27.56" (700.00mm) | 1.32mm OD Coaxial Cable | 50 Ohms | - | - | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
