Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WFL2-2LPHF6-04N1TV-A-300COAX CBL W.FL2 TO W.FL2 |
3,349 |
|
Datasheet |
W.FL2 | Bag | Last Time Buy | W.FL2 to W.FL2 | W.FL2 Plug, Right Angle | Female | Free Hanging (In-Line) | - | W.FL2 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | White | - | -40°C ~ 90°C | - | - |
|
A-1PA-137-200G2COAX CBL U.FL AMC-U.FL AMC |
3,219 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | - |
|
0734192811COAX CBL MCX TO MCX |
3,455 |
|
Datasheet |
73419 | Bulk | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 10.000" (254.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
WRL-09145COAX CBL MHF1 TO SMA |
2,621 |
|
- |
- | Bulk | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 4.000" (101.60mm) | 1.13mm OD Coaxial Cable | - | - | - | - | Black | - | - | - | - |
|
|
WRL-12861COAX CBL SMA TO SMA |
1,742 |
|
- |
- | Bulk | Obsolete | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | 17 GHz | Copper | - | - | - | - |
|
|
CABLE 161 RF-100-1CABLE ASSEMBLY I-PEX MHF I TO SM |
3,845 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | RG-178 | - | - | 50 Ohms | 3 GHz | Brown | - | -40°C ~ 85°C | - | - |
|
|
CABLE 162 RF-050-F1-1CABLE ASSEMBLY I-PEX MHF I TO SM |
4,999 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | RG-178 | - | - | 50 Ohms | 3 GHz | Brown | - | -40°C ~ 90°C | - | - |
|

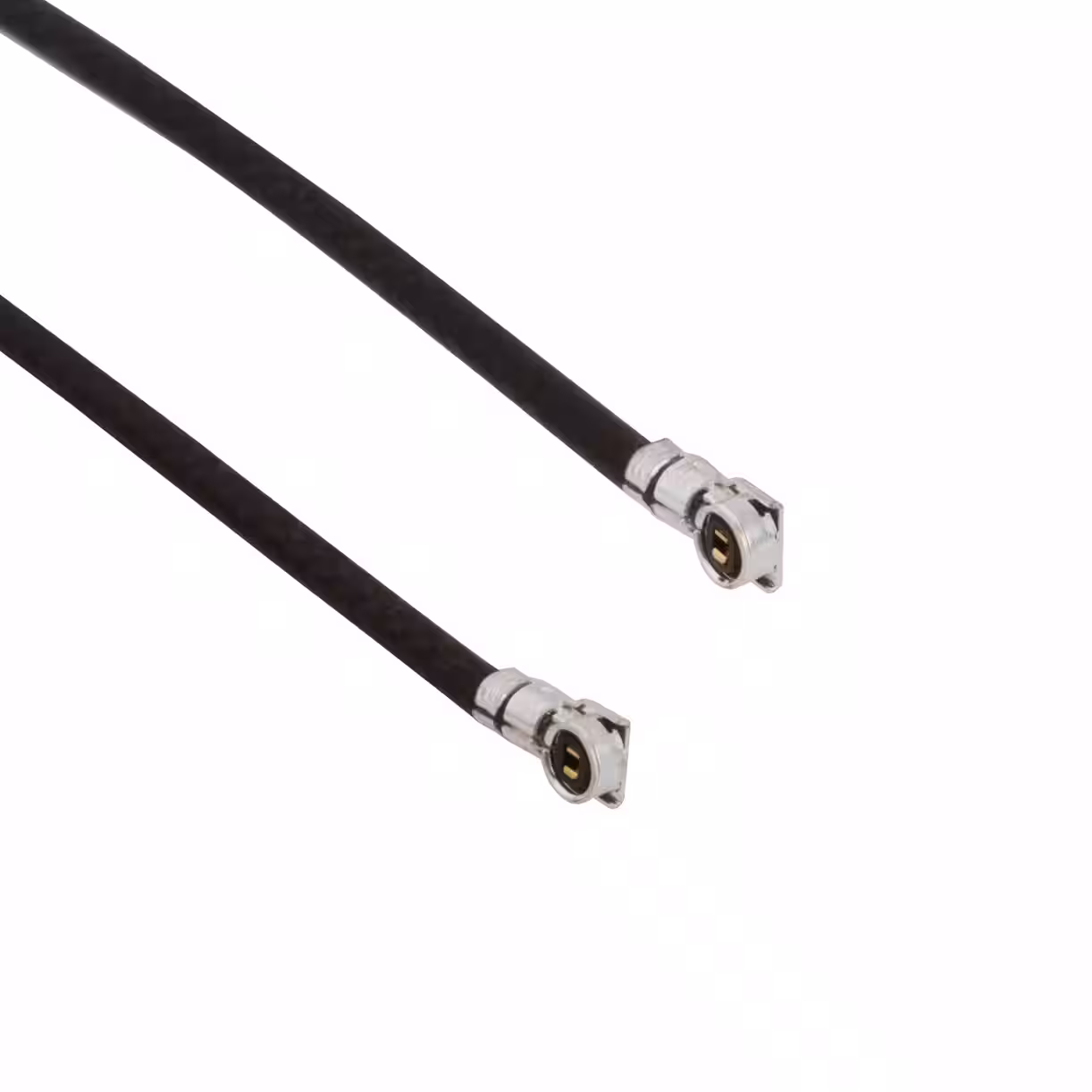

U-1PU-113-01KB2COAX CBL AMC4 TO AMC4 |
4,461 |
|
Datasheet |
USS | Bag | Active | AMC4 to AMC4 | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
0897619300COAX CBL SMA TO MMCX |
2,309 |
|
- |
89761 | Bulk | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
0897613415COAX CBL U.FL TO SMA |
1,164 |
|
Datasheet |
89761 | Bulk | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | - | Gray | - | - | - | - |
|
A-1PA-137-300B2COAX CBL U.FL AMC-U.FL AMC |
1,893 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
CABLE 161 RF-150-1CABLE ASSEMBLY I-PEX MHF I TO SM |
4,974 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | RG-178 | - | - | 50 Ohms | 3 GHz | Brown | - | -40°C ~ 85°C | - | - |
|
|
CBA-SMA-MCX1COAX CBL SMA TO MCX |
2,192 |
|
Datasheet |
- | Bulk | Active | SMA to MCX | SMA Jack | Female | Free Hanging (In-Line) | Bulkhead - Front Side Nut | MCX Plug | Male | Free Hanging (In-Line) | - | 3.937" (100.00mm) | RG-174 | - | - | 50 Ohms | - | Black | - | - | - | - |
|
|
0897626480COAX CBL SMA TO MMCX |
3,040 |
|
- |
89762 | Bulk | Active | SMA to MMCX | SMA Jack | Female | - | - | MMCX Plug, Right Angle | Male | - | - | - | RG-316 | - | - | - | - | - | - | - | - | - |
|
|
0897629982COAX CBL FAKRA TO FAKRA |
3,621 |
|
- |
89762 | Bulk | Active | Fakra to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 33.46" (850.00mm) | - | - | - | 50 Ohms | - | - | - | - | - | - |
|
|
0897622150COAX CBL SMA TO MMCX |
3,986 |
|
- |
89762 | Bulk | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.000" (127.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
CA-#DKCA1-152L3-DPDRP-12COAX CBL MCX TO MCX |
4,069 |
|
- |
- | Bag | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Brown | - | - | - | - |
|
|
CCF59-9COAX CBL F-TYPE TO F-TYPE |
3,388 |
|
- |
- | Bag | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 108.0" (2.7m) 9.0' | RG-59A | - | - | 75 Ohms | - | Black | - | - | - | - |
|
|
CC59A-BF-1COAX CBL BNC TO F-TYPE |
3,733 |
|
Datasheet |
- | Bag | Active | BNC to F-Type | BNC Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-59A | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
|
0897616130COAX CBL MCX TO MCX |
3,503 |
|
- |
89761 | Bulk | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 1.339" (34.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
