Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

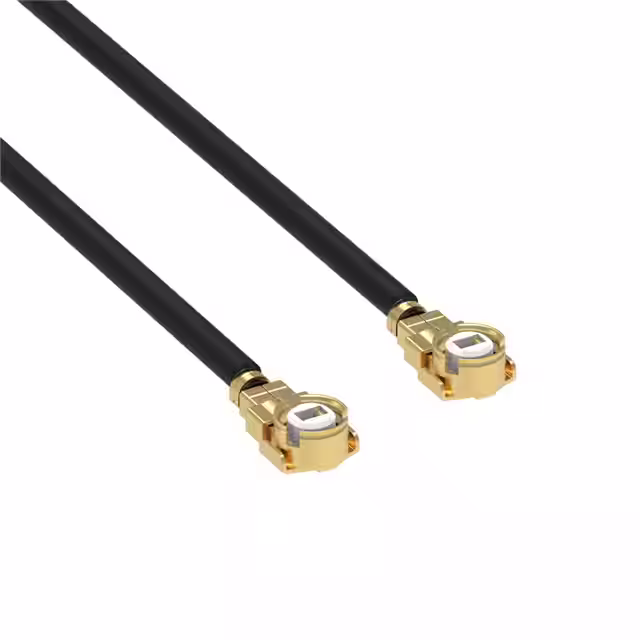

R302000000225COAX CBL MML TO MML |
3,003 |
|
Datasheet |
MML | Bulk | Active | MML to MML | MML Plug, Right Angle | Male | Free Hanging (In-Line) | - | MML Plug, Right Angle | Male | Free Hanging (In-Line) | - | 8.858" (225.00mm) | - | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
A-1PA-137-125B2COAX CBL U.FL AMC-U.FL AMC |
2,818 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 4.902" (124.50mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
0897622690CA, TNC J IP68 ST BH FM /U.FL RA |
4,081 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
0897629983COAX CBL FAKRA TO FAKRA |
2,952 |
|
- |
89762 | Bulk | Active | Fakra to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | - | - | - | 50 Ohms | - | - | - | - | - | - |
|
F6-6WCOAX CBL F-TYPE TO F-TYPE |
1,520 |
|
Datasheet |
F | Bulk | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-6 | 75 Ohms | - | 73 Ohms | - | White | Shielded | - | - | - |
|
|
0897627362COAX CBL FAKRA II TO FAKRA II |
1,743 |
|
- |
89762 | Bulk | Active | Fakra II to Fakra II | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 54.0" (1.4m) 4.5' | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
415-0089-150COAX CBL U.FL TO SMA |
4,781 |
|
Datasheet |
- | Bulk | Obsolete | U.FL (UMCC) to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | White | Shielded | -40°C ~ 90°C | - | - |
|
|
FMC1717174-12COAX CBL MCX TO MCX |
3,157 |
|
- |
- | Bag | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
MH113-MH1RP-MH1RP-0035COAX CBL U.FL MHF1 TO U.FL MHF1 |
1,556 |
|
Datasheet |
MH113 | Bulk | Active | U.FL (UMCC), I-PEX MHF1 to U.FL (UMCC), I-PEX MHF1 | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.378" (35.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | - |
|

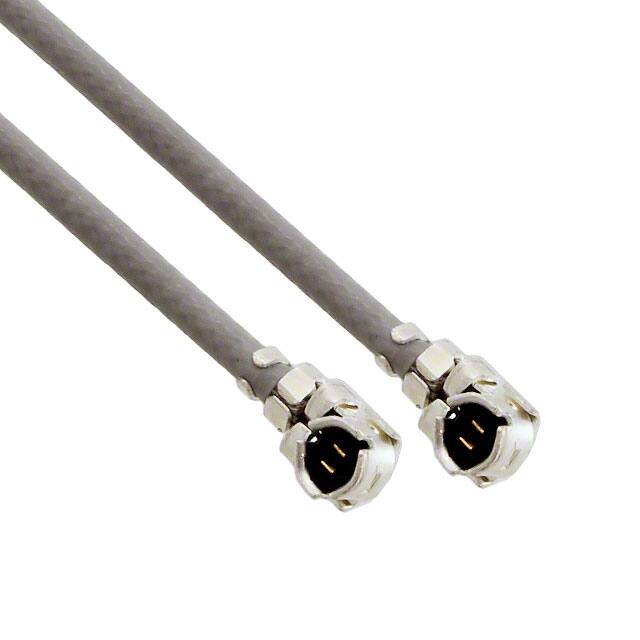

A-1PA-132-300G2COAX CBL U.FL AMC-U.FL AMC |
1,307 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | - |
|

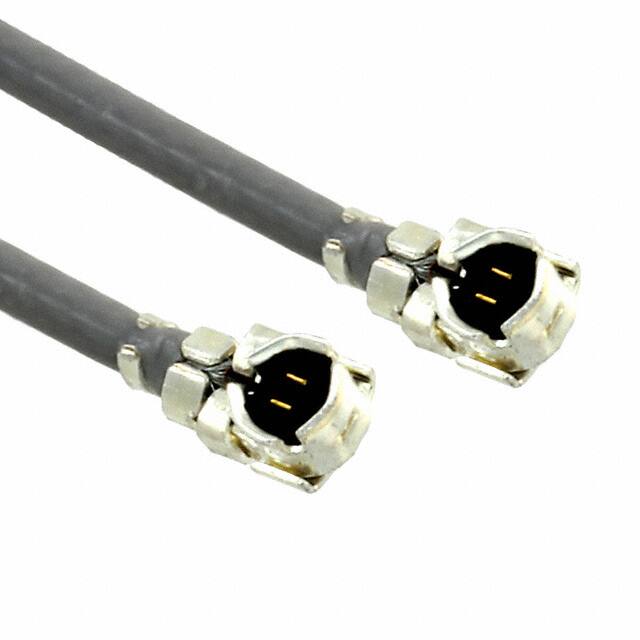

A-1PA-137-150G2COAX CBL U.FL AMC-U.FL AMC |
4,870 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | - |
|
|
A-1PA-137-153B2COAX CBL U.FL AMC-U.FL AMC |
3,428 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.024" (153.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
A-1PA-132-305B2COAX CBL U.FL AMC-U.FL AMC |
1,529 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
CABLE 138 RF-0050-2CABLE ASSEMBLY I-PEX MHF I TO RP |
4,363 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
|
2016692-2COAX CBL U.FL TO TNC |
4,230 |
|
Datasheet |
- | Box | Active | U.FL (UMCC) to TNC | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -45°C ~ 85°C | - | - |
|
|
0734194450COAX CBL U.FL TO FAKRA SMB |
3,062 |
|
- |
73419 | Bulk | Obsolete | U.FL (UMCC) to Fakra SMB | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | Fakra SMB Jack | Female | Free Hanging (In-Line) | - | 4.500" (114.30mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | - | - | - | - | - | - |
|
CSI-SAFB-100-UFFRCOAX CBL U.FL TO SMA |
1,621 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | - |
|
CSI-SAFE-100-UFFRCOAX CBL U.FL TO SMA |
1,918 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Rear Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | - |
|
|
CABLE 197 RF-050-4CABLE ASSEMBLY I-PEX MHF I TO RP |
3,726 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | RG-178 | - | - | 50 Ohms | 3 GHz | Brown | - | -40°C ~ 90°C | - | - |
|
|
CASMA-UFL-50COAX CBL U.FL TO SMA |
3,879 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 8.000" (203.20mm) | - | - | - | - | - | Gray | - | - | - | - |
