Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
U.FL-LPHF6-088N2T-A-700COAX CBL U.FL TO CABLE |
1,659 |
|
- |
U.FL | Bulk | Active | U.FL (UMCC) to Cable | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 27.56" (700.00mm) | 1.37mm OD Coaxial Cable | 50 Ohms | - | - | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
415-0085-250COAX CBL U.FL TO U.FL |
2,690 |
|
Datasheet |
UMC | Bulk | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
415-0087-250COAX CBL U.FL TO U.FL |
3,473 |
|
Datasheet |
UMC | Bulk | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
0734193970COAX CBL SMCI TO CABLE |
4,296 |
|
- |
73419 | Bulk | Active | SMCI to Cable | SMCI Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|

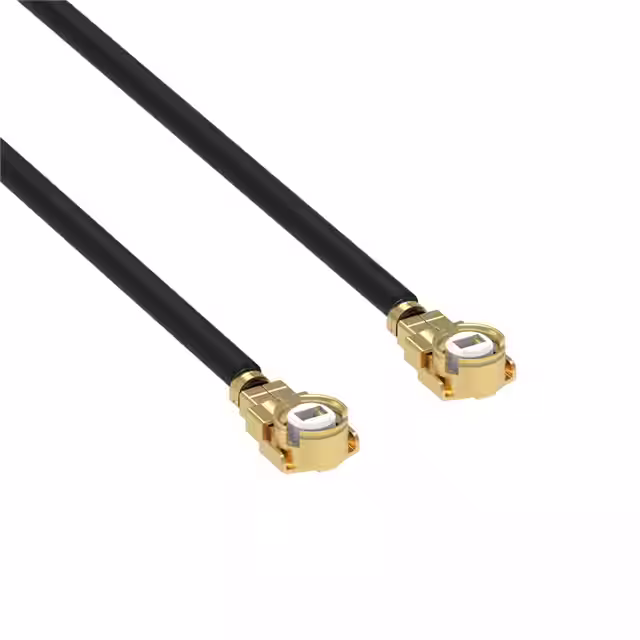

R302205000COAX CBL MML TO MML |
2,060 |
|
Datasheet |
MML | Bulk | Active | MML to MML | MML Plug, Right Angle | Female | Free Hanging (In-Line) | - | MML Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | - | - | - | 50 Ohms | 3 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
0897620479COAX CBL FAKRA TO CABLE |
4,413 |
|
- |
89762 | Bulk | Active | Fakra to Cable | Fakra Plug | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 39.4" (1.0m) 3.3' | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
0897628210CA SMB FAKRA IP67 J STR/ MCRF 1. |
2,886 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
0897620912COAX CBL U.FL TO MMCX |
4,192 |
|
- |
89762 | Bulk | Active | U.FL (UMCC) to MMCX | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 20.00" (508.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | - | - | - | - | - | - |
|
W.FL-2LPG-062N2D-A-(35)COAX CBL W.FL TO W.FL |
3,301 |
|
Datasheet |
W.FL | Bag | Obsolete | W.FL to W.FL | W.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | W.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.378" (35.00mm) | 1.00mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
W.FL-2LPG-062N2D-A-(70)COAX CBL W.FL TO W.FL |
2,929 |
|
Datasheet |
W.FL | Bag | Obsolete | W.FL to W.FL | W.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | W.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | 2.756" (70.00mm) | 1.00mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
A-1PA-113-095B2COAX CBL U.FL AMC-U.FL AMC |
3,741 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.740" (95.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
U.FL-2LPHF6-088N1T-A-600COAX CBL U.FL TO U.FL |
4,921 |
|
- |
U.FL | Bulk | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 23.62" (600.00mm) | 1.37mm OD Coaxial Cable | 50 Ohms | - | - | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
U.FL-2LPHF6-088N2T-A-600COAX CBL U.FL TO U.FL |
4,383 |
|
- |
U.FL | Bulk | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 23.62" (600.00mm) | 1.37mm OD Coaxial Cable | 50 Ohms | - | - | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
W.FL-2LPG-062N2D-A-(100)COAX CBL W.FL TO W.FL |
2,152 |
|
Datasheet |
W.FL | Bag | Obsolete | W.FL to W.FL | W.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | W.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.00mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
CAB603RF-200-A-1CABLE ASSEMBLY I-PEX MHF I TO SM |
4,610 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 85°C | - | - |
|
|
U.FL-2LPHF6-088N1T-A-400COAX CBL U.FL TO U.FL |
3,594 |
|
- |
U.FL | Bulk | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 15.75" (400.00mm) | 1.37mm OD Coaxial Cable | 50 Ohms | - | - | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
|
415-0085-300COAX CBL U.FL TO U.FL |
3,143 |
|
Datasheet |
UMC | Bulk | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
0897623650COAX CBL FAKRA TO CABLE |
3,931 |
|
- |
89762 | Bulk | Active | Fakra to Cable | Fakra Plug | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 39.4" (1.0m) 3.3' | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
JPLUS6T36SECOAX CBL 7/16 DIN TO 7/16 DIN |
1,227 |
|
- |
- | Bulk | Active | 7/16 DIN to 7/16 DIN | 7/16 Plug | Male | - | - | 7/16 Plug | Male | - | - | 36.00" (914.40mm) | RG-6 | 75 Ohms | - | 75 Ohms | - | Black | - | -40°C ~ 60°C | - | - |
|
U-1PU-113-400B2COAX CBL AMC4 TO AMC4 |
1,344 |
|
Datasheet |
USS | Bag | Active | AMC4 to AMC4 | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 15.75" (400.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
