Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0734193130COAX CBL MCX TO MMCX |
2,037 |
|
- |
73419 | Bulk | Active | MCX to MMCX | MCX Plug | Male | Free Hanging (In-Line) | - | MMCX Jack, Right Angle | Female | Free Hanging (In-Line) | - | 4.750" (120.65mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
0897629521CA SMA J STR/ MCRF 1.13 CABLE |
1,156 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
U.FL-LP-066J2-A-(400)COAX CBL U.FL TO CABLE |
2,668 |
|
Datasheet |
U.FL | Bulk | Obsolete | U.FL (UMCC) to Cable | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 15.75" (400.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
CCF59B-1COAX CBL F-TYPE TO F-TYPE |
4,871 |
|
- |
- | Bag | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-59B | - | - | 75 Ohms | - | Black | - | - | - | - |
|
|
2032439-3COAX CBL U.FL TO SMA |
3,353 |
|
Datasheet |
- | Box | Active | U.FL (UMCC) to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
CTL1FB-5COAX CBL BNC TO BNC |
1,153 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
U.FL-2LPHF6-088N1T-A-700COAX CBL U.FL TO U.FL |
2,705 |
|
- |
U.FL | Bulk | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 27.56" (700.00mm) | 1.37mm OD Coaxial Cable | 50 Ohms | - | - | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
U.FL-2LPHF6-088N2T-A-700COAX CBL U.FL TO U.FL |
1,066 |
|
- |
U.FL | Bulk | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 27.56" (700.00mm) | 1.37mm OD Coaxial Cable | 50 Ohms | - | - | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
A-1PA-113-150G2COAX CBL U.FL AMC-U.FL AMC |
4,217 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | - |
|
F6-3WCOAX CBL F-TYPE TO F-TYPE |
4,887 |
|
Datasheet |
F | Bulk | Obsolete | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-6 | 75 Ohms | - | 73 Ohms | - | White | Shielded | - | - | - |
|

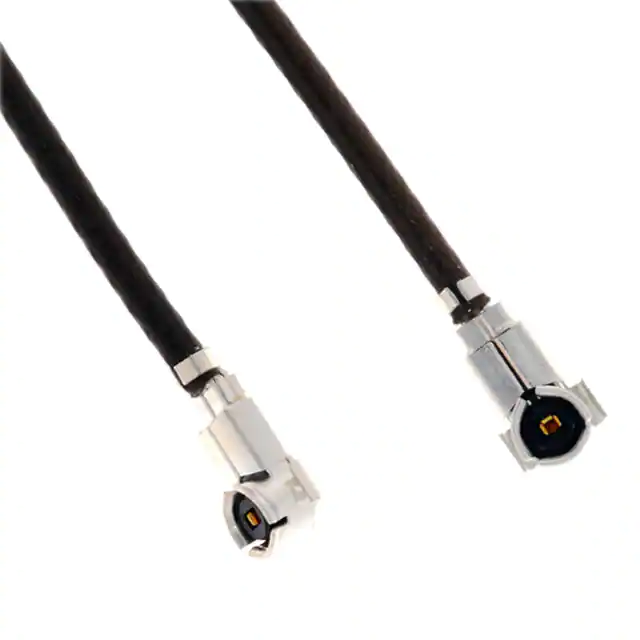

W.FL-2LPG-062N2D-A-(200)COAX CBL W.FL TO W.FL |
2,783 |
|
Datasheet |
W.FL | Bag | Obsolete | W.FL to W.FL | W.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | W.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.00mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
0897612360COAX CBL U.FL TO MMCX |
2,257 |
|
- |
89761 | Bulk | Active | U.FL (UMCC) to MMCX | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Jack | Female | Free Hanging (In-Line) | - | 3.150" (80.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | - | - | - | - | - | - |
|
|
CA#DKCA1-305L5-APAJCOAX CBL SMA TO SMA |
1,936 |
|
- |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
|
0897626510COAX CBL SSMCX TO SSMCX |
1,911 |
|
- |
89762 | Bulk | Active | SSMCX to SSMCX | SSMCX Plug | Male | - | - | SSMCX Plug | Male | - | - | - | RG-178 | - | - | - | - | - | - | - | - | - |
|
CSJ-RGFB-100-MHF3COAX CBL RP-SMA TO W.FL MHF3 |
2,745 |
|
Datasheet |
- | Bulk | Active | RP-SMA to W.FL, I-PEX MHF3 | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | W.FL, I-PEX MHF3 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
0897621490CA TNC J IP68 ST BK FM/U.FL RA P |
2,991 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
0897621500CA TNC-RP J IP68 ST BK FM /U.FL |
1,724 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
A-1PA-113-204B2COAX CBL U.FL AMC-U.FL AMC |
2,647 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 8.032" (204.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
A-1PA-113-200G2COAX CBL U.FL AMC-U.FL AMC |
3,061 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | - |
|
|
0897620913COAX CBL U.FL TO MMCX |
2,367 |
|
- |
89762 | Bulk | Active | U.FL (UMCC) to MMCX | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.02" (610.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | - | - | - | - | - | - |
