Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-295-048COAX CBL TNC TO TNC |
4,390 |
|
Datasheet |
TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
095-850-227-072COAX CBL TNC TO TNC |
1,658 |
|
Datasheet |
- | Bag | Active | TNC to TNC | TNC Plug | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | LMR 400 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | Shielded | - | - | - |
|

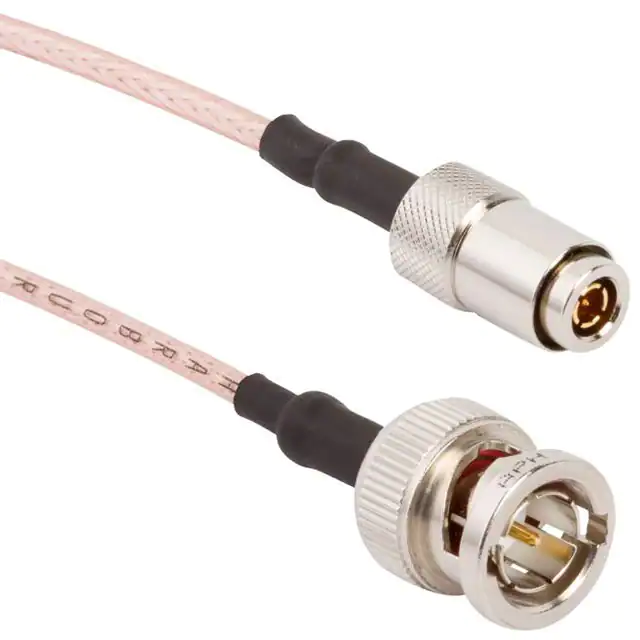

095-850-201M400COAX CBL 1.0/2.3 TO BNC |
4,869 |
|
Datasheet |
- | Bag | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 157.5" (4.0m) 13.1' | RG-179 | 75 Ohms | - | 75 Ohms | 4 GHz | Copper | - | - | - | - |
|
095-850-230-072COAX CBL RP-TNC TO RP-TNC |
1,488 |
|
Datasheet |
- | Bag | Active | RP-TNC to RP-TNC | RP-TNC Plug | Female | Free Hanging (In-Line) | - | RP-TNC Jack | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | LMR 400 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | Shielded | - | - | - |
|

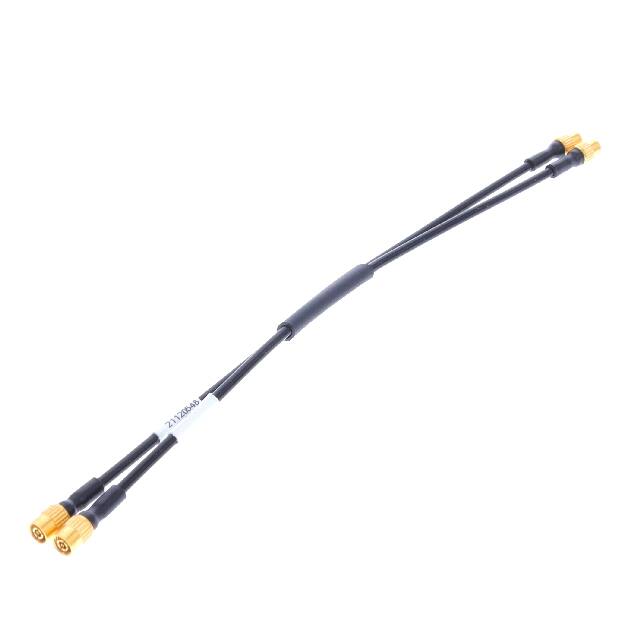

TM28THSSTSSTS16-PCOAX CBL SSMP TO SSMP |
1,513 |
|
- |
- | Bag | Active | SSMP to SSMP | SSMP Socket (2) | Female | Free Hanging (In-Line) | - | SSMP Socket (2) | Female | Free Hanging (In-Line) | - | 6.299" (160.00mm) | 0.052" OD Coaxial Cable | - | - | - | 65 GHz | Black | - | - | - | - |
|
095-850-228-024COAX CBL TNC TO TNC |
4,286 |
|
Datasheet |
- | Bag | Active | TNC to TNC | TNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 400 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | Shielded | - | - | - |
|
095-850-214-036COAX CBL HD-BNC TO HD-BNC |
1,795 |
|
Datasheet |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
095-725-128-004COAX CBL SMPM TO SMPM |
3,050 |
|
Datasheet |
SPM | Bag | Active | SMPM to SMPM | SMPM Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMPM Plug | Male | Free Hanging (In-Line) | - | 4.000" (101.60mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
095-850-158-024COAX CBL HD-BNC TO HD-BNC |
4,442 |
|
Datasheet |
- | Bulk | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | Belden 1855A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
095-902-481M100COAX CBL SMA TO SMA |
1,272 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | LMR 240 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
135101-R2-48.00COAX CBL SMA TO SMA |
1,502 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | Hand Formable .141 | - | - | 50 Ohms | 12.4 GHz | Copper | - | - | - | - |
|
|
095-850-306-240COAX CBL RP-TNC TO TNC |
3,514 |
|
Datasheet |
- | Bag | Active | RP-TNC to TNC | RP-TNC Plug | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | LMR 240 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
095-850-214M100COAX CBL HD-BNC TO HD-BNC |
1,704 |
|
Datasheet |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
095-725-117M075COAX CBL SMP TO SMP |
1,337 |
|
Datasheet |
- | Bulk | Active | SMP to SMP | SMP Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Female | Free Hanging (In-Line) | - | 29.53" (750.00mm) | 0.085" Semi-Rigid Cable | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|

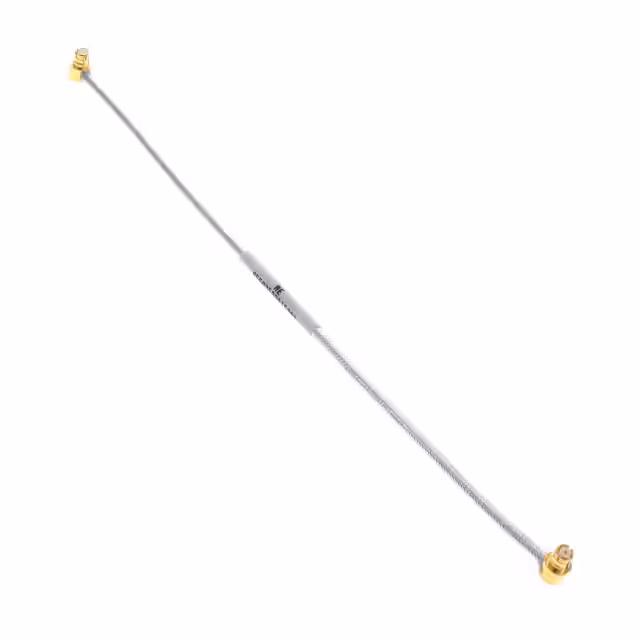

65503520815301COAX CBL SMP TO SMP |
4,588 |
|
Datasheet |
WR-CXASY | Bag | Active | SMP to SMP | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .085 | - | - | 50 Ohms | 18 GHz | Copper | Shielded | -65°C ~ 165°C | - | - |
|
175101-07-M0.50COAX CBL N-TYPE TO N-TYPE |
2,154 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-142 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
|
095-850-306-120COAX CBL RP-TNC TO TNC |
4,542 |
|
Datasheet |
- | Bag | Active | RP-TNC to TNC | RP-TNC Plug | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | LMR 240 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
175101-10-M1.50COAX CBL N-TYPE TO N-TYPE |
2,660 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | LMR 400 | 50 Ohms | - | 50 Ohms | 5.8 GHz | Black | Shielded | - | - | - |
|
|
095-850-228M100COAX CBL TNC TO TNC |
4,075 |
|
Datasheet |
- | Bag | Active | TNC to TNC | TNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | LMR 400 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | Shielded | - | - | - |
|
095-850-186-072COAX CBL BNC TO BNC |
4,642 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
