Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-185-012COAX CBL HD-BNC TO HD-BNC |
1,278 |
|
Datasheet |
- | Bulk | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
095-902-449-003COAX CBL SMA TO SMA |
2,417 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | Hand Formable .085 | - | - | 50 Ohms | 18 GHz | Gray | - | - | - | - |
|
135110-07-24.00COAX CBL SMA TO SMA |
2,593 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-142 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
095-902-449-010COAX CBL SMA TO SMA |
3,682 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 10.000" (254.00mm) | Hand Formable .085 | - | - | 50 Ohms | 18 GHz | Gray | - | - | - | - |
|
175101-22-12.00COAX CBL N-TYPE TO N-TYPE |
2,275 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 240 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
115104-15-06.00COAX CBL BNC TO BNC |
3,869 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-59 | 75 Ohms | - | 75 Ohms | - | Black | Shielded | - | - | - |
|
|
095-902-449-008COAX CBL SMA TO SMA |
3,430 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 8.000" (203.20mm) | Hand Formable .085 | - | - | 50 Ohms | 18 GHz | Gray | - | - | - | - |
|
115104-15-18.00COAX CBL BNC TO BNC |
3,761 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-59 | 75 Ohms | - | 75 Ohms | - | Black | Shielded | - | - | - |
|
415-0082-005COAX CBL SMA TO SMA |
1,258 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 5.000" (127.00mm) | Hand Formable .141 | - | 50 Ohms | 50 Ohms | 18 GHz | Gray | Shielded | - | - | - |
|
|
095-902-450-008COAX CBL SMA TO SMA |
4,751 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 8.000" (203.20mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Gray | - | - | - | - |
|

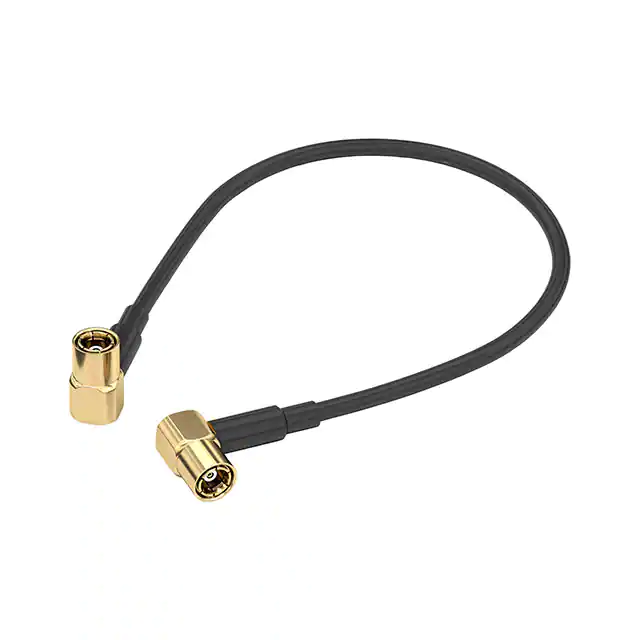

65502910315301COAX CBL SMB TO SMB |
4,378 |
|
Datasheet |
WR-CXASY | Bag | Active | SMB to SMB | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
PX0416/3M00COAX CBL SMB TO CABLE |
3,288 |
|
Datasheet |
Buccaneer® | Box | Active | SMB to Cable | SMB Plug | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 118.1" (3.0m) 9.8' | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
|
RF174-01SP1-06BJ2-0610COAX CBL N-TYPE TO SMA |
4,103 |
|
Datasheet |
RF174 | Bag | Active | N-Type to SMA | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 24.02" (610.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
|
FL141-12NM+COAX CBL N-TYPE TO N-TYPE |
4,176 |
|
Datasheet |
FL141 | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
095-850-294-012COAX CBL TNC TO TNC |
2,139 |
|
Datasheet |
TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
095-850-226-012COAX CBL TNC TO TNC |
4,640 |
|
Datasheet |
- | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 400 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
095-850-229-024COAX CBL RP-TNC TO RP-TNC |
4,359 |
|
Datasheet |
- | Bag | Active | RP-TNC to RP-TNC | RP-TNC Jack | Male | Free Hanging (In-Line) | - | RP-TNC Jack | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 400 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | Shielded | - | - | - |
|
095-902-450-010COAX CBL SMA TO SMA |
1,418 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 10.000" (254.00mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Gray | - | - | - | - |
|
|
095-902-451-007COAX CBL SMA TO SMA |
2,539 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 7.000" (177.80mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | - | - | - |
|
415-0027-024COAX CBL SMA TO SMA |
1,346 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Gray | Shielded | - | - | - |
