Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-193M050COAX CBL BNC TO HD-BNC |
4,835 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
CA-FJFJ-ZZ00450WPCOAX CBL FAKRA TO FAKRA |
4,651 |
|
Datasheet |
CA | Bag | Active | Fakra to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | RG-316 | 50 Ohms | - | - | - | Brown | - | - | - | - |
|
095-850-294-036COAX CBL TNC TO TNC |
3,134 |
|
Datasheet |
TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
65502910415301COAX CBL SMB TO SMB |
4,289 |
|
Datasheet |
WR-CXASY | Bag | Active | SMB to SMB | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|
175101-22-24.00COAX CBL N-TYPE TO N-TYPE |
1,198 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 240 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
|
RF174-05SP3-06BJ2-0305COAX CBL N-TYPE TO TNC |
1,378 |
|
Datasheet |
RF174 | Bag | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 12.01" (305.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
|
RF316-05SP3-06BJ2-0305COAX CBL N-TYPE TO TNC |
2,712 |
|
Datasheet |
RF316 | Bag | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 12.01" (305.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|
095FPZFPZSGM500COAX CBL FAKRA TO FAKRA |
2,468 |
|
Datasheet |
- | Bag | Active | Fakra to Fakra | Fakra II (Gen 2.0) Plug | Male | Free Hanging (In-Line) | - | Fakra II (Gen 2.0) Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | Z Code | -40°C ~ 85°C | - | - |
|
095-850-226-024COAX CBL TNC TO TNC |
2,516 |
|
Datasheet |
- | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 400 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
65501510515301COAX CBL SMA TO SMA |
3,085 |
|
Datasheet |
WR-CXASY | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|
|
095-820-197-120COAX CBL RP-TNC TO FAKRA III |
1,738 |
|
Datasheet |
- | Bag | Active | RP-TNC to Fakra III | RP-TNC Plug | Female | Free Hanging (In-Line) | - | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | LMR 195 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|

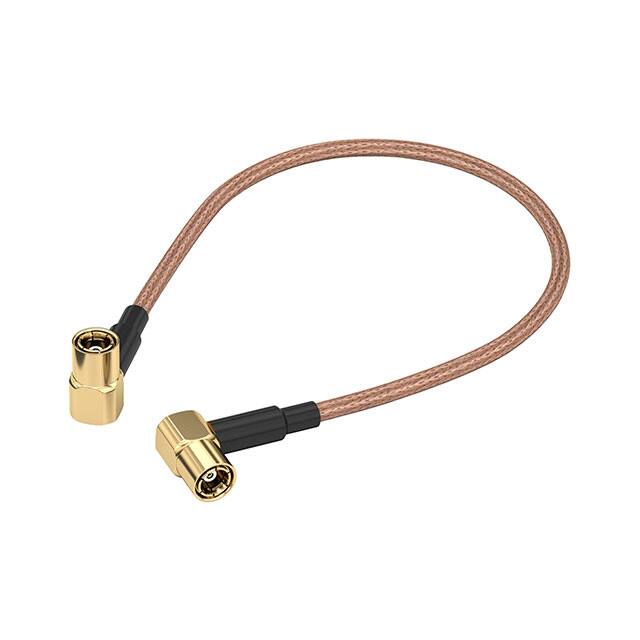

65502910515301COAX CBL SMB TO SMB |
1,948 |
|
Datasheet |
WR-CXASY | Bag | Active | SMB to SMB | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|
135101-R2-M0.75COAX CBL SMA TO SMA |
2,180 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | Hand Formable .141 | - | - | 50 Ohms | 12.4 GHz | Copper | - | - | - | - |
|
095-850-230-024COAX CBL RP-TNC TO RP-TNC |
1,122 |
|
Datasheet |
- | Bag | Active | RP-TNC to RP-TNC | RP-TNC Plug | Female | Free Hanging (In-Line) | - | RP-TNC Jack | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 400 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | Shielded | - | - | - |
|
415-0081-MM750COAX CBL SMA TO SMA |
2,902 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | Hand Formable .086 | - | 50 Ohms | 50 Ohms | 18 GHz | Gray | Shielded | - | - | - |
|

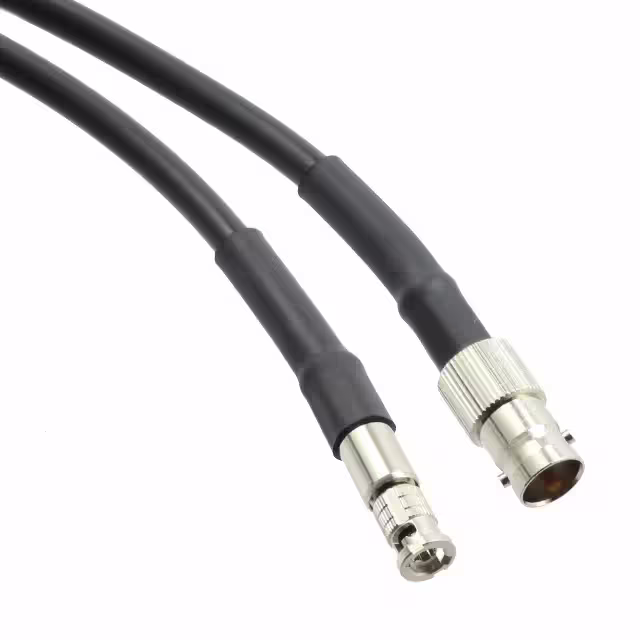

095-850-215-024COAX CBL BNC TO HD-BNC |
4,510 |
|
Datasheet |
- | Bulk | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | Belden 4505R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
|
095-820-197-240COAX CBL RP-TNC TO FAKRA III |
4,098 |
|
Datasheet |
- | Bag | Active | RP-TNC to Fakra III | RP-TNC Plug | Female | Free Hanging (In-Line) | - | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | LMR 195 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
095-850-186-036COAX CBL BNC TO BNC |
2,277 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
|
095-850-239-012COAX CBL BNC TO HD-BNC |
3,258 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 1855A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
095-850-230M100COAX CBL RP-TNC TO RP-TNC |
3,315 |
|
Datasheet |
- | Bag | Active | RP-TNC to RP-TNC | RP-TNC Plug | Female | Free Hanging (In-Line) | - | RP-TNC Jack | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | LMR 400 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | Shielded | - | - | - |
