Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-725-115-060COAX CBL SMPM TO SMPM |
1,481 |
|
Datasheet |
- | Bag | Active | SMPM to SMPM | SMPM Plug | Female | Free Hanging (In-Line) | - | SMPM Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Gray | - | - | - | - |
|
095-850-214-048COAX CBL HD-BNC TO HD-BNC |
4,865 |
|
Datasheet |
- | Bulk | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
|
095-725-128-012COAX CBL SMPM TO SMPM |
3,557 |
|
Datasheet |
SPM | Bag | Active | SMPM to SMPM | SMPM Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMPM Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
095-850-228-072COAX CBL TNC TO TNC |
2,836 |
|
Datasheet |
- | Bag | Active | TNC to TNC | TNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | LMR 400 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | Shielded | - | - | - |
|

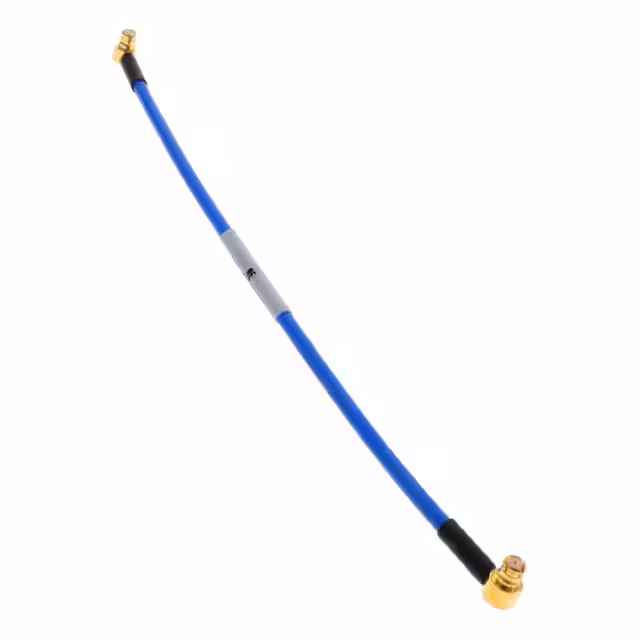

65503521215301COAX CBL SMP TO SMP |
2,219 |
|
Datasheet |
WR-CXASY | Bag | Active | SMP to SMP | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.085" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | - | Shielded | -55°C ~ 165°C | - | - |
|
095-909-189M100COAX CBL RP-TNC TO N-TYPE |
3,100 |
|
Datasheet |
- | Bag | Active | RP-TNC to N-Type | RP-TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | LMR 240 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -65°C ~ 165°C | - | - |
|

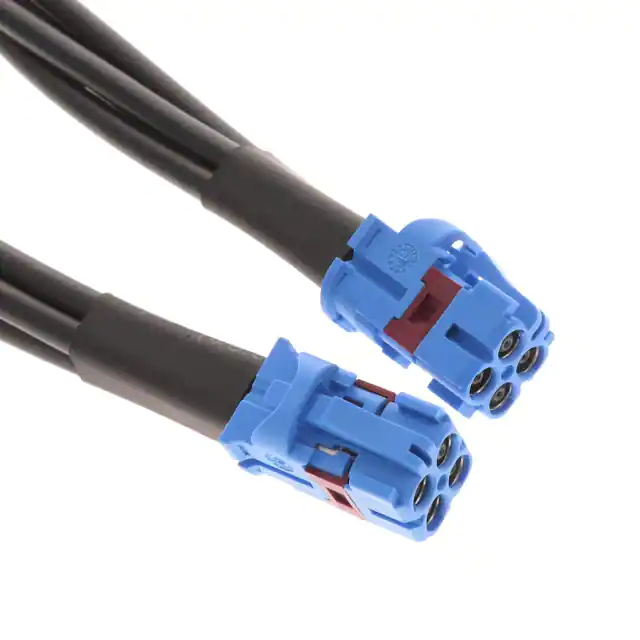

CA-BM04CJ-BM04CJ-3.3COAX CBL MINI FAKRA-MINI FAKRA |
3,104 |
|
Datasheet |
CA | Bag | Active | Mini Fakra to Mini Fakra | Fakra II (Gen 2.0) Mini Plug | Male | Free Hanging (In-Line) | - | Fakra II (Gen 2.0) Mini Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | 0.130" Flexible Cable | 50 Ohms | - | - | - | Black | Shielded | -40°C ~ 105°C | - | - |
|

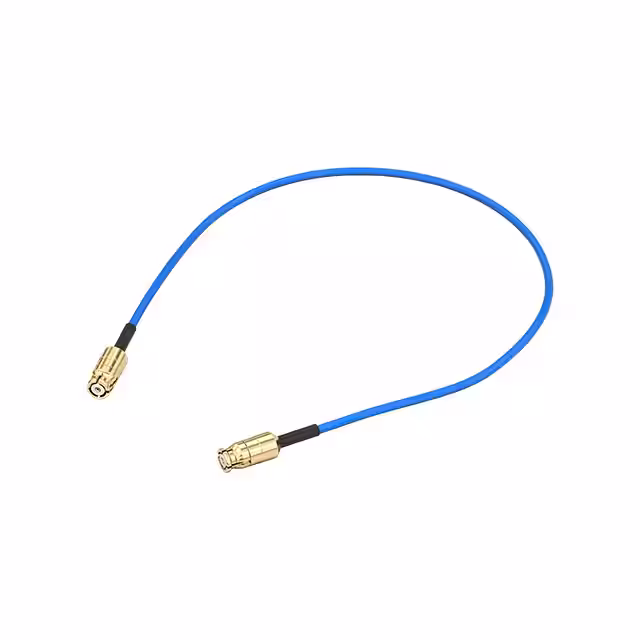

65503321115301COAX CBL SMP TO SMP |
2,057 |
|
Datasheet |
WR-CXASY | Bag | Active | SMP to SMP | SMP Jack | Female | Free Hanging (In-Line) | - | SMP Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
|
TM7SM8FS8FS031CCOAX CBL 1.85MM TO 1.85MM |
4,717 |
|
Datasheet |
- | Bag | Active | 1.85mm to 1.85mm | 1.85mm Jack | Female | Free Hanging (In-Line) | - | 1.85mm Jack | Female | Free Hanging (In-Line) | - | 1.200" (30.48mm) | 0.078" OD Coaxial Cable | - | - | 50 Ohms | 40 GHz | Teal | - | -50°C ~ 105°C | - | - |
|
115101-20-M30.0COAX CBL BNC TO BNC |
2,685 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 1181.1" (30.0m) 98.4' | RG-59 | 75 Ohms | - | 75 Ohms | - | Black | - | - | - | - |
|
|
781887-01COAX CBL BNC TO BNC |
4,540 |
|
- |
- | Box | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | - | - | 50 Ohms | - | Black | - | - | - | - |
|
|
TM7SSSTSSTS016C-PCOAX CBL SSMP TO SSMP |
1,163 |
|
Datasheet |
- | Bag | Active | SSMP to SSMP | SSMP Socket (2) | Female | Free Hanging (In-Line) | - | SSMP Socket (2) | Female | Free Hanging (In-Line) | - | 6.299" (160.00mm) | 0.078" OD Coaxial Cable | - | - | - | 65 GHz | Teal | - | - | - | - |
|
NANOBEND 2SR-6SMP(F) TO SMP(F) |
1,410 |
|
- |
NANOBEND | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

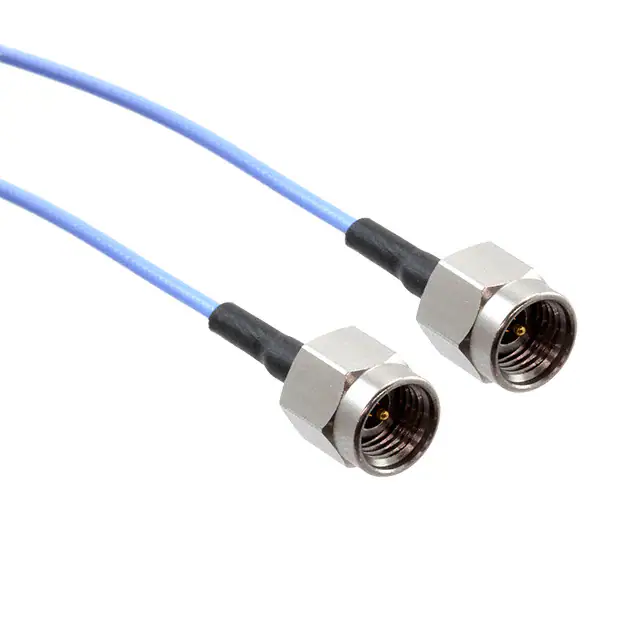

0897621582COAX CBL 2.92MM TO 2.92MM |
2,710 |
|
Datasheet |
89762 | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 1.42mm OD Coaxial Cable | - | - | 50 Ohms | - | Blue | - | -65°C ~ 165°C | - | - |
|
|
TM4SSSTSSTS031C-PCOAX CBL SSMP TO SSMP |
3,722 |
|
Datasheet |
- | Bag | Active | SSMP to SSMP | SSMP Socket (2) | Female | Free Hanging (In-Line) | - | SSMP Socket (2) | Female | Free Hanging (In-Line) | - | 12.20" (310.00mm) | 0.047" Semi-Rigid Cable | - | - | - | 65 GHz | Teal | - | - | - | - |
|
ASMA2000C058L13COAX CBL RP-SMA TO SMA |
3,646 |
|
- |
- | Bulk | Active | RP-SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 787.4" (20.0m) 65.6' | LLC200A | - | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|

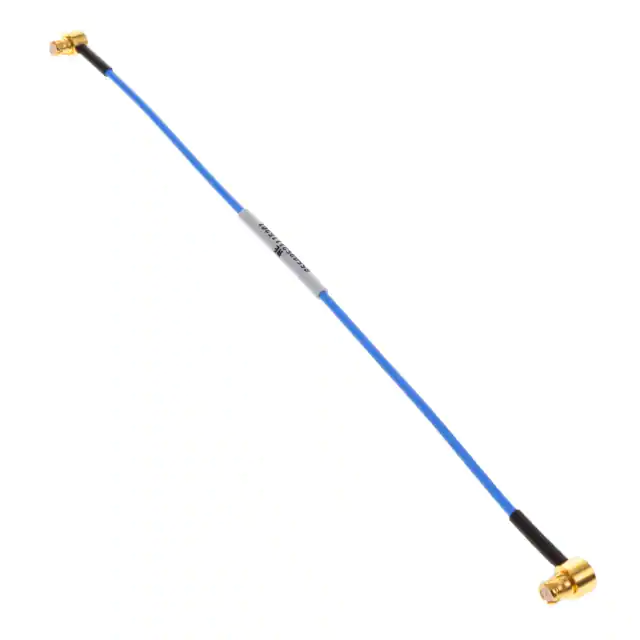

65503521115301COAX CBL SMP TO SMP |
1,560 |
|
Datasheet |
WR-CXASY | Bag | Active | SMP to SMP | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | - | Shielded | -65°C ~ 165°C | - | - |
|
|
TM7SSSTSSTS031C-PCOAX CBL SSMP TO SSMP |
4,578 |
|
Datasheet |
- | Bag | Active | SSMP to SSMP | SSMP Socket (2) | Female | Free Hanging (In-Line) | - | SSMP Socket (2) | Female | Free Hanging (In-Line) | - | 12.20" (310.00mm) | 0.078" OD Coaxial Cable | - | - | - | 65 GHz | Teal | - | - | - | - |
|
TM28THSSTSSTS31-PCOAX CBL SSMP TO SSMP |
4,519 |
|
- |
- | Bag | Active | SSMP to SSMP | SSMP Socket (2) | Female | Free Hanging (In-Line) | - | SSMP Socket (2) | Female | Free Hanging (In-Line) | - | 12.20" (310.00mm) | 0.052" OD Coaxial Cable | - | - | - | 65 GHz | Black | - | - | - | - |
|
095-725-112-030COAX CBL SMPM TO SMPM |
4,361 |
|
Datasheet |
- | Bulk | Active | SMPM to SMPM | SMPM Plug | Female | Free Hanging (In-Line) | - | SMPM Plug | Female | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 0.047" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Gray | - | -20°C ~ 75°C | - | - |
