Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

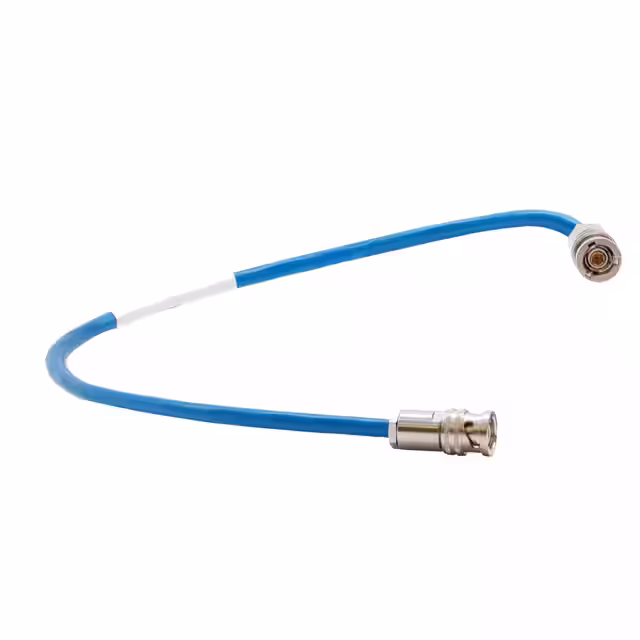

21-20-M3.0COAX CBL TRB TO TRB |
2,340 |
|
Datasheet |
- | Bulk | Active | TRB to TRB | TRB Plug | Male | Free Hanging (In-Line) | - | TRB Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | Twinaxial | - | - | 78 Ohms | 500 GHz | Blue | Shielded | - | - | MIL-STD-1553B |
|
IB047-SMPFSMPF-6.0INCOAX CBL SMP TO SMP |
1,911 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Jack | Female | Free Hanging (In-Line) | - | SMP Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | 50 Ohms | - | - | 18 GHz | Blue | - | -65°C ~ 125°C | - | - |
|
|
7032-8548COAX CBL SMA TO SMPM |
2,621 |
|
Datasheet |
- | Bag | Active | SMA to SMPM | SMA Plug | Male | Free Hanging (In-Line) | - | SMPM Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 18 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
415-0210-MM250COAX CBL 2.92MM TO 2.92MM |
3,988 |
|
Datasheet |
- | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | HP 160S | - | - | 50 Ohms | 40 GHz | Blue | Shielded | - | - | - |
|
|
7029-3826COAX CBL SMA TO SMA |
4,679 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
|
TM7SM8FS8FS061CCOAX CBL 1.85MM TO 1.85MM |
4,753 |
|
Datasheet |
- | Bag | Active | 1.85mm to 1.85mm | 1.85mm Jack | Female | Free Hanging (In-Line) | - | 1.85mm Jack | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | 0.078" OD Coaxial Cable | - | - | 50 Ohms | 40 GHz | Teal | - | -50°C ~ 105°C | - | - |
|
095-850-192-072COAX CBL BNC TO HD-BNC |
4,796 |
|
Datasheet |
- | Bulk | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
|
7012-1981COAX CBL SMP TO SMP |
4,711 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 26.5 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
7015-1098COAX CBL 2.92MM TO 2.92MM |
2,704 |
|
Datasheet |
- | Bag | Active | 2.92mm to 2.92mm | 2.92mm Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | 50 Ohms | 50 Ohms | 50 Ohms | 40 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
7029-3381COAX CBL SMA TO SMA |
3,175 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
|
IB047-KMKM-4.0INCOAX CBL 2.92MM TO 2.92MM |
4,796 |
|
Datasheet |
- | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 4.000" (101.60mm) | 0.047" Flexible Cable | 50 Ohms | - | - | 40 GHz | Blue | - | -65°C ~ 125°C | - | - |
|
|
IB047-KMKM-6.0INCOAX CBL 2.92MM TO 2.92MM |
1,454 |
|
Datasheet |
- | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | 50 Ohms | - | - | 40 GHz | Blue | - | -65°C ~ 125°C | - | - |
|

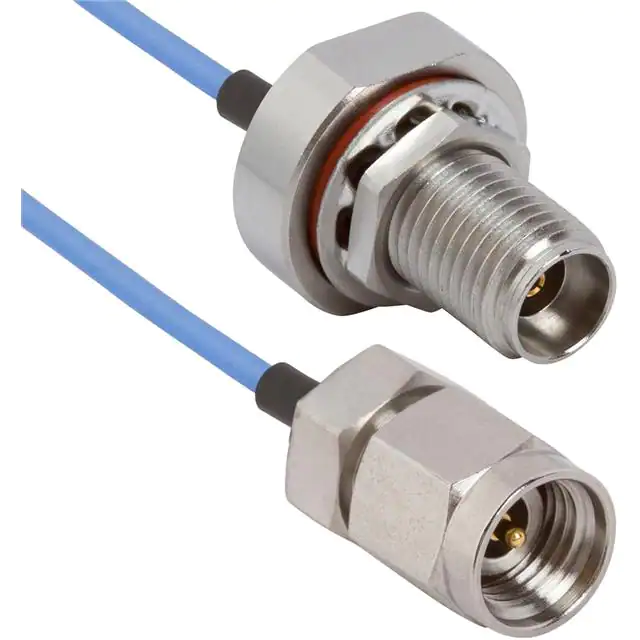

7015-1064COAX CBL 2.92MM TO 2.92MM |
4,007 |
|
Datasheet |
- | Bag | Active | 2.92mm to 2.92mm | 2.92mm Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Semi-Rigid Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

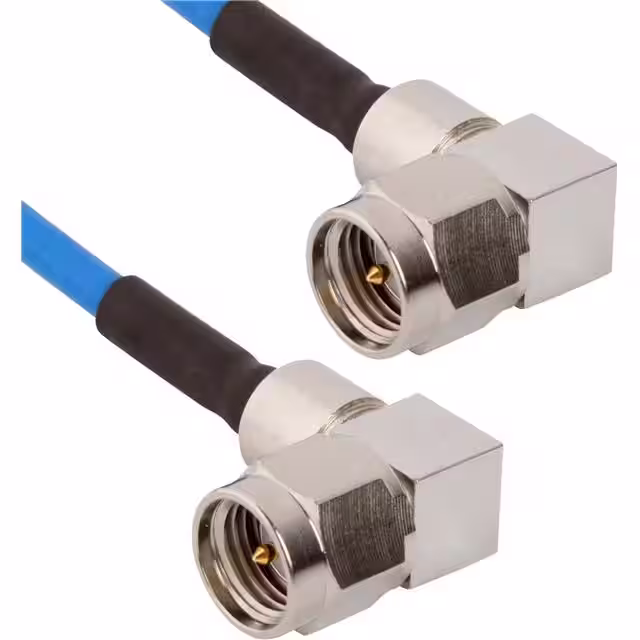

7029-3382COAX CBL SMA TO SMA |
1,540 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
|
IB047-KMKM-10.0INCOAX CBL 2.92MM TO 2.92MM |
4,966 |
|
Datasheet |
- | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 10.000" (254.00mm) | 0.047" Flexible Cable | 50 Ohms | - | - | 40 GHz | Blue | - | -65°C ~ 125°C | - | - |
|
|
7012-1979COAX CBL SMP TO SMP |
4,392 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 26.5 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
|
IB047-KMKM-12.0INCOAX CBL 2.92MM TO 2.92MM |
3,214 |
|
Datasheet |
- | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | 50 Ohms | - | - | 40 GHz | Blue | - | -65°C ~ 125°C | - | - |
|
7012-1286COAX CBL SMP TO 2.92MM |
1,553 |
|
Datasheet |
- | Bag | Active | SMP to 2.92mm | SMP Jack | Female | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
21-20-M4.0COAX CBL TRB TO TRB |
3,090 |
|
Datasheet |
- | Bulk | Active | TRB to TRB | TRB Plug | Male | Free Hanging (In-Line) | - | TRB Plug | Male | Free Hanging (In-Line) | - | 157.5" (4.0m) 13.1' | Twinaxial | - | - | 78 Ohms | 500 GHz | Blue | Shielded | - | - | MIL-STD-1553B |
|

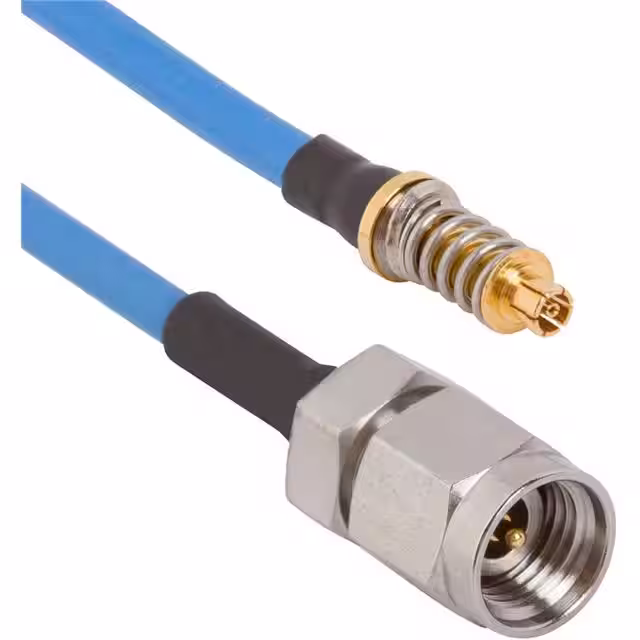

7032-7163COAX CBL SMP TO 2.92MM |
4,517 |
|
Datasheet |
- | Bag | Active | SMP to 2.92mm | SMP Jack | Female | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
