Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
415-0027-M1.5COAX CBL SMA TO SMA |
3,036 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Gray | Shielded | - | - | - |
|
2016757-9COAX CBL SMA TO SMA |
1,725 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 13.78" (350.00mm) | RG-405 | 50 Ohms | 50 Ohms | 50 Ohms | 27 GHz | Blue | - | -45°C ~ 125°C | - | - |
|
095-850-238M100COAX CBL BNC TO SMB |
2,375 |
|
Datasheet |
- | Bag | Active | BNC to SMB | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
336209-13-0300COAX CBL U.FL AMC TO TNC |
4,805 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 11.811" (300.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
336209-12-0100COAX CBL U.FL AMC TO TNC |
4,076 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
CA-FMP1-XZ001010WPCOAX CBL U.FL TO FAKRA |
3,459 |
|
Datasheet |
CA | Bag | Active | U.FL (UMCC), I-PEX to Fakra | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 0.054" OD Coaxial Cable | - | - | 50 Ohms | - | Gray | - | -40°C ~ 90°C | - | - |
|
095-850-275-036COAX CBL TNC TO TNC |
3,661 |
|
Datasheet |
TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-142 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
415-0082-MM125COAX CBL SMA TO SMA |
2,916 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 4.921" (125.00mm) | Hand Formable .141 | - | 50 Ohms | 50 Ohms | 18 GHz | Gray | Shielded | - | - | - |
|

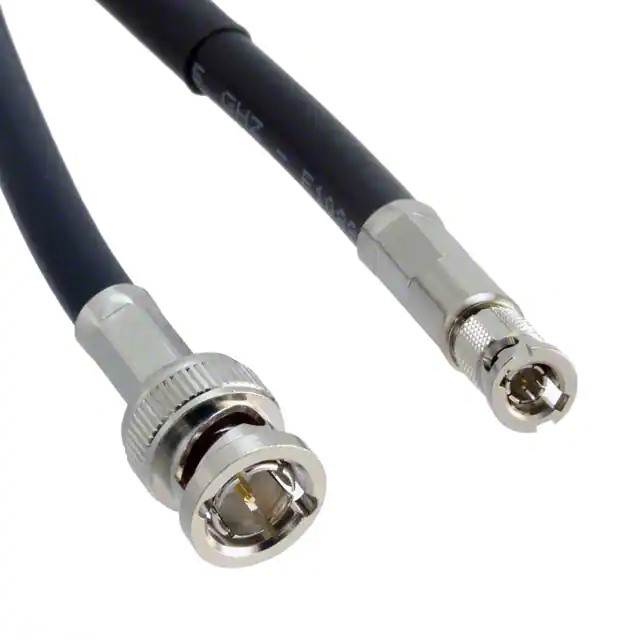

095-850-131-012COAX CBL BNC TO HD-BNC |
3,224 |
|
Datasheet |
- | Bulk | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 1694A | - | - | 75 Ohms | 3 GHz | Black | Shielded | 0°C ~ 50°C | - | - |
|
095-725-119M025COAX CBL SMP TO SMP |
2,373 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
095-902-462-012COAX CBL SMA TO CABLE |
1,768 |
|
Datasheet |
- | Bag | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 12.00" (304.80mm) | Micro Coaxial | - | - | 50 Ohms | 18 GHz | Gray | Shielded | -20°C ~ 75°C | - | - |
|
135101-R1-M0.50COAX CBL SMA TO SMA |
2,945 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | Hand Formable .085 | - | - | 50 Ohms | 12.4 GHz | Gray | - | - | - | - |
|
175101-19-M1.00COAX CBL N-TYPE TO N-TYPE |
1,963 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
|
RF316-03RP1-06BJ2-0305COAX CBL MMCX TO N-TYPE |
1,975 |
|
Datasheet |
RF316 | Bag | Active | MMCX to N-Type | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.01" (305.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|

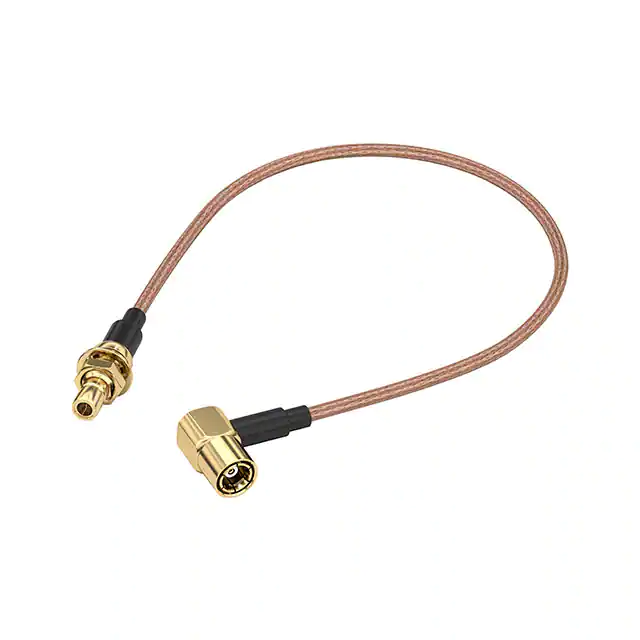

65503110415301COAX CBL SMB TO SMB |
1,468 |
|
Datasheet |
WR-CXASY | Bag | Active | SMB to SMB | SMB Jack | Male | Panel Mount | Bulkhead - Front Side Nut | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|
095-850-130M075COAX CBL BNC TO HD-BNC |
2,729 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | Belden 1855A | - | - | 75 Ohms | 3 GHz | Black | Shielded | -30°C ~ 75°C | - | - |
|
145101-05-36.00COAX CBL SMB MINI-SMB MINI |
1,101 |
|
Datasheet |
- | Bulk | Active | SMB Mini to SMB Mini | SMB Mini Plug | Female | Free Hanging (In-Line) | - | SMB Mini Plug | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | - | Copper | Shielded | - | - | - |
|
|
095-902-449-007COAX CBL SMA TO SMA |
4,068 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 7.000" (177.80mm) | Hand Formable .085 | - | - | 50 Ohms | 18 GHz | Gray | - | - | - | - |
|
|
RF316-02RP1-06BJ2-0152COAX CBL MCX TO N-TYPE |
4,924 |
|
Datasheet |
RF316 | Bag | Active | MCX to N-Type | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 5.984" (152.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|
095-850-242-024COAX CBL BNC TO MCX |
3,895 |
|
Datasheet |
- | Bag | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
