MYIR Tech Limited MY-WIREDCOM — A Wired Communication Interface Module

Part No.:
MY-WIREDCOM — A Wired Communication Interface Module
Manufacturer:
MYIR Tech Limited
Category:
Expansion Boards, Daughter Cards
Package:
Description:
The MY-WIREDCOM RPI module is a dedicated expansion board, specifically designed for MYIR development boards that feature a 2.54 mm pitch 2x 20-pin male header connector, making it fully compatible w…
Quantity:
Payment:
Payment
Shipping:
Shipping

Inventory:10

Please send an inquiry. Send us your inquiry, and we will respond immediately.

Part Number
Quantity*
Price
Name*
Company*
Email*
Comments

Product details

MY-WIREDCOM - A Wired Communication Interface Module

The MY-WIREDCOM RPI module is a dedicated expansion board, specifically designed for MYIR development boards that feature a 2.54 mm pitch 2x 20-pin male header connector, making it fully compatible with the widely used Raspberry PI 40-pin expansion standard. The module has a 2x 20-pin female header connector on its back, serving as the critical interface to connect with the MYIR development board. This configuration allows for seamless expansion of RS232 interfaces, isolated RS485 interfaces, and isolated CAN interfaces, all of which can be accessed through a convenient 3.81 mm pitch, 10-pin Phoenix connector, greatly enhancing the functionality of the development board.

Technical Specifications

Dimensions 64.4mm (L) * 55.4mm (W)
Power Supply DC 4.75V~5.25V DC 3.3V
Power Consumption Less than 0.3W
Work Temperature -40℃ to +85℃
Storage Temperature -40℃ to +85℃
J2 3.81mm pitch 10-pin phoenix connector - Isolated CAN interface - Isolated RS485 interface - RS232 interfac
J1 2.54mm pitch 2x 20-pin female header connector J1
Pin Function; Signal; Description
1 3.3V power supply; VDD_3V3; Input type
2 5V power supply; VDD_5V; Input type
3 I2C data; PF15 (I2C1_SDA); Input type
4 5V power supply; VDD_5V
5 I2C clock; PF14 (I2C1_SCL)
6 Power GND; GND

Key Features

  • 2.54mm Pitch 2x20-pin Header for Connection with MYIR's Boards
  • Double-sided Component Layout, with a Single 2x 20-pin Header on the Reverse Side
  • Enables Extension of RS232, RS485, and CAN Interfaces through a Phoenix Connector
  • Compatible for Operation with an Array of MYIR s Development Boards

About MYIR Tech

MYIR Tech (Shenzhen, China) designs and manufactures ARM and FPGA System-On-Modules (SOMs), single board computers, industrial PCs and accessories for embedded developers. Specifications are sourced from the manufacturer's official documentation and are subject to change without notice.

Ordering information

Part Number:  MY-WIREDCOM

Note: Pictures are for reference only; the actual product prevails. For pricing and lead time, please send an inquiry.

  • Specifications
  • FAQ
  • Product Comparison
  • Tags
Product attributes
Attribute value
Manufacturer:
MYIR Tech Limited
Series:
-
Packaging:
Bulk
Product Status:
Active
Platform:
RPI Module
Type:
For Extension of RS-232/485, CAN-Bus
Function:
Utilized IC / Part:
Contents:

1. How to order MY-WIREDCOM — A Wired Communication Interface Module on SANJIA TECHNOLOGY LTD.?

Currently, SANJIA TECHNOLOGY LTD. only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does SANJIA TECHNOLOGY LTD. guarantee that MY-WIREDCOM — A Wired Communication Interface Module is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the MY-WIREDCOM — A Wired Communication Interface Module. All suppliers must pass our qualification reviews before they can publish their products including MY-WIREDCOM — A Wired Communication Interface Module on SANJIA TECHNOLOGY LTD.; we pay more attention to the channels and quality of MY-WIREDCOM — A Wired Communication Interface Module products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the MY-WIREDCOM — A Wired Communication Interface Module price and inventory displayed accurate?

The price and inventory of MY-WIREDCOM — A Wired Communication Interface Module fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of MY-WIREDCOM — A Wired Communication Interface Module?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the MY-WIREDCOM — A Wired Communication Interface Module we delivered, we will accept the replacement or return of the MY-WIREDCOM — A Wired Communication Interface Module only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of MY-WIREDCOM — A Wired Communication Interface Module.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations

7.How to contact us to get technical supports, such as MY-WIREDCOM — A Wired Communication Interface Module pin diagram, MY-WIREDCOM — A Wired Communication Interface Module datasheet?

If you need any after-sales service, please do not hesitate to contact us.

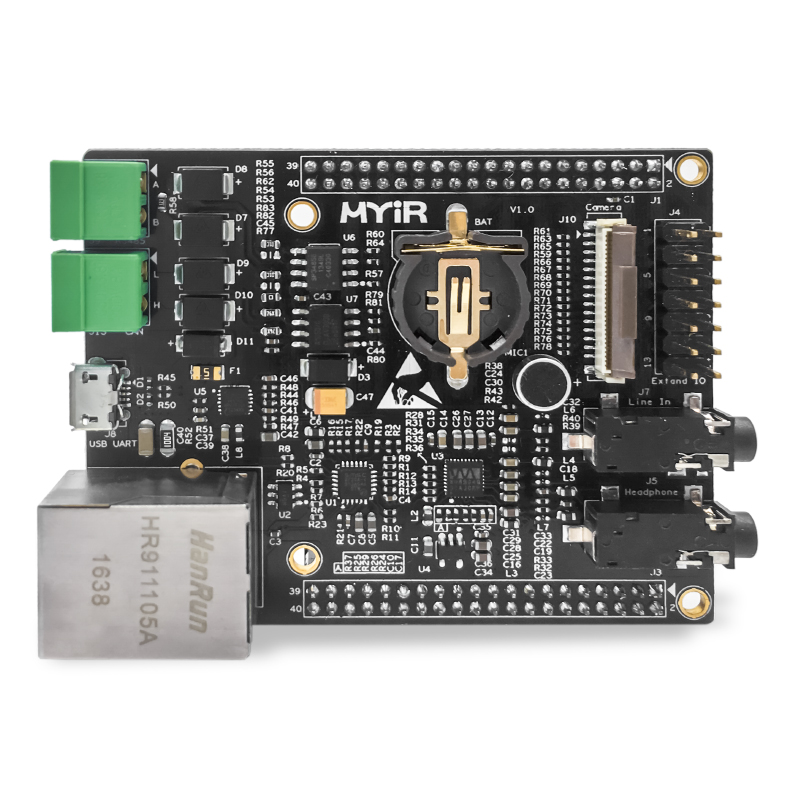

Image MY-WIREDCOM — A Wired Communication Interface Module MYB-6ULX — An IO Extension Board for the MYS-6ULX Single Board Computer
