Orange Pi Orange Pi 3
- Part No.:
- Orange Pi 3
- Manufacturer:
- Orange Pi
- Category:
- Single Board Computers (SBCs)
- Package:
- Description:
- Orange Pi 3 Orange Pi 3 is a single board computer from Orange Pi. Orange Pi 3 is an open-source single-board computer with wireless WiFi and Bluetooth 5.0 .It is highly compact with a dimension of 90X64mm. Orange Pi 3 uses the Allwinner H6 SoC, and has 1G…
- Quantity:
- Payment:
- Shipping:
Inventory:10
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
Orange Pi 3
Orange Pi 3 is a single board computer from Orange Pi. Orange Pi 3 is an open-source single-board computer with wireless WiFi and Bluetooth 5.0 .It is highly compact with a dimension of 90X64mm. Orange Pi 3 uses the Allwinner H6 SoC, and has 1GB/2GB LPDDR3 (shared with GPU) , an optional 8GB eMMC flash. It can run Android 7.0,Ubuntu,Debian image. Orange Pi 3 offers a range of different ports… Key specifications include CPU: H6 Quad-core 64-bit 1.8GHZ ARM Cortex-A53, Memory+Onboard Storage: Four Types: • 1GB LPDDR3 (shared with GPU)+EMMC(Default Empty) • 2GB LPDDR3(shared with G…. Documentation, reference designs and OEM customization are available on request.
Technical Specifications
| CPU | H6 Quad-core 64-bit 1.8GHZ ARM Cortex-A53 |
| GPU | • High-performance multi-core GPU Mali T720 • OpenGL ES3.1/3.0/2.0/1.1 • Microsoft DirectX 11 FL9_3 • ASTC(Adaptive Scalable Texture Compression) • Floating point operation greater than 70 GFLOPS |
| Memory+Onboard Storage | Four Types: • 1GB LPDDR3 (shared with GPU)+EMMC(Default Empty) • 2GB LPDDR3(shared with GPU)+EMMC(Default Empty) • 1GB LPDDR3 (shared with GPU)+8GB EMMC Flash • 2GB LPDDR3(shared with GPU)+8GB EMMC Flash |
| WiFi+BT | AP6256, IEEE 802.11 a/b/g/n/ac, BT5.0 |
| Onboard Network | 10/100M/1000M , ethernet RJ45 |
| Network Chip | RTL8211 |
| Audio Input | MIC |
| Audio Output | HDMI 2.0a and 3.5 mm AV Jack |
| Video Output | HDMI 2.0a and CVBS |
| Video Decoding | • H265/HEVC Main/Main10 profile@Level5.2 High-tier ;4K@60fps, up to 6Kx4K@30fps • H264/AVC BP/MP/HP@level5.1, MVC, 4K@30fps • VP9, Profile 0/2, 4K@30fps • AVS+/AVS JIZHUN profile@level 6.0, 1080P@60fps |
Key Features
- • Supports RC mode • Supports x1 Gen2(5.0Gbps) lane • Complies with PCI Express Base 2.0 Specification
- DC input, MicroUSB (OTG)
- AXP805
- 1*USB 2.0 Host, 1*USB OTG 2.0
About Orange Pi
Orange Pi (Shenzhen, China) designs and manufactures open-source single board computers, compute modules, base boards, cameras, cooling solutions and power supplies based on Allwinner, Rockchip and Ascend processors, supported by Orange Pi OS, Linux and Android images. Specifications are sourced from the manufacturer's official product pages and are subject to change without notice.
Note: Pictures are for reference only; the actual product prevails. For pricing and lead time, please send an inquiry.
- Specifications
- FAQ
- Product Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Orange Pi
- Series:
- Packaging:
- Product Status:
- Core Processor:
- Speed:
- Number of Cores:
- Power (Watts):
- Cooling Type:
- Size / Dimension:
- Form Factor:
- Expansion Site/Bus:
- RAM Capacity/Installed:
- Storage Interface:
- Video Outputs:
- Ethernet:
- USB:
- RS-232 (422, 485):
- Digital I/O Lines:
- Analog Input:Output:
- Watchdog Timer:
- Contents:
1. How to order Orange Pi 3 on SANJIA TECHNOLOGY LTD.?
Currently, SANJIA TECHNOLOGY LTD. only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.
2. How does SANJIA TECHNOLOGY LTD. guarantee that Orange Pi 3 is from the original manufacturer or authorized agents?
We have a professional and experienced quality control team to strictly verify and test the Orange Pi 3. All suppliers must pass our qualification reviews before they can publish their products including Orange Pi 3 on SANJIA TECHNOLOGY LTD.; we pay more attention to the channels and quality of Orange Pi 3 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.
3. Are the Orange Pi 3 price and inventory displayed accurate?
The price and inventory of Orange Pi 3 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.
4. What forms of payment are accepted?
Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.
Warm Tips: Some orders in certain payment forms may require handling fee.
5. How is the shipping arranged?
Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.
Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.
Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.
6. What is the process for return or replacement of Orange Pi 3?
All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the Orange Pi 3 we delivered, we will accept the replacement or return of the Orange Pi 3 only when all of the below conditions are fulfilled:
(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.
(2)We are informed of the defect described above within 90 days after the delivery of Orange Pi 3.
(3)The PartNo is unused and only in the original unpacked packaging.
Two processes to return the products:
(1)Inform us within 90 days
(2)Obtain Requesting Return Authorizations
7.How to contact us to get technical supports, such as Orange Pi 3 pin diagram, Orange Pi 3 datasheet?
If you need any after-sales service, please do not hesitate to contact us.
| Image |  |
 |
 |
 |

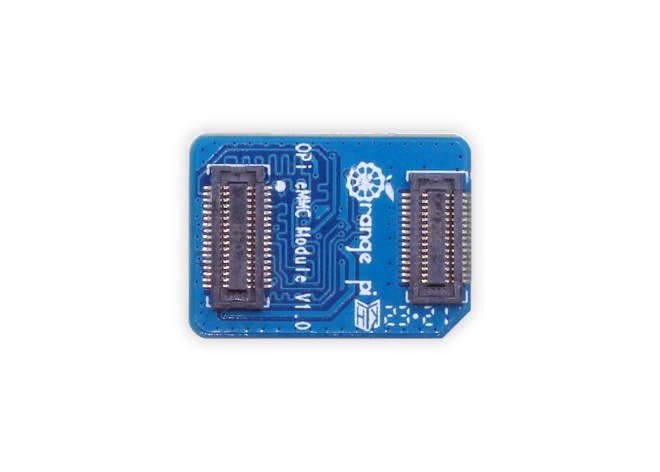

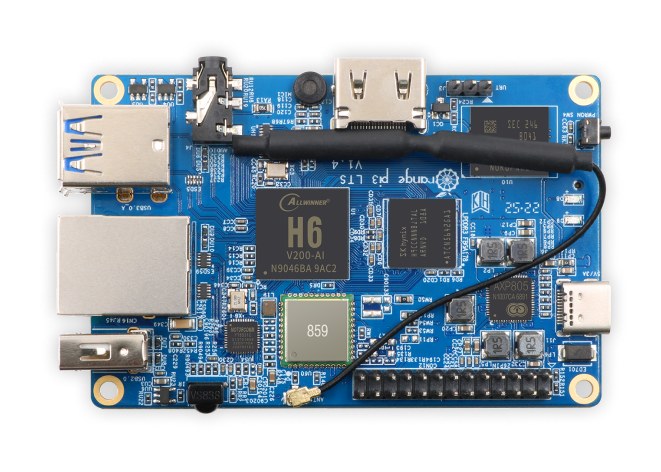

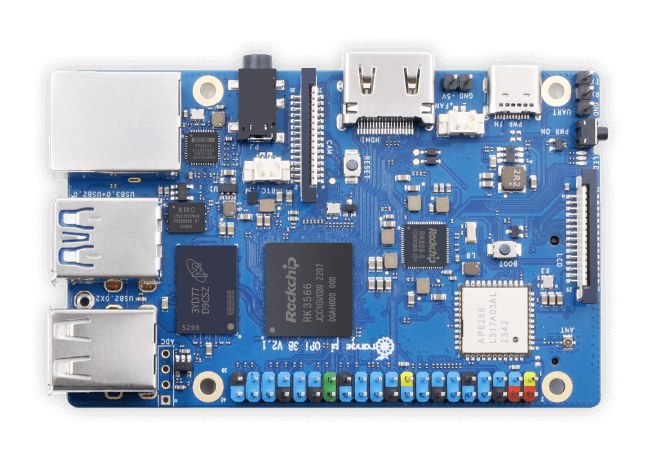

| Part Number | Orange Pi 3 | Orange Pi 3 LTS | Orange Pi 32GB/64GB/256GB eMMC Module | Orange Pi 3B |
