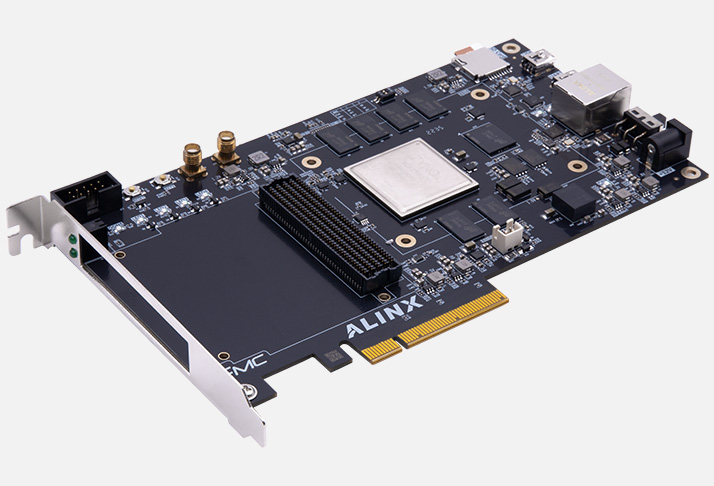

ALINX AX7450B V2.0 — Dev Board & Kit with AMD Zynq 7000 SoC XC7Z100
- Part No.:
- AX7450B V2.0 — Dev Board & Kit with AMD Zynq 7000 SoC XC7Z100
- Manufacturer:
- ALINX
- Package:
- Description:
- The AX7450B SoC development board equipped with the AMD/Xilinx Zynq™ 7000 SoC-series XC7Z100 device, delivers standout performance with fast DDR3 SDRAM, eMMC Flash, QSPI Flash, PCIe, FMC HPC, Gigabit
- Quantity:
- Payment:
- Shipping:
Inventory:10
Please send an inquiry. Send us your inquiry, and we will respond immediately.
Product details
AX7450B Dev Board & Kit with AMD Zynq 7000 SoC XC7Z100
The AX7450B SoC development board equipped with the AMD/Xilinx Zynq™ 7000 SoC-series XC7Z100 device, delivers standout performance with fast DDR3 SDRAM, eMMC Flash, QSPI Flash, PCIe, FMC HPC, Gigabit Ethernet.
Technical Specifications
| Processor | ARM® dual-core Cortex™-A9 up to 800 MHz |
| Memory | 1 GByte (32-bit) DDR3 SDRAM on PS; 2 GByte (64-bit) DDR3 SDRAM on PL |
| Storage | 64 MB QSPI Flash; 8 GB eMMC Flash |
| Ethernet / Network | 1 x Gigabit Ethernet (1 x PS ) |
| Display Interface | 1 x FMC HPC (FMC has 84 pairs lvds io and 8 pairs GTX) |
| PCIe | 1 x PCIe® Gen2 × 8 (PL) |
| USB | 1 x USB to UART on PS; 1 x USB2.0(OTG) |
| JTAG | 1 x JTAG |
| LED / Keys | LED (1 x PWR + 1 x DONE + 1 x RXD + 1 x TXD + 4 x PL LED); KEY (1 x PS RST + 1 x PS KEY) |
| Power | 12V single supply |
| Dimensions | Dimensions: 190 x 107 mm form factor |
| Other | AMD/Xilinx Zynq™ 7000 SoC:; Xilinx Kintex 7 28nm FPGA fabric; 1 x MicroSD |
Key Features
- AMD/Xilinx Zynq™ 7000 SoC:
- ARM® dual-core Cortex™-A9 up to 800 MHz
- Xilinx Kintex 7 28nm FPGA fabric
- 1 GByte (32-bit) DDR3 SDRAM on PS
- 2 GByte (64-bit) DDR3 SDRAM on PL
- 64 MB QSPI Flash
- 8 GB eMMC Flash
- 1 x FMC HPC (FMC has 84 pairs lvds io and 8 pairs GTX)
- 1 x PCIe® Gen2 × 8 (PL)
- 1 x USB to UART on PS
- 1 x Gigabit Ethernet (1 x PS )
- 1 x USB2.0(OTG)
- 1 x JTAG
- 1 x MicroSD
- LED (1 x PWR + 1 x DONE + 1 x RXD + 1 x TXD + 4 x PL LED)
- KEY (1 x PS RST + 1 x PS KEY)
- 12V single supply
- Dimensions: 190 x 107 mm form factor
Packing List
Development Board x1, Heatsink Kit (preinstalled) x1, Mini USB Cable x2, USB Downloader Cable / set x1, 12V Power Adapter x1, Card Reader x1, TF Card x1
About ALINX
ALINX is a professional FPGA & SoC solution provider focusing on AMD/Xilinx and Pango devices. This product is sourced from ALINX original documentation; parameters are for reference and may be updated by the manufacturer without notice.
Note: Pictures are for reference only; the actual product prevails.
