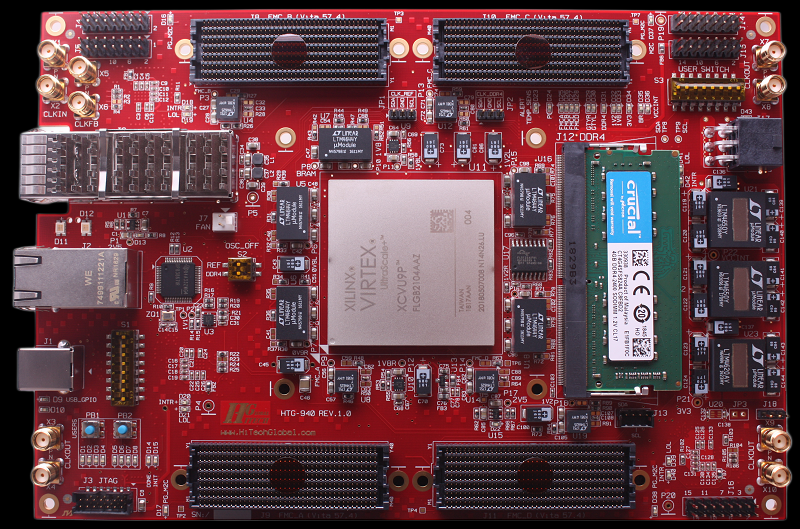

HiTech Global HTG-940 — UltraScale+ VU9P / VU13P FPGA board with four FMC+ ports

Name: HTG-940 — UltraScale+ VU9P / VU13P FPGA board with four FMC+ ports
Brand: HiTech Global
SKU: HTG-940 — UltraScale+ VU9P / VU13P FPGA board with four FMC+ ports
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: HTG-940 — UltraScale+ VU9P / VU13P FPGA board with four FMC+ ports

Manufacturer:: HiTech Global

Category:: Embedded Complex Logic (FPGA, CPLD) Evaluation Boards

Package:

Description:: Populated with one AMD Virtex UltraScale+ VU9P, VU13P, or UltraScale VU190 FPGA, the HTG-940 provides access to wide range of FPGA gate densities, I/Os and memory for variety of different programmable

Quantity:: RFQ Add To RFQ list

Payment:

Shipping:

Inventory:10

Please send an inquiry. Send us your inquiry, and we will respond immediately.

Product details

HTG-940 - UltraScale+ VU9P / VU13P FPGA board with four FMC+ ports

Populated with one AMD Virtex UltraScale+ VU9P, VU13P, or UltraScale VU190 FPGA, the HTG-940 provides access to wide range of FPGA gate densities, I/Os and memory for variety of different programmable applications. The HTG-940 architecture allows easy and versatile functional expansion through four Vita 57.4 compliant High-Pin-Count FPGA Mezzanine Card (FMC+) connectors. The FMC+ ports provide access to total of 370 single-ended FPGA I/Os and 72 GTY /GTH (30.5/16.0Gbps) serial transceivers. The FMC+ ports can host standard Vita57.4 or Vita57.1 daughter cards. The HTG-940 is supported by one 72-bit ECC DDR4 SODIMM socket providing access to up to 32 GB of SDRAM memory. The HTG-940 provides access to QSFP28 (100G), 100/1000 Ethernet and USB communication ports. PCIE connectivity is available by using HTG-FMC-LVDS and HTG-X8-PCIE-EP modules.

Technical Specifications

PCI Express	PCIE connectivity is available by using HTG-FMC-LVDS and HTG-X8-PCIE-EP modules.
FMC / Expansion	The HTG-940 architecture allows easy and versatile functional expansion through four Vita 57.4 compliant High-Pin-Count FPGA Mezzanine Card (FMC+) connectors.
Memory	x1 72-bit ECC DDR4 SODIMM socket supporting memory density up to 32GB- (shipped with 4GB)
Networking / Optical	x1 QSFP28 (100G) Port
Storage	x2 QSPI Configuration Flash
USB / Serial	x1 USB to UART Port
Clocking	Ultra low-jitter Programmable oscillators & clock generators
Form Factor / Dimensions	Size: 8.7" x 5.9" (220mm x 150mm)
Configuration	x1 Jtag port for configuration and debugging
FMC Standard	Vita 57.4 (FMC+)

Key Features

x1 AMD Virtex UltraScale+ VU9P, VU13P, or UltraScale VU190 FPGA in B2104 package
x1 72-bit ECC DDR4 SODIMM socket supporting memory density up to 32GB- (shipped with 4GB)
x4 FMC+ (Vita 57.4) ports - FMC 'A' : High Pin Count (HSPC) populated with 20 serial transceivers (GTY for VU9P/VU139 and GTH for VU190) and 116 singled-ended I/Os. - FMC 'B' : High Pin Count (HSPC) populated with up to 16 serial transceivers (GTY for VU9P/VU13P/VU190) and 66 single-ended I/Os. -FMC 'C' High Pin Count (HSPC) populated with up to 16 serial transceivers (GTY for VU9P/VU13P/VU190) and 66 single-ended I/Os. -FMC 'D' :High Pin Count (HSPC) populated with 20 serial transceivers (GTY for VU9P/VU139 and GTH for VU190)and 116 single-ended I/Os.
x1 QSFP28 (100G) Port
x1 Ethernet 10/100/1000) Port
XDAC headers
x1 USB to UART Port
x2 QSPI Configuration Flash
x1 Jtag port for configuration and debugging
x4 Pin Headers with 49 GPIOs (with one header supporting four 3.3V I/Os)
Ultra low-jitter Programmable oscillators & clock generators
x1 IP protection circuit
Size: 8.7" x 5.9" (220mm x 150mm)

Kit Contents / Deliverables

HTG-940 platform
(with installed heatsink/fan)
12V/8A wall power supply
Reference Designs/Demos:
DDR4 memory controller
Documents:
User Manual
Schematics (in searchable .pdf format)

Ordering Information

Ordering part numbers: HTG-940-9 (populated with one Virtex UltraScale+ VU9P-2 FPGA ), HTG-940-9-3 (populated with one Virtex UltraScale+ VU9P-3FPGA), HTG-940-13 (populated with one Virtex UltraScale+ VU13P-2 FPGA), HTG-940-13-3 (populated with one Virtex UltraScale+ VU13P-3 FPGA). Please contact us for pricing and availability.

About HiTech Global

HiTech Global (San Jose, CA, USA) designs and manufactures high-performance AMD/Xilinx and Intel/Altera FPGA development boards, RFSoC platforms, FMC/FMC+ modules and accessories. Specifications are sourced from the manufacturer's official documentation and are subject to change without notice.

Note: Pictures are for reference only; the actual product prevails. For pricing and lead time, please send an inquiry.
