TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SZNUP2115LT3GTVS DIODE 24VWM 50VC SOT23-3 |
2,867 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | - | 2 | 24V (Min) | 26.2V | 50V | 3A (8/20µs) | 200W | No | - | 10pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
1SMB6.0AT3GTVS DIODE 6VWM 10.3VC SMB |
27,500 |
|
Datasheet |
DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 58.3A | 600W | No | General Purpose | 2300pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
NNCD36J-T1-ATTRANS VOLTAGE SUPPRESSOR DIODE |
21,285 |
|
Datasheet |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1SMC9.0AT3TVS DIODE 9VWM 15.4VC SMC |
5,959 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 9V | 10V | 15.4V | 97.4A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
|
GSEZ7B002TVS, ESD, SINGLE, BI-DIR, 7.0V, |
20,000 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 7V (Max) | 8.5V | 15V | 2.5A (8/20µs) | 37.5W | No | DVI, USB | 0.15pF @ 3GHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1006-2 |
|
|
GSEN5B005TVS, ESD, SINGLE, BI-DIR, 5.0V, |
20,000 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 10V | 12A (8/20µs) | 120W | No | DVI, USB | 0.5pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | DFN0603 |
|
RKZ6.8TKK#R6TVS DIODE 3.5VWM 2SFP |
19,700 |
|
- |
2-SMD, Flat Leads | - | Bulk | Obsolete | Zener | - | 1 | 3.5V | 5.8V | - | - | - | No | General Purpose | - | - | - | - | Surface Mount | 2-SFP |
|
|
1.5SMC75AT3TVS DIODE 64.1VWM 103VC SMC |
3,191 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 64.1V | 71.3V | 103V | 14.6A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
RKZ7.5Z4MFAKT#P1TVS DIODE 4VWM 5VSON |
18,689 |
|
Datasheet |
SOT-553 | - | Bulk | Obsolete | Zener | 4 | - | 4V | 7V | - | - | - | No | General Purpose | 4pF @ 1MHz | - | - | - | Surface Mount | 5-VSON |
|
|
1SMB14AT3GTVS DIODE 14VWM 23.2VC SMB |
13,814 |
|
Datasheet |
DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 25.8A | 600W | No | General Purpose | 1085pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SMBJ5.0CATVS DIODE 5VWM 9.2VC |
13,020 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Strip | Active | Zener | - | 1 | 5V | 6.4V | 9.2V | 65.22A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
1SMC16AT3GTVS DIODE 16VWM 26VC SMC |
11,698 |
|
Datasheet |
DO-214AB, SMC | - | Bulk | Active | Zener | 1 | - | 16V | 17.8V | 26V | 57.7A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
|
1.5SMC33AT3TVS DIODE 28.2VWM 45.7VC SMC |
4,081 |
|
Datasheet |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1SMB10AT3GTVS DIODE 10VWM 17VC 425-TEPBGA |
11,169 |
|
Datasheet |
DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 10V | 11.1V | 17V | 35.3A | 600W | No | Telecom | 1460pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
CM1220-04CPTVS DIODE 9VC 5WLCSP |
8,833 |
|
Datasheet |
5-WFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | - | - | 9V | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 5-WLCSP (0.96x1.33) |
|

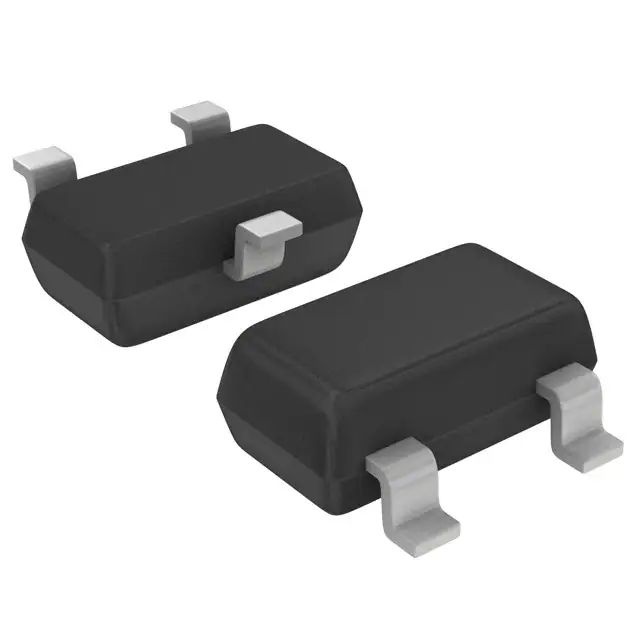

HZM3.3WA-JTR-ETVS DIODE 1VWM 3MPAK |
9,000 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Zener | 2 | - | 1V | 3.1V | - | - | - | No | General Purpose | - | - | - | - | Surface Mount | 3-MPAK |
|
|
GSEC7B750TVS, ESD, DUAL, BI-DIR, 12.0/7.0 |
8,800 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 7V (Max), 12V (Max) | 8V, 13.3V | 17V | 28A (8/20µs) | 500W | No | General Purpose | 75pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23 |
;;2.jpg)
|
P6KE180ATRANS VOLTAGE SUPPRESSOR DIODE, |
5,698 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | 1 | - | 154V | 171V | 246V | 2.5A | 600W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
NNCD6.8J-T1-ATTRANS VOLTAGE SUPPRESSOR DIODE |
5,285 |
|
Datasheet |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PJSD08TS_R1_00001SINGLE LINE TVS DIODE FOR ESD PR |
4,976 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 8V (Max) | 8.5V | 13V | 5A (8/20µs) | 120W | No | General Purpose | 70pF @ 1MHz (Max) | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
