TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PJSD12LCFN2_R1_00001DFN 2L, TVS/ESD |
15,405 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 12V (Max) | 13V | 23V | 5A (8/20µs) | 115W | No | General Purpose | 15pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 2-DFN (1x0.6) |
|
P4SMA200ATVS, UNI-DIR, 400W, 200V, DO-214 |
15,000 |
|
Datasheet |
DO-214AC, SMA | P4SMAx | Tape & Reel (TR) | Active | Zener | 1 | - | 171V | 190V | 274V | 1.1A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
GSEM3B200TVS, ESD, SINGLE, BI-DIR, 3.3V, |
13,480 |
|
Datasheet |
SOD-923 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4V | 12V | 5A (8/20µs) | - | No | General Purpose | 8pF @ 1MHz | -45°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-923 |
|
SMAJ30CATVS DIODE 30VWM 48.4VC |
10,140 |
|
Datasheet |
DO-214AC (SMA) | SMAJ | Strip | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 8.26A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SA12A500W, 12V, DO-15, TRANSIENT VOLT |
5,944 |
|
Datasheet |
DO-204AC, DO-15, Axial | SA | Cut Tape (CT) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 25.6A | 500W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
SA9.0A500W, 9V, DO-15, TRANSIENT VOLTA |
5,828 |
|
Datasheet |
DO-204AC, DO-15, Axial | SA | Cut Tape (CT) | Active | Zener | 1 | - | 9V | 10V | 15.4V | 33.1A | 500W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
|
GSEDC5B250TVS, ESD, SINGLE, BI-DIR, 5V, SO |
5,690 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 25V (Typ) | 13.5A (8/20µs) | 350W | No | General Purpose | 25pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
GSCLAMP3324PETVS, ESD, ARRAY, UNI-DIR. ULTRA |
5,091 |
|
Datasheet |
10-UFDFN | - | Tape & Reel (TR) | Active | Zener | 4 | - | 3.3V (Max) | 5V | 10V (Typ) | 3A (8/20µs) | - | Yes | DVI, HDMI, USB | 0.35pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN2510 |
|
|
SA5.0A500W, 5V, DO-15, TRANSIENT VOLTA |
3,681 |
|
Datasheet |
DO-204AC, DO-15, Axial | SA | Cut Tape (CT) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 55.4A | 500W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
MMBZ5V6ALFHT116TVS DIODE 3VWM 8VC SSD3 |
2,694 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3V (Max) | 5.32V | 8V | 3A | 24W | No | - | 230pF @ 1MHz | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SSD3 |
|
|
MMBZ16VALFHT116TVS DIODE 13VWM 23VC SSD3 |
2,596 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 13V (Max) | 15.2V | 23V | 1.7A | 40W | No | - | 70pF @ 1MHz | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SSD3 |
|
ATV06B8V5JB-HFTVS DIODE 8.5VWM 14.4VC DO214AA |
3,000 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 8.5V | 9.44V | 14.4V | 41.67A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
SMAJ9.0ATVS DIODE 9VWM 15.4VC |
10,000 |
|
Datasheet |
DO-214AC (SMA) | SMAJ | Strip | Active | Zener | 1 | - | 9V | 10V | 15.4V | 25.97A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMA6J154A-TRTVS DIODE 154VWM 265VC SMA |
3,318 |
|
Datasheet |
DO-214AC, SMA | SMA6J, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 154V | 171V | 265V | 12.6A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMBJ16ATVS DIODE 16VWM 26VC |
6,160 |
|
Datasheet |
DO-214AA (SMB) | SMBJ | Strip | Active | Zener | 1 | - | 16V | 17.8V | 26V | 23.08A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
CM1248-08DETVS DIODE 6.1VWM 6.8VC 8-UDFN |
6,132 |
|
Datasheet |
8-UFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Zener | 8 | - | 6.1V (Min) | - | 6.8V (Typ) | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-UDFN (1.7x1.35) |
|

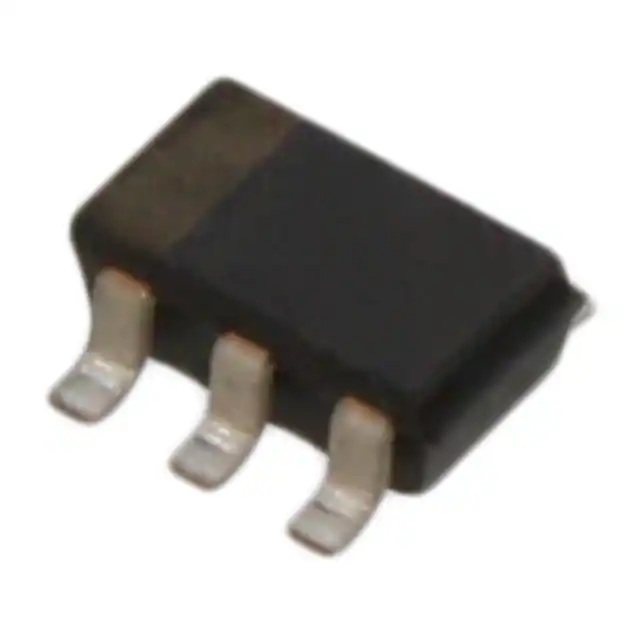

HZM6.2ZMFATL-ETVS DIODE 5.5VWM 5MPAK |
497,971 |
|
Datasheet |
SC-74A, SOT-753 | - | Bulk | Obsolete | Zener | 4 | - | 5.5V | 5.9V | - | - | - | No | General Purpose | 8.5pF @ 1MHz | - | - | - | Surface Mount | 5-MPAK |
|
|
NNCD6.8PL-T2-ATRANS VOLTAGE SUPPRESSOR DIODE |
318,000 |
|
Datasheet |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ESDHD05UFXTHE ESDHD05UF IS DESIGNED TO PRO |
296,779 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 16V | 20A (8/20µs) | 320W | No | General Purpose | 150pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-2 |
|
1SMB16AT3GTVS DIODE 16VWM 26VC SMB |
265,000 |
|
Datasheet |
DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 16V | 17.8V | 26V | 23.1A | 600W | No | General Purpose | 965pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
