TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PJSD05TS-02_R1_00001SINGLE LINE TVS DIODE FOR ESD PR |
4,720 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 14V | 18A | 200W | No | General Purpose | 160pF @ 1MHz (Max) | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
CM1244-04CPTVS DIODE 15VC 5WLCSP |
3,500 |
|
Datasheet |
5-WFBGA, WLCSP | - | Bulk | Active | Zener | 4 | - | - | 5.5V | 15V (Typ) | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 5-WLCSP (0.76x1.05) |
|
SMF85AT1TVS DIODE 85VWM 137VC SOD123FL |
2,974 |
|
Datasheet |
SOD-123F | - | Bulk | Obsolete | Zener | 1 | - | 85V | 94.4V | 137V | 1.3A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
1SMC20AT3TVS DIODE 20VWM 32.4VC SMC |
5,921 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 20V | 22.2V | 32.4V | 46.3A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
|
1SMC70AT3TVS 1500W 70V UNIDIRECT SMC |
9,109 |
|
Datasheet |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SMAJ100ATVS DIODE 100VWM 162VC |
5,060 |
|
Datasheet |
DO-214AC (SMA) | SMAJ | Strip | Active | Zener | 1 | - | 100V | 111V | 162V | 2.47A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
TGL41-440CATVS MELF 376V 400W BIDIR |
15,000 |
|
Datasheet |
DO-213AB, MELF | - | Tape & Reel (TR) | Active | Zener | - | 1 | 376V | 418V | 602V | 700mA | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-213AB (MELF) |
|
P4SMA440CATVS SMA 376V 400W BIDIR |
15,000 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 376V | 418V | 602V | 660mA | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMBJ51CATVS DIODE 51VWM 82.4VC SMB |
3,000,000 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 51V | 56.7V | 82.4V | 7.3A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
.jpg)
|
SM12OCTVS DIODE 12VWM 19VC SOT23 |
3,000,000 |
|
Datasheet |
SOT-23 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 12V (Max) | 13.3V | - | 1A (8/20µs) | 130W | Yes | General Purpose | 15pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
SMBJ24ATVS DIODE 24VWM 38.9VC SMB |
39,000 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 15.5A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P4SMA480ATVS SMA 408V 400W UNIDIR |
127,500 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 408V | 456V | 658V | 610mA | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
P6SMB200ATVS DIODE 171VWM 274VC |
4,980 |
|
Datasheet |
DO-214AA (SMB) | P6SMB | Strip | Active | Zener | 1 | - | 171V | 190V | 274V | 2.19A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
1PMT16AT3GTVS ZENER 16V 175W POWERMITE |
1,155,900 |
|
- |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1.5KE13ARL4GTVS DIODE 11.1VWM 18.2VC AXIAL |
180,430 |
|
Datasheet |
DO-201AD, Axial | Mosorb™ | Bulk | Active | Zener | 1 | - | 11.1V | 12.4V | 18.2V | 82A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | Axial |
|
|
1.5KE91ARL4GTVS DIODE 77.8VWM 125VC AXIAL |
108,000 |
|
Datasheet |
DO-201AD, Axial | Mosorb™ | Bulk | Active | Zener | 1 | - | 77.8V | 86.5V | 125V | 12A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | Axial |
|
MT16AT3GTVS DIODE 16VWM 26VC POWERMITE |
84,000 |
|
- |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

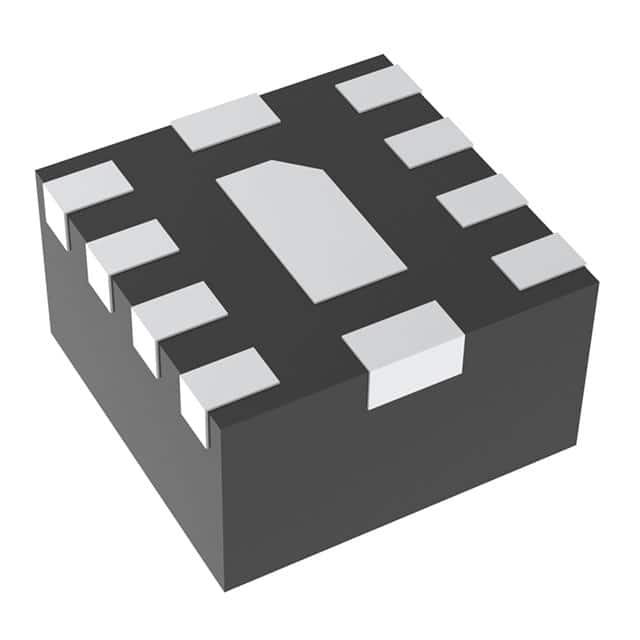

NUP8010MNT1GTVS DIODE 3VWM 13VC 8-DFN |
9,780 |
|
Datasheet |
8-VFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Zener | 6 | - | 3V (Max) | 5.3V | 13V | 1.6A (8/20µs) | 20W | No | General Purpose | 13pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-DFN (1.6x1.6) |
|
|
MT12AT1GTVS DIODE 12VWM POWERMITE |
30,000 |
|
- |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MT33AT3GTVS DIODE 33VWM POWERMITE |
24,000 |
|
- |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
