TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMBJ30CATVS DIODE 30VWM 48.4VC |
4,100 |
|
Datasheet |
DO-214AA (SMB) | SMBJ | Strip | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 12.4A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
1SMA13AT3GTVS DIODE 13VWM 21.5VC SMA |
336,151 |
|
Datasheet |
DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 18.6A | 400W | No | General Purpose | 860pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
1SMA24AT3G400 W TRANSIENT VOLTAGE SUPPRESS |
270,857 |
|
Datasheet |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

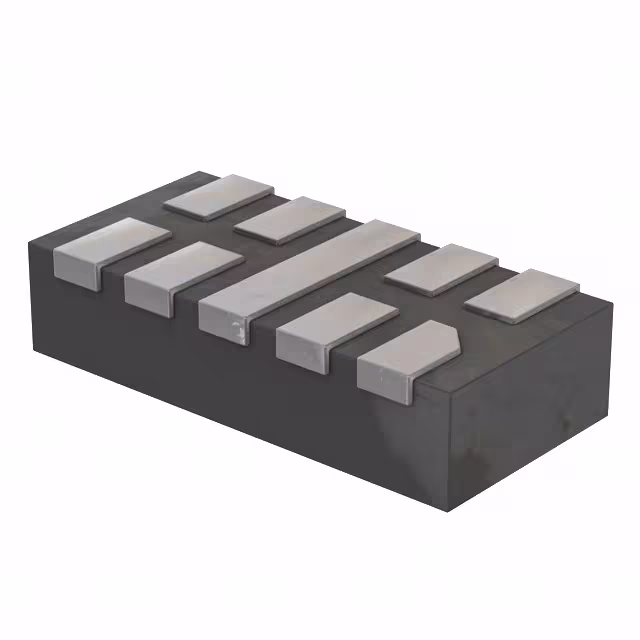

IP4285CZ9-TBB,115TVS DIODE 5.5VWM 3.9VC DFN2110-9 |
166,957 |
|
Datasheet |
9-XFDFN | - | Bulk | Obsolete | Steering (Rail to Rail) | 4 | - | 5.5V | 6V | 3.9V (Typ) | 4A (8/20µs) | - | Yes | HDMI | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | DFN2110-9 |
|
1SMF16BT3GTVS ZENER 175W 16V SOD123FL |
4,489 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1SMB45CAT3TVS DIODE 45VWM 72.2VC SMB |
2,798 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 45V | 50V | 72.2V | 8.3A | 600W | No | General Purpose | 200pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
PRTR5V0U2K,132TVS DIODE 5.5VWM 6XSON |
19,114 |
|
Datasheet |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1SMA33AT3GTVS DIODE 33VWM 53.3VC SMA |
17,887 |
|
Datasheet |
DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 7.5A | 400W | No | General Purpose | 375pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
SA20ATVS DIODE 20VWM 32.4VC DO204AC |
16,819 |
|
Datasheet |
DO-204AC, DO-15, Axial | SA | Bulk | Obsolete | Zener | 1 | - | 20V | 22.2V | 32.4V | 15.7A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
NNCD6.8F-T1B-ATNNCD6.8F-T1B-AT - ELECTROSTATIC |
16,099 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Zener | 2 | - | 3.5V (Max) | 6.47V | - | - | 100W | No | General Purpose | 110pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SC-59 |
|
|
1SMA30AT3GTVS DIODE 30VWM 48.4VC 6TDFN |
10,262 |
|
Datasheet |
DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 8.3A | 400W | No | General Purpose | 405pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
|
PESD5V0L1ULSOD-882 ESD PROTECTION DEVICES R |
8,853 |
|
Datasheet |
SOD-882 | - | Cut Tape (CT) | Active | Zener | 1 | - | 5V (Max) | 6.4V | 12V | 3.5A (8/20µs) | 42W | No | - | 25pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-882 |
|
|
NNCD6.8F-T1B-ANNCD6.8F-T1B-A - ELECTROSTATIC D |
6,944 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Zener | 2 | - | 3.5V (Max) | 6.47V | - | - | 100W | No | General Purpose | 110pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SC-59 |
|
1SMF16BT1TVS DIODE 16VWM 26VC SOD123FL |
6,524 |
|
- |
SOD-123F | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 16V | 16.7V | 26V | 7A (8/20µs) | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
SMAJ220A220V, 400W,SMA, TRANSIENT VOLTAG |
4,990 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 220V | 246V | 356V | 1.1A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
1SMA70AT3GTVS DIODE 70VWM 113VC SMA |
4,794 |
|
Datasheet |
DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 70V | 77.8V | 113V | 3.5A | 400W | No | General Purpose | 190pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
PJSD07TS_R1_00001SINGLE LINE TVS DIODE FOR ESD PR |
4,325 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7V (Max) | 7.5V | 22.7V | 8.8A (8/20µs) | 120W | No | General Purpose | 85pF @ 1MHz (Max) | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
SZQA6V8XV5T1GTVS DIODE 4.3VWM 12.5VC SOT553 |
3,960 |
|
Datasheet |
SOT-553 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 4.3V | 6.46V | 12.5V | 8A (8/20µs) | 100W | No | - | 70pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-553 |
|
|
1SMA12AT3GTVS DIODE 12VWM 19.9VC SMA |
3,611 |
|
Datasheet |
DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 20.1A | 400W | No | General Purpose | 925pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
.jpg)
|
SD3636V, 350W, SOD-323, TVS ARRAYS |
3,000 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
