TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P6SMB68AT3GZEN SMB TVS 600W 68V TR |
257,335 |
|
- |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SZESD8104MUTAGSZESD8104MUTAG |
5,096 |
|
Datasheet |
10-UFDFN | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 3.3V (Max) | 4V | 11.4V (Typ) | 16A | - | No | HDMI, USB | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 10-UDFN (2.5x1) |
|
1.5SMC91AT3GTVS DIODE 77.8V 125V SMC |
223,425 |
|
Datasheet |
DO-214AB, SMC | - | Bulk | Active | Zener | 1 | - | 77.8V | 86.5V | 125V | 12A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
.jpg)
|
1SMB20AT3G600 W TRANSIENT VOLTAGE SUPPRESS |
212,049 |
|
Datasheet |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1SMB70AT3GTVS DIODE 70VWM 113VC SMB |
182,860 |
|
Datasheet |
DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 70V | 77.8V | 113V | 5.3A | 600W | No | General Purpose | 260pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
CM1244-04CPTVS DIODE 15VC 5WLCSP |
5,086 |
|
Datasheet |
5-WFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | - | 5.5V | 15V (Typ) | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 5-WLCSP (0.76x1.05) |
|
|
NNCD6.8J-T1-ATVS DIODE 6.8VWM 2-ULTRA |
89,996 |
|
Datasheet |
SOD-723 | - | Bulk | Obsolete | Zener | 1 | - | 6.8V | 6.2V | - | - | 85W | No | General Purpose | 90pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | 2-Ultra Super Mini Mold |
|
RKZ6.8TKJ#R1TVS DIODE 3.5VWM UFP |
84,000 |
|
- |
SC-79, SOD-523 | - | Bulk | Obsolete | Zener | - | 1 | 3.5V | 5.8V | - | - | - | No | General Purpose | - | - | - | - | Surface Mount | 2-UFP |
|
|
1SMB13AT3GTVS DIODE 13VWM 21.5VC SMB |
70,275 |
|
Datasheet |
DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 27.9A | 600W | No | General Purpose | 1160pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
NUP4301MR6T1TVS DIODE SC74 |
8,144 |
|
Datasheet |
SC-74, SOT-457 | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | - | 70V | - | - | - | No | General Purpose | 1.6pF @ 1MHz | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SC-74 |
|
|
NNCD36J-T1-ATVS DIODE 36VWM 2-ULTRA |
64,638 |
|
Datasheet |
SOD-723 | - | Bulk | Obsolete | Zener | 1 | - | 36V | 34V | - | - | 85W | No | General Purpose | 15pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | 2-Ultra Super Mini Mold |
|

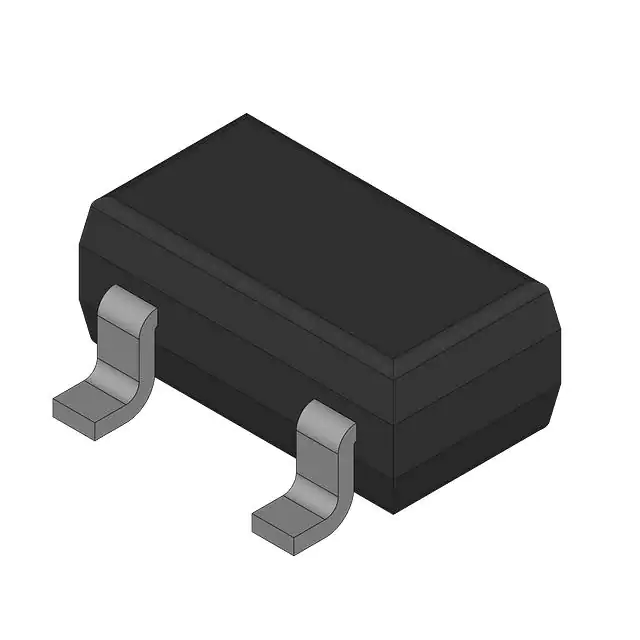

HZM6.2ZMWATL-ETVS DIODE 5.5VWM 3MPAK |
60,661 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Zener | 2 | - | 5.5V | 5.9V | - | - | - | No | General Purpose | 8.5pF @ 1MHz | - | - | - | Surface Mount | 3-MPAK |
|
|
NUP4304MR6T1TVS DIODE SC74-6 |
7,459 |
|
Datasheet |
SC-74, SOT-457 | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | - | 70V | - | - | - | No | General Purpose | 1.6pF @ 1MHz | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SC-74 |
|
|
EMI1051FCT5GEMI FILTER WITH ESD PROTECTION |
58,900 |
|
Datasheet |
3-XFDFN | - | Tape & Reel (TR) | Active | Zener | - | 2 | 5.5V (Max) | 6.1V | 10V | 22.5A (8/20µs) | - | No | General Purpose | 80pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 3-DSN (0.76x0.34) |
|
|
P6SMB27AT3G600 W TRANSIENT VOLTAGE SUPPRESS |
58,500 |
|
- |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1SMB12AT3GTVS DIODE 12VWM 19.9VC SMB |
52,250 |
|
Datasheet |
DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 30.2A | 600W | No | General Purpose | 1245pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
NNCD24J-T1-ATVS DIODE 24VWM 2-ULTRA |
47,920 |
|
Datasheet |
SOD-723 | - | Bulk | Obsolete | Zener | 1 | - | 24V | 22V | - | - | 85W | No | General Purpose | 20pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | 2-Ultra Super Mini Mold |
|
|
1SMC51AT3GTVS DIODE 51VWM 82.4VC SMC |
47,789 |
|
Datasheet |
DO-214AB, SMC | - | Bulk | Active | Zener | 1 | - | 51V | 56.7V | 82.4V | 18.2A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
|
NNCD6.8PL-T1-ATRANS VOLTAGE SUPPRESSOR DIODE |
42,000 |
|
Datasheet |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1SMB18AT3G600 W TRANSIENT VOLTAGE SUPPRESS |
35,740 |
|
Datasheet |
DO-214AA, SMB | SMB | Bulk | Active | Zener | 1 | - | 18V | 20V | 29.2V | 20.5A | 600W | No | General Purpose | 870pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
