Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

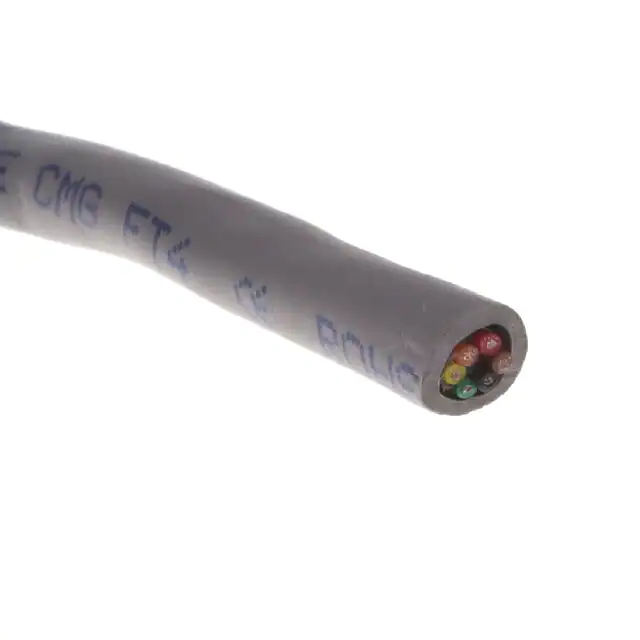

5677 SL002CABLE 6CON 26AWG SLATE SHLD |
2,249 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 6 | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.190" (4.83mm) | Foil | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
55/P1324-24-0/9-9CS3192CABLE 2COND 24AWG WHITE SHLD |
4,101 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 24 AWG | 19/36 | Copper Alloy, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.095" (2.41mm) | Braid | - | White | - | - | 600 V | 200°C | - | 0.0050" (0.127mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
5691 SL199MULT-PAIR 6COND 26AWG 1000=1000' |
4,758 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.210" (5.33mm) | Foil | - | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC1121-12-0/9-9CS2753CABLE 2COND 12AWG WHITE SHLD |
2,488 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 12 AWG | 37/28 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.233" (5.92mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
CF1945-000CABLE 2COND 12AWG WHITE SHLD |
1,165 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 12 AWG | 37/28 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.233" (5.92mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
55PC1121-12-2/6-9CS2502CABLE 2COND 12AWG WHITE SHLD |
1,362 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 12 AWG | 37/0.0126" | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.233" (5.92mm) | Braid | - | White | - | - | 600 V | -65°C ~ 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
77805WS 010100CABLE 5COND 18AWG BLK SHLD |
2,315 |
|
- |
MachFlex™ | Spool | Active | Multi-Conductor | 5 | 18 AWG | 105/38 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.453" (11.51mm) | Braid | 100.0' (30.5m) | Black | UL Style 2587 | Oil Resistant | - | -5°C ~ 90°C | Industrial, Signal, Control | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
79030 SL001CABLE 4COND 14AWG SLATE |
2,489 |
|
Datasheet |
EcoFlex® | Spool | Active | Multi-Conductor | 4 | 14 AWG | 41/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.307" (7.80mm) | - | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0350" (0.889mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
55A4821-12-9/96-9CS2275CABLE 2COND 12AWG WHITE |
4,502 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 12 AWG | 37/28 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.240" (6.10mm) | - | - | White | - | - | 600 V | 150°C | - | 0.0090" (0.229mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
1307C SL001MULTI-PAIR 12COND 22AWG |
2,042 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 12 (6 Pair Twisted) | 22 AWG | Solid | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.289" (7.34mm) | - | 1000.0' (304.8m) | Slate | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M2441 SL002CABLE 6COND 24AWG SLATE SHLD |
3,706 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 6 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.223" (5.66mm) | Foil, Braid | 500.0' (152.4m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

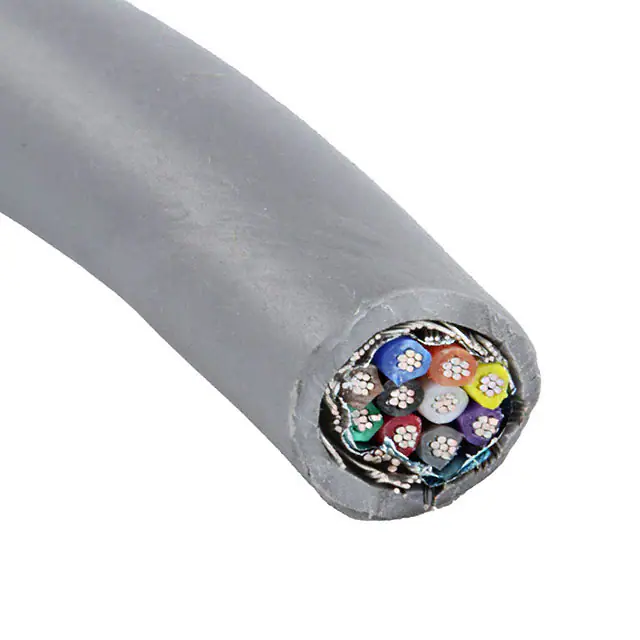

79255 SL001CABLE 10COND 24AWG SHLD |
3,406 |
|
Datasheet |
EcoFlex® | Spool | Active | Multi-Conductor | 10 | 24 AWG | 19/36 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.289" (7.34mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0350" (0.889mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
85815 BK001CABLE 15COND 18AWG BLACK |
4,909 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 15 | 18 AWG | 105/38 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.577" (14.66mm) | - | 1000.0' (304.8m) | Black | UL Style 2587 | - | 600 V | - | - | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
852604 BK199CABLE 4COND 26AWG BLACK |
1,330 |
|
Datasheet |
Xtra-Guard® Flex | Bulk | Active | Multi-Conductor | 4 | 26 AWG | 19/38 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.248" (6.30mm) | - | - | Black | UL Style 2587 | Oil Resistant | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
0015103/75LFLEX 150 3G0,75 |
2,924 |
|
- |
ÖLFLEX® 150 | Bulk | Active | Multi-Conductor | 3 | 19 AWG | - | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.264" (6.71mm) | - | - | Gray | - | - | 600 V | -40°C ~ 90°C | - | - | Poly-Vinyl Chloride (PVC) | - |
|
470055CY CL432CABLE 5COND 21AWG CLEAR SHLD 1M |
4,092 |
|
Datasheet |
Pro-Met® | Bulk | Active | Multi-Conductor | 5 | 21 AWG | 20/0.0070" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.336" (8.53mm) | Braid | 3.28' (1.00m) | Clear | - | Chemical Resistant, Oil Resistant, UV Resistant | 300 V | -40°C ~ 80°C | Industrial | 0.0354" (0.900mm) | Poly-Vinyl Chloride (PVC) | - |
|
470055CY GE432CABLE 5COND 21AWG GRAY SHLD 1M |
1,630 |
|
Datasheet |
Pro-Met® | Bulk | Active | Multi-Conductor | 5 | 21 AWG | 20/0.0070" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.336" (8.53mm) | Braid | 3.28' (1.00m) | Gray | - | Chemical Resistant, Oil Resistant, UV Resistant | 300 V | -40°C ~ 80°C | Industrial | 0.0354" (0.900mm) | Poly-Vinyl Chloride (PVC) | - |
|
6360 SL002CABLE 25COND 24AWG SHLD |
2,379 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 25 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.432" (10.97mm) | Foil, Braid | 500.0' (152.4m) | Slate | UL Style 2919 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | Foam Polyethylene (FPE) | - |
|
|
85007 BK199CABLE 7COND 20AWG BLACK 100' |
2,004 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 7 | 20 AWG | 63/38 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.388" (9.86mm) | - | 100.0' (30.5m) | Black | UL Style 2587 | - | 600 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
1485A 0107500MULTI-PAIR 17COND 16/22AWG |
1,886 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 17 (8.5 Pair) | 16 AWG, 22 AWG | 7/24; 7/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.633" (16.08mm) | Foil | 7500' (2286.0m) | Black | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -30°C ~ 105°C | Instrumentation | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
