Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
55FB1524-24-7L/7L6-0CABLE 2COND 24AWG BLACK SHLD |
3,570 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 24 AWG | 19/36 | Copper Alloy, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.122" (3.10mm) | Braid | - | Black | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
9367 0601000CABLE 3COND 14AWG CHRM SHD |
1,686 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 (1 Triad) | 14 AWG | 42/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.343" (8.71mm) | Foil | 1000.0' (304.8m) | Chrome | UL Style 2464 | Drain Wire, Rip Cord | - | -30°C ~ 105°C | Instrumentation | 0.0420" (1.067mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
81315.99.01CABLE 5COND 8AWG BLACK |
4,718 |
|
- |
- | Spool | Active | Multi-Conductor | 5 | 8 AWG | - | Copper, Annealed Bare | Super Vu-Tron® | 1.030" (26.16mm) | - | - | Black | - | - | 2 kV | -40°C ~ 90°C | - | 0.0600" (1.524mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|

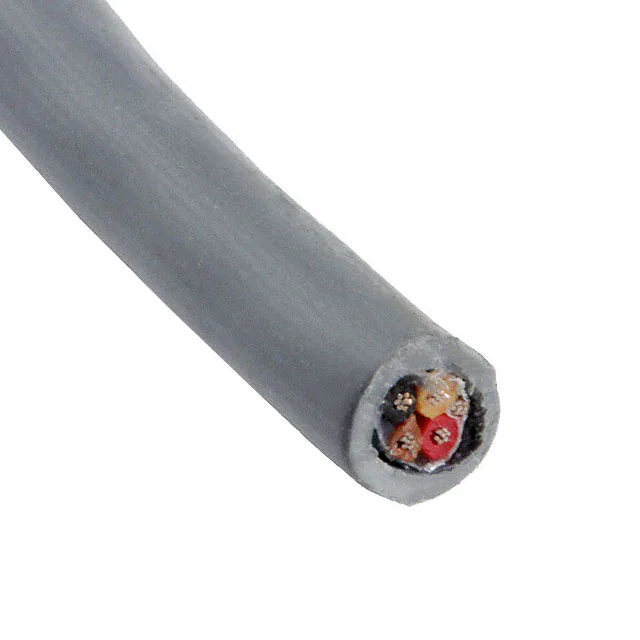

77143 SL001CABLE 4COND 14AWG SHLD |
1,534 |
|
Datasheet |
EcoCable® | Spool | Active | Multi-Conductor | 4 | 14 AWG | 41/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.305" (7.75mm) | Foil | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
30-02447CABLE 6COND 28AWG BLK SHLD METER |
4,516 |
|
Datasheet |
- | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 6 | 28 AWG | 19/40 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.150" (3.81mm) | Spiral | Enter Number of Meters in Order Quantity | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
73407WS 008100CABLE 7COND 14AWG GRAY SHLD |
4,979 |
|
- |
MachFlex™ | Spool | Active | Multi-Conductor | 7 | 14 AWG | 41/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.581" (14.76mm) | Braid | 100.0' (30.5m) | Gray | UL Style 2587 | Oil Resistant | 600 V | -5°C ~ 90°C | Industrial, Signal, Control | 0.0570" (1.448mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
9808 060500MULTI-PAIR 14COND 28AWG |
2,346 |
|
Datasheet |
Classics | Spool | Active | Multi-Pair | 14 (7 Pair Twisted) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.256" (6.50mm) | Foil, Braid | 500.0' (152.4m) | Chrome | UL Style 2960 | Drain Wire | - | -30°C ~ 60°C | Computer | 0.0350" (0.889mm) | Polypropylene (PP) | - |
|

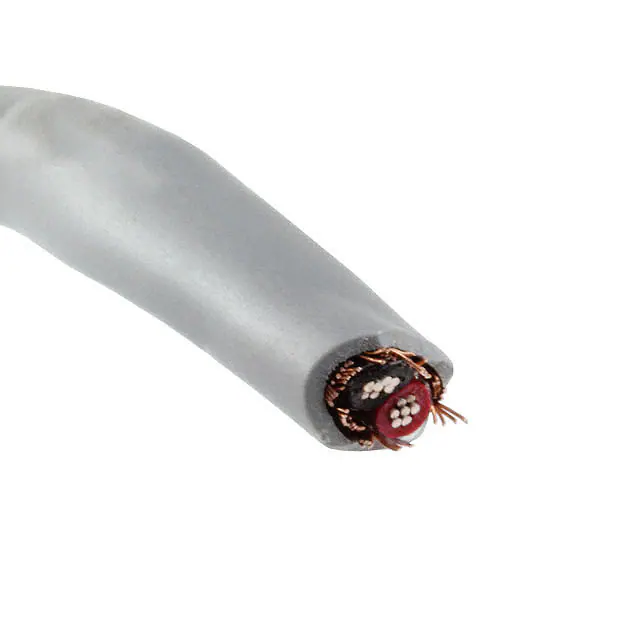

79121 SL001CABLE 2COND 14AWG SHLD |
3,794 |
|
Datasheet |
EcoFlex® | Spool | Active | Multi-Conductor | 2 | 14 AWG | 41/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.294" (7.47mm) | Braid | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0350" (0.889mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
M13179 SL199MULTI-PAIR 18COND 18AWG 3000' |
2,931 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 18 (9 Pair Twisted) | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.632" (16.05mm) | Foil | 3000' (914.4m) | Slate | UL Style 2919 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0470" (1.194mm) | Polyethylene (PE) | - |
|
|
M4700 SL199CABLE 15COND 18AWG SHLD 3000' |
2,273 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 15 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.436" (11.07mm) | Foil | 3000' (914.4m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M5662 SL002MULTI-PAIR 24COND 22AWG |
1,574 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 24 (12 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.496" (12.60mm) | Foil, Braid | 500.0' (152.4m) | Slate | UL Style 2343 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
5444 SL001CABLE 4COND 14AWG SLATE |
4,052 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 4 | 14 AWG | 41/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.464" (11.79mm) | - | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2501 | Biological Compatibility, Rip Cord | 600 V | -30°C ~ 105°C | Communication, Control | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
CU5525-000CABLE 2COND 12AWG WHITE SHLD |
2,537 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 12 AWG | 37/28 | Copper, Nickel Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.243" (6.17mm) | Braid | - | White | - | - | 600 V | 200°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
6321 SL001MULTI-PAIR 14COND 24AWG |
3,530 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 14 (7 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.464" (11.79mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2493 | Drain Wire | 300 V | -20°C ~ 75°C | - | 0.0480" (1.219mm) | Foam Polypropylene (FPP) | - |
|
|
1815P 01050004 FS PR #22 FEP SLF SLF |
1,041 |
|
Datasheet |
- | Bulk | Active | Multi-Pair | 8 (4 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.317" (8.05mm) | Foil | 5000' (1524.0m) | Black | - | - | 300 V | -40°C ~ 150°C | - | 0.0150" (0.381mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
30-02392CBL 9CON 20AWG BLK TPU |
1,613 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 9 | 20 AWG | 41/0.005" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.287" (7.29mm) | - | 502.0' (153.0m) | Black | UL Style 20280 | - | 300 V | -40°C ~ 80°C | - | 0.0299" (0.759mm) | Thermoplastic Elastomer (TPE) | - |
|
|
82A6063-22-MST3-9CABLE 3COND 22AWG WHITE SHLD |
3,945 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 22 AWG | 154/44 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.147" (3.73mm) | Double Braid | - | White | - | - | 600 V | 150°C | - | 0.0100" (0.254mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|

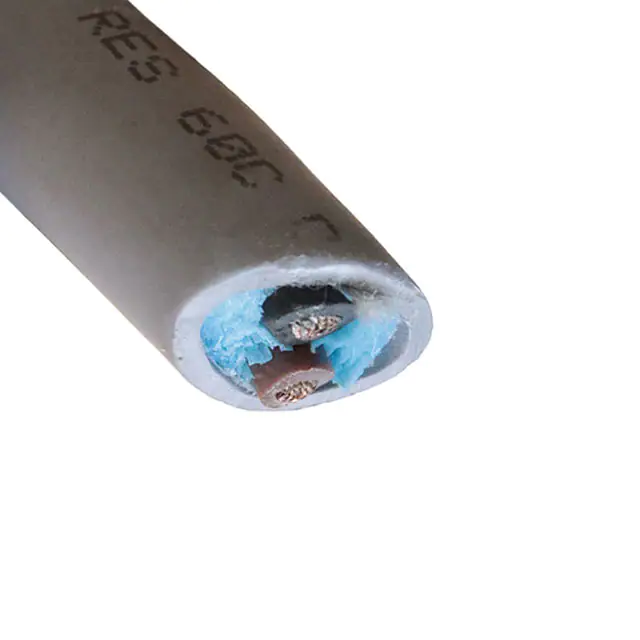

5442 SL002CABLE 2COND 14AWG SLATE |
1,885 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 2 | 14 AWG | 41/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.406" (10.31mm) | - | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2501 | Biological Compatibility, Rip Cord | 600 V | -30°C ~ 105°C | Communication, Control | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|

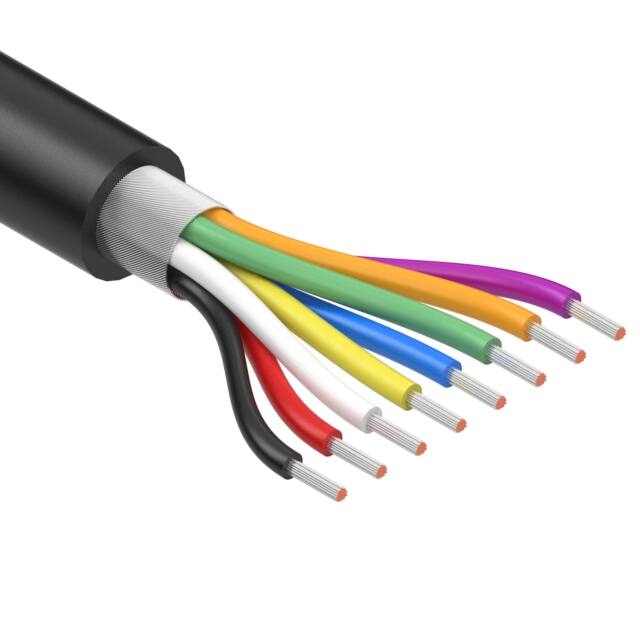

30-01877CABLE 8COND 20AWG BLACK SHLD |
4,593 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 8 | 20 AWG | 65/0.0039" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.252" (6.40mm) | Spiral | 502.0' (153.0m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0276" (0.700mm) | High Density Polyethylene (HDPE) | - |
|
|
5264C BK199MULTI-PAIR 8COND 24AWG BLK 1000' |
4,308 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.243" (6.17mm) | - | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
