Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M5661 SL001MULTI-PAIR 14COND 22AWG |
1,359 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 14 (7 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.402" (10.21mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2343 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M5660 SL199MULTI-PAIR 10COND 22AWG 3000' |
4,289 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 10 (5 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.377" (9.58mm) | Foil, Braid | 3000' (914.4m) | Slate | UL Style 2343 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
76705TS 008100MULTI-PAIR 10CON 22AWG GRAY |
4,368 |
|
Datasheet |
MachFlex™ | Spool | Active | Multi-Pair | 10 (5 Pair) | 22 AWG | 19/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.350" (8.89mm) | Foil, Braid | 100.0' (30.5m) | Gray | UL Style 20006 | Drain Wire, Oil Resistant | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC2123-16-6/9-9CS2950CABLE 2COND 16AWG WHITE SHLD |
3,976 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 16 AWG | 19/0.0113" | Copper, Nickel Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.156" (3.96mm) | Braid | - | White | - | - | 600 V | -65°C ~ 200°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
55K9082-24-2/6CABLE 2COND 24AWG |
1,775 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 24 AWG | 19/0.005" | Copper, Nickel Coated | - | 0.080" (2.03mm) | - | - | - | - | - | 600 V | -65°C ~ 180°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
02645.85.05CABLE 3COND 10AWG YELLOW |
3,948 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 10 AWG | 259/34 | Copper, Tinned | Super Vu-Tron® Supreme | 0.660" (16.76mm) | - | 250.0' (76.2m) | Yellow | - | - | 600 V | -50°C ~ 105°C | - | 0.0450" (1.143mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
76112WS 008100CABLE 12COND 26AWG CHRM SHD |
1,414 |
|
Datasheet |
MachFlex™ | Spool | Active | Multi-Conductor | 12 | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.303" (7.70mm) | Foil, Spiral | 100.0' (30.5m) | Chrome | - | Oil Resistant | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
2297801-1CABLE CAT7 8COND 22AWG SHLD |
2,226 |
|
Datasheet |
- | Spool | Obsolete | Multi-Pair, Cat7 | 8 (4 Pair Twisted) | 22 AWG | 7/0.0096" | Copper, Tinned | Low Smoke Zero Halogen (LSZH) | 0.390" (9.91mm) | Foil, Braid | - | - | - | - | 300 V | -20°C ~ 80°C | Communication | 0.0394" (1.001mm) | Foam Polyethylene (FPE) | - |
|
|
1554112001CABLE 3COND 20AWG RED SHLD 300M |
1,889 |
|
- |
Flamar 155411 | Bulk | Active | Multi-Conductor | 3 | 20 AWG | 19/0.0079" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.303" (7.70mm) | Foil, Braid | 984.3' (300.0m) | Red | UL Style 2464 | Drain Wire | 300 V | 5°C ~ 60°C | Industrial, Network | 0.0236" (0.600mm) | Foam Polyethylene (FPE) | - |
|
|
1554116008CABLE CAT5E 4CON 24AWG TEAL 500M |
1,766 |
|
Datasheet |
Flamar 155411 | Bulk | Active | Multi-Pair, Cat5e | 4 (2 Pair Twisted) | 24 AWG | 19/0.0047" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.276" (7.01mm) | Foil, Braid | 1640.4' (500.0m) | Teal | UL Style 2464 | - | 300 V | 5°C ~ 60°C | Industrial, Network | 0.0110" (0.279mm) | Polyethylene (PE) | - |
|
|
55A0831-12-MST3CS2275CABLE 3COND 12AWG |
2,166 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 (1 Triad Twisted) | 12 AWG | 37/28 | Copper, Tinned | - | 0.240" (6.10mm) | - | - | - | - | - | 600 V | 150°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
MP16112LW YL199CABLE 12COND 16AWG YELLOW 1000' |
4,532 |
|
Datasheet |
P | Spool | Active | Multi-Conductor | 12 | 16 AWG | 26/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.569" (14.45mm) | - | 1000.0' (304.8m) | Yellow | - | - | 600 V | -25°C ~ 90°C | - | 0.0650" (1.651mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
MP16112RW YL199CABLE 12COND 16AWG YELLOW 1000' |
3,160 |
|
Datasheet |
P | Spool | Active | Multi-Conductor | 12 | 16 AWG | 26/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.569" (14.45mm) | - | 1000.0' (304.8m) | Yellow | - | - | 600 V | -25°C ~ 90°C | - | 0.0650" (1.651mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
MP16112KW YL199CBL 12COND 16AWG YLW 1000=1000' |
1,207 |
|
Datasheet |
P | Spool | Active | Multi-Conductor | 12 | 16 AWG | 26/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.569" (14.45mm) | - | - | Yellow | - | - | 600 V | -25°C ~ 90°C | - | 0.0650" (1.651mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M1213 WH002CABLE 3COND 24AWG WHITE SHLD |
3,553 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 24 AWG | 19/36 | Copper, Tinned | Polytetrafluoroethylene (PTFE) | 0.143" (3.63mm) | Braid | 500.0' (152.4m) | White | - | - | 600 V | -55°C ~ 200°C | - | 0.0118" (0.300mm) | Polytetrafluoroethylene (PTFE) | - |
|
|
2804RW 0101000COMPOSITE CAMERA CABLE WB RSR |
1,148 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 8 (2+4+2 Fiber) | 20 AWG, 24 AWG | 7/32; 19/32 | Copper, Tinned | Chlorinated Polyethylene (CPE) | - | Braid | 1000.0' (304.8m) | Black | UL Style CMR | Water-Blocked | 300 V | -40°C ~ 70°C | - | - | Poly-Vinyl Chloride (PVC) | - |
|
|
M64807 SL001CABLE 9COND 22AWG SHLD |
2,079 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 9 | 22 AWG | 7/28 | Copper, Tinned | Fluorinated Ethylene-Propylene (FEP) | 0.181" (4.60mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 150°C | - | 0.0118" (0.300mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
M38950 SL001CABLE 50COND 24AWG SLATE |
1,954 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 50 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.426" (10.82mm) | - | 1000.0' (304.8m) | Slate | UL Style 2464 | - | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

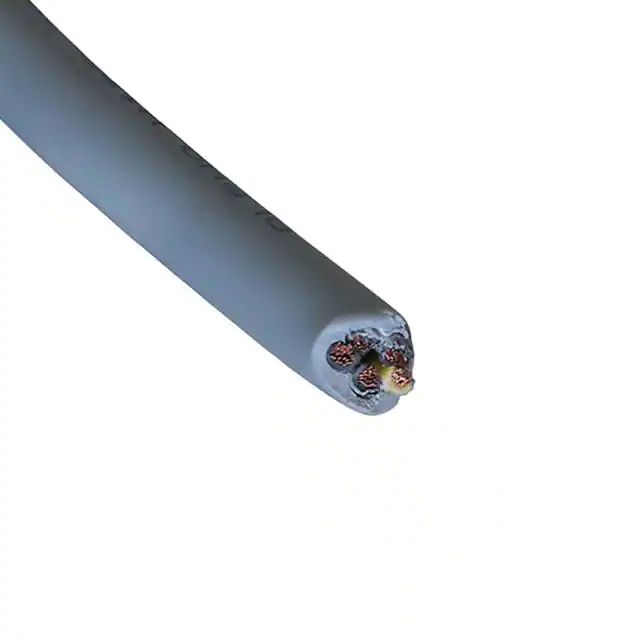

470057YY GE033CABLE 5COND 19AWG GRAY |
2,533 |
|
Datasheet |
Pro-Met® | Spool | Discontinued at Digi-Key | Multi-Conductor | 5 | 19 AWG | 30/0.0070" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.267" (6.78mm) | - | 328.1' (100.0m) | Gray | - | Chemical Resistant, Oil Resistant, UV Resistant | 300 V | -40°C ~ 80°C | Industrial | 0.0303" (0.770mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55FB1521-20-FLT2-0CS2173CABLE 2COND 20AWG BLACK SHLD |
1,805 |
|
Datasheet |
Electroloss | Bulk | Active | Multi-Conductor | 2 | 20 AWG | 19/32 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.150" (3.81mm) | Braid | - | Black | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
