Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
45121 YL199CABLE 2COND 22AWG YLW SHLD 1000' |
3,001 |
|
Datasheet |
Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.246" (6.25mm) | Foil, Braid | 1000.0' (304.8m) | Yellow | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|
|
85223CY BK002CABLE 3COND 22AWG BLACK SHLD |
3,845 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 3 | 22 AWG | 41/38 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.329" (8.36mm) | Braid | 500.0' (152.4m) | Black | UL Style 2587 | Oil Resistant | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55/1822-26-2/9-9CABLE 2COND 26AWG WHITE SHLD |
1,220 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 26 AWG | 19/38 | Copper, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.113" (2.87mm) | Braid | - | White | - | - | 600 V | 200°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
1552200212CABLE 2COND 16AWG BLACK 500M |
1,565 |
|
Datasheet |
Flamar 155220 | Bulk | Active | Multi-Conductor | 2 | 16 AWG | 81/0.0059" | Copper, Bare | Weld-Slag Oil Resistant (WSOR) | 0.280" (7.11mm) | - | 1640.4' (500.0m) | Black | UL Style 21215 | - | 600 V | -25°C ~ 80°C | Industrial, Signal, Control | 0.0177" (0.450mm) | Thermoplastic Elastomer (TPE) | - |
|
|
1552200215CABLE 2COND 16AWG GRAY 500M |
3,167 |
|
Datasheet |
Flamar 155220 | Bulk | Active | Multi-Conductor | 2 | 16 AWG | 81/0.0059" | Copper, Bare | Weld-Slag Oil Resistant (WSOR) | 0.280" (7.11mm) | - | 1640.4' (500.0m) | Gray | UL Style 21215 | - | 600 V | -25°C ~ 80°C | Industrial, Signal, Control | 0.0177" (0.450mm) | Thermoplastic Elastomer (TPE) | - |
|
|
9842ZH 060500MULTI-PAIR 4CON 24AWG CHROM |
2,141 |
|
- |
- | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Low Smoke Zero Halogen (LSZH) | 0.323" (8.20mm) | Foil, Braid | 500.0' (152.4m) | Chrome | UL Style 2919 | Drain Wire | 300 V | -20°C ~ 80°C | Computer | 0.0350" (0.889mm) | Polyethylene (PE) | - |
|
|
M3838 BK002CABLE 15COND 16AWG BLACK |
4,202 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 15 | 16 AWG | 7/0.0192" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.588" (14.94mm) | - | 500.0' (152.4m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|

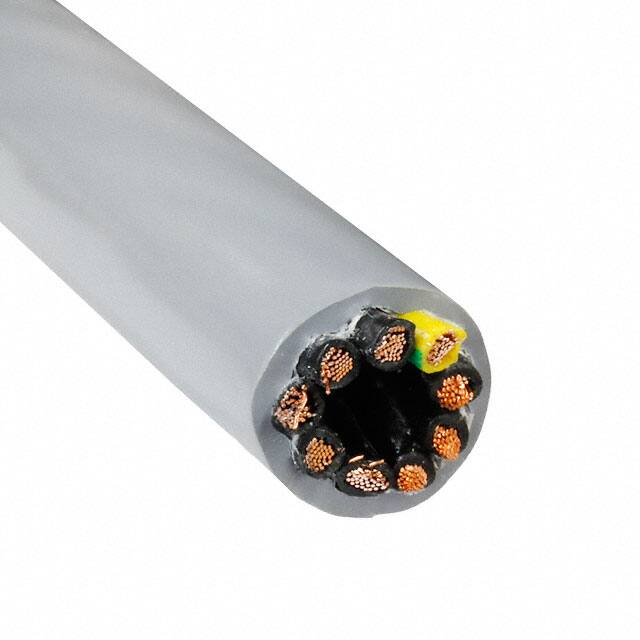

80012 SL005CABLE 9COND 24AWG SLATE |
1,589 |
|
Datasheet |
EcoFlex® PUR | Spool | Active | Multi-Conductor | 9 | 24 AWG | 19/36 | Copper, Tinned | Polyurethane (PU) | 0.247" (6.27mm) | - | 100.0' (30.5m) | Slate | - | - | 600 V | -50°C ~ 90°C | - | 0.0319" (0.810mm) | Polyphenylene Ether (PPE) | - |
|
|
M5651 SL005MULTI-PAIR 14COND 24AWG |
2,339 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 14 (7 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.373" (9.47mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2343 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5661 BK199CABLE 4COND 14AWG BLK SHLD 1000' |
1,928 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 14 AWG | 41/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.418" (10.62mm) | Foil, Braid | 1000.0' (304.8m) | Black | - | Drain Wire | 600 V | -25°C ~ 90°C | - | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC) | - |
|
3476C SL001MULTI-PAIR 12COND 28AWG |
1,624 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 12 (6 Pair Twisted) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.275" (6.99mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | Communication, Control | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
89094.38.01CABLE 4COND 10AWG BLACK |
1,336 |
|
- |
Ultra Flex® | Spool | Active | Multi-Conductor | 4 | 10 AWG | 104/30 | Copper, Annealed Bare | Thermoplastic Elastomer (TPE) | 0.718" (18.24mm) | - | 500.0' (152.4m) | Black | - | Oil Resistant | 600 V | -50°C ~ 105°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|
|
01825.41.01CABLE 3COND 6AWG BLACK |
4,808 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 6 AWG | 101/26 | Copper, Bare | Carolprene | 0.790" (20.07mm) | - | 1000.0' (304.8m) | Black | - | - | 600 V | -40°C ~ 90°C | Cord and Cordset | 0.0500" (1.270mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
79210 SL001CABLE 2COND 18AWG SHLD |
3,031 |
|
Datasheet |
EcoFlex® | Spool | Active | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.242" (6.15mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0350" (0.889mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
8403 0605003 #20 PE SHLD PVC |
3,733 |
|
Datasheet |
- | Spool | Active | Microphone | 3 | 20 AWG | 19/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.244" (6.20mm) | Double Braid | 500.0' (152.4m) | Chrome | - | - | 600 V | -20°C ~ 80°C | Audio | 0.0330" (0.838mm) | Polyethylene (PE) | - |
|
44AM1141-20-MST4-9CS2275CABLE 4COND 20AWG WHITE SHLD 1' |
3,271 |
|
Datasheet |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 4 | 20 AWG | 19/32 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.166" (4.22mm) | Braid | 1.00' (0.30m) | White | - | - | 600 V | 150°C | - | 0.0050" (0.127mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
M13515 SL199CABLE 15COND 18AWG SLATE 3000' |
4,572 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 15 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.485" (12.32mm) | - | 3000' (914.4m) | Slate | UL Style 2598 | - | 300 V | -20°C ~ 80°C | - | 0.0450" (1.143mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC1122-16-9/96-9CABLE 2COND 16AWG WHITE SHLD |
2,660 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 16 AWG | 19/29 | Copper, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.164" (4.17mm) | Braid | - | White | - | - | 600 V | 200°C | - | 0.0070" (0.178mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
55PC1122-16-5/9-3CABLE 2COND 16AWG ORANGE SHLD |
2,586 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 16 AWG | 19/29 | Copper, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.164" (4.17mm) | Braid | - | Orange | - | - | 600 V | 200°C | - | 0.0070" (0.178mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
57628 SL002MULTI-PAIR 16COND 22AWG |
3,951 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 16 (8 Pair Twisted) | 22 AWG | 7/28 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.285" (7.24mm) | Foil | 500.0' (152.4m) | Slate | - | Drain Wire | 300 V | -5°C ~ 75°C | - | 0.0154" (0.390mm) | Poly-Vinyl Chloride (PVC) | - |
