Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
55PC6194-24-MST4-9CS2861CABLE 4COND 24AWG WHITE SHLD |
1,827 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 4 | 24 AWG | 19/36 | Copper Alloy, Nickel Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.153" (3.89mm) | Double Braid | - | White | - | - | 600 V | 200°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
6395 SL001MULTI-PAIR 18COND 28AWG |
2,174 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 18 (9 Pair Twisted) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.305" (7.75mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2960 | Drain Wire | 300 V | -20°C ~ 75°C | - | 0.0350" (0.889mm) | Polyethylene (PE) | - |
|
|
9581 0021000CABLE 2COND 14AWG RED SHLD |
4,389 |
|
Datasheet |
Classics | Spool | Active | Multi-Conductor | 2 | 14 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.306" (7.77mm) | Foil | 1000.0' (304.8m) | Red | UL Style 2464 | - | 300 V | -40°C ~ 105°C | Alarm, Safety | 0.0420" (1.067mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
1067 SL002CABLE 7COND 16AWG SLATE |
2,424 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 7 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.468" (11.89mm) | - | 500.0' (152.4m) | Slate | - | - | 600 V | -20°C ~ 80°C | Communication, Control | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC) | - |
|

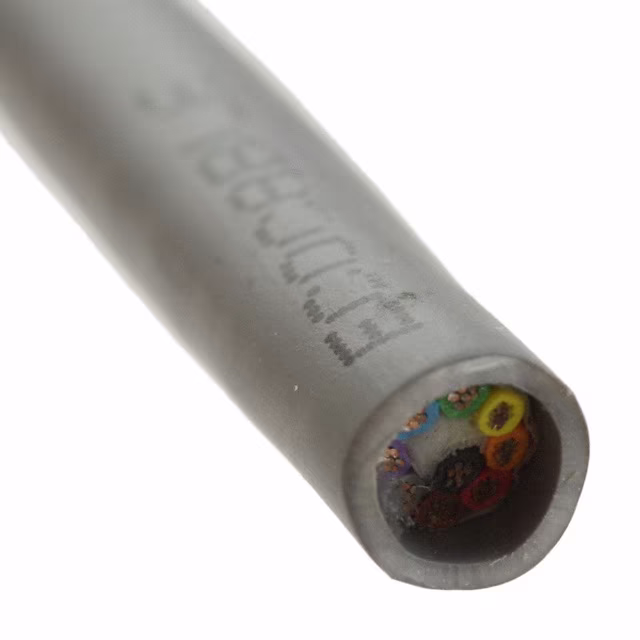

77011 SL001CABLE 9COND 22AWG SLATE |
1,954 |
|
Datasheet |
EcoCable® | Spool | Active | Multi-Conductor | 9 | 22 AWG | 7/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.251" (6.38mm) | - | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
30-02689CBL 9CON 24AWG BLK BIO |
1,498 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 9 | 24 AWG | 41/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.205" (5.21mm) | - | 502.0' (153.0m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0236" (0.600mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02833CBL 9CON 24AWG WHT BIO |
4,628 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 9 | 24 AWG | 41/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.205" (5.21mm) | - | 502.0' (153.0m) | White | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0236" (0.600mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02761CBL 9CON 24AWG GRY BIO |
1,645 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 9 | 24 AWG | 41/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.205" (5.21mm) | - | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0236" (0.600mm) | High Density Polyethylene (HDPE) | - |
|

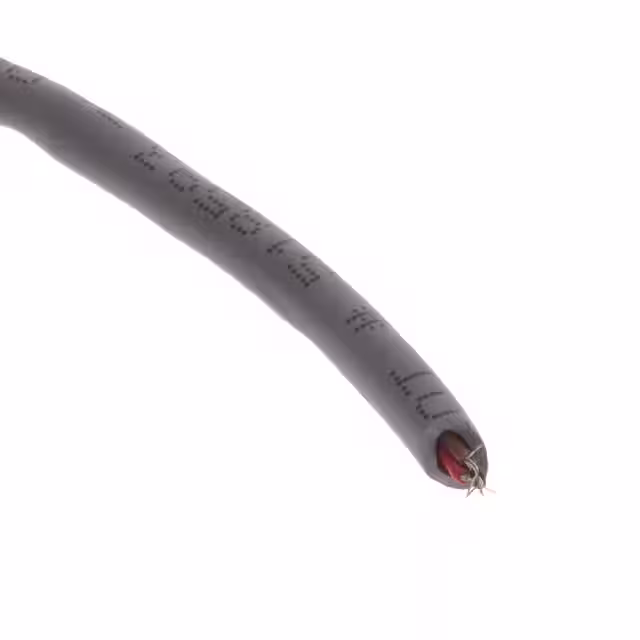

5921 SL002CABLE 3COND 28AWG SLATE |
1,343 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 3 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.144" (3.66mm) | - | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
65412 SL001CABLE 12COND 14AWG SLATE |
4,781 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 12 | 14 AWG | 41/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.667" (16.94mm) | - | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0850" (2.159mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M4775 SL199MULTI-PAIR 18COND 22AWG 3000' |
2,877 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 18 (9 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.369" (9.37mm) | Foil | 3000' (914.4m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M13112 SL001MULTI-PAIR 24COND 22AWG |
3,043 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 24 (12 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.466" (11.84mm) | Foil | 1000.0' (304.8m) | Slate | UL Style 2919 | - | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | Polypropylene (PP) | - |
|
30-00366CABLE 3COND 18AWG WHITE 1M |
2,060 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Multi-Conductor | 3 | 18 AWG | 41/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.216" (5.49mm) | - | 3.28' (1.00m) | White | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-00365CABLE 3COND 18AWG BLACK 1M |
1,582 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Multi-Conductor | 3 | 18 AWG | 41/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.216" (5.49mm) | - | 3.28' (1.00m) | Black | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01059CABLE 6COND 28AWG BLACK SHLD 1M |
1,785 |
|
Datasheet |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 6 | 28 AWG | 7/0.0047" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.213" (5.41mm) | Foil, Braid | 3.28' (1.00m) | Black | UL Style 2464 | Drain Wire | 300 V | -25°C ~ 80°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
CB4176-000CABLE 2COND 26AWG |
3,177 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 26 AWG | 19/38 | Copper Alloy, Silver Coated | - | 0.055" (1.40mm) | - | - | - | - | - | 600 V | 200°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
3492C SL001MULTI-PAIR 4COND 28AWG |
1,532 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.230" (5.84mm) | Foil, Braid | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 80°C | Communication, Control | 0.0350" (0.889mm) | Polypropylene (PP) | - |
|
78340 SL001CABLE 10COND 22AWG SHLD |
1,127 |
|
Datasheet |
EcoCable® Mini | Spool | Active | Multi-Conductor | 10 | 22 AWG | 19/34 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.249" (6.32mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
M12105KW SL199CABLE 5COND 12AWG SLATE 1000' |
4,042 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 5 | 12 AWG | 65/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.499" (12.67mm) | - | 1000.0' (304.8m) | Slate | - | - | 600 V | -25°C ~ 90°C | - | 0.0650" (1.651mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M12105LW SL199CABLE 5COND 12AWG SLATE 1000' |
3,827 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 5 | 12 AWG | 65/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.499" (12.67mm) | - | 1000.0' (304.8m) | Slate | - | - | 600 V | -25°C ~ 90°C | - | 0.0650" (1.651mm) | Poly-Vinyl Chloride (PVC) | - |
