Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-700-38-M025COAX CBL SMB TO SMB |
1,433 |
|
Datasheet |
SMB | Bag | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-58 | 50 Ohms | - | 50 Ohms | 4 GHz | Black | - | -40°C ~ 85°C | - | - |
|
095-902-569-048COAX CBL SMA TO SMA |
4,823 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | - | -65°C ~ 165°C | - | - |
|
415-0006-024COAX CBL SMB TO SMB |
2,819 |
|
Datasheet |
- | Bulk | Active | SMB to SMB | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
PT19515SMBFKRATCOAX CBL SMB TO TNC |
2,624 |
|
- |
- | Bulk | Active | SMB to TNC | TNC Plug | Male | - | - | - | - | - | - | - | RG-195A | - | - | - | - | - | - | - | - | - |
|
|
095-902-527-048COAX CBL SMA TO N-TYPE |
3,663 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0" (1.2m) 4.0' | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | - | - | - | - | - |
|
175101-17-06.00COAX CBL N-TYPE TO N-TYPE |
1,443 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | LMR 200 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
|
095-850-301-018COAX CBL BNC TO MMCX |
3,227 |
|
Datasheet |
- | Bag | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
245101-04-96.00COAX CBL BNC TO SMA |
2,808 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 96.0" (2.4m) 8.0' | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
095-850-236-018COAX CBL BNC TO SMB |
3,359 |
|
Datasheet |
- | Bag | Active | BNC to SMB | BNC Plug | Male | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
|
0732307224CASMA P STR TO SMA P STR.08618IN |
3,370 |
|
- |
73230 | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | 0.086" Flexible Cable | - | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
|
CBL-62-3FT-S1-S33 FT 0 IN RG-316, SMA MALE & RIG |
1,774 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CC59B-MF-1COAX CBL BNC TO BNC |
1,763 |
|
- |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-59B | 75 Ohms | 75 Ohms | 50 Ohms | - | Black | - | -40°C ~ 80°C | - | - |
|
|
CCTN58-10BCOAX CBL BNC TO BNC |
2,491 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | - | Gray | - | - | - | - |
|

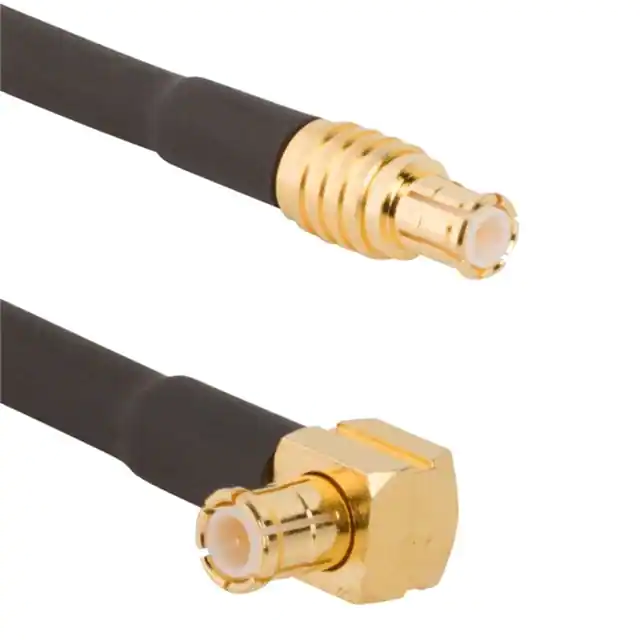

095-900-546M300COAX CBL MCX TO MCX |
2,167 |
|
Datasheet |
MCX | Bag | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CBL-241-5.5IN-N1-T1COAX CBL N-TYPE TO TNC |
2,364 |
|
Datasheet |
CBL | Bulk | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 5.500" (139.70mm) | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-241-5.5IN-N1-N1COAX CBL N-TYPE TO N-TYPE |
4,320 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 5.500" (139.70mm) | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
415-0047-060COAX CBL BNC TO BNC |
1,506 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | Belden 8218 | 75 Ohms | 75 Ohms | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
CBL-240-12FT-S1-S4COAX CBL SMA TO SMA |
1,572 |
|
Datasheet |
CBL | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-12FT-N1-N1COAX CBL N-TYPE TO N-TYPE |
2,342 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-12FT-M1-N1COAX CBL N-TYPE TO UHF MINI |
1,993 |
|
Datasheet |
CBL | Bulk | Active | N-Type to UHF, Mini | N-Type Plug | Male | Free Hanging (In-Line) | - | UHF, Mini Plug | Male | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
