Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-275-018COAX CBL TNC TO TNC |
4,072 |
|
Datasheet |
TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-142 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
CTL1B-5COAX CBL BNC TO BNC |
1,101 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | - | 75 Ohms | - | - | Black | - | - | - | - |
|
336206-12-0100COAX CBL U.FL AMC TO RP-TNC |
4,289 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to RP-TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
415-0069-MM500COAX CBL MMCX TO MMCX |
1,143 |
|
Datasheet |
- | Bulk | Active | MMCX to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
|

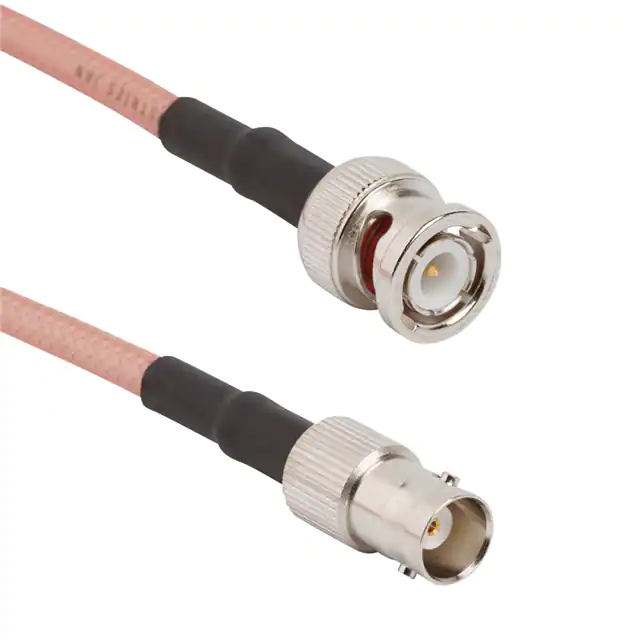

095-850-267M075COAX CBL BNC TO BNC |
3,848 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|
|
CO-174SMAZBNC-010COAX CBL BNC TO SMA |
2,811 |
|
- |
- | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
CBL-62-50CM-S1-S150 CENTIMETERS RG-316, SMA MALE |
1,513 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CBL-240-2.5M-N1-S1COAX CBL SMA TO N-TYPE |
2,130 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 0.079" (2.00mm) | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
095-850-313-300COAX CBL MHF1 LK TO RP-TNC |
1,112 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to RP-TNC | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
|
095-850-164-048COAX CBL BNC TO BNC |
2,173 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | Belden 1855A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
336306-13-0200COAX CBL U.FL AMC TO RP-SMA |
2,527 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | - | - | - | - | - | - |
|
095-850-268M075COAX CBL BNC TO BNC |
1,118 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 80°C | - | - |
|
|
CBL-02-84-S2-S5COAX CBL RP-SMA TO RP-SMA |
1,010 |
|
Datasheet |
CBL | Bulk | Active | RP-SMA to RP-SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 84.0" (2.1m) 7.0' | LMR 195 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CA-FJFJ-ZZ00430WPCOAX CBL FAKRA TO FAKRA |
4,695 |
|
Datasheet |
- | Bag | Active | Fakra to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-316 | 50 Ohms | - | - | - | Brown | - | - | - | - |
|
095-700-37-072COAX CBL SMB TO SMB |
3,444 |
|
Datasheet |
SMB | Bag | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-174 | 50 Ohms | - | 50 Ohms | 4 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CBL-400-3FT-N4-S2COAX CBL RP-SMA TO N-TYPE |
2,137 |
|
Datasheet |
CBL | Bulk | Active | RP-SMA to N-Type | RP-SMA Plug | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | PFP 400 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-400-3FT-N1-N1COAX CBL N-TYPE TO N-TYPE |
3,355 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | PFP 400 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-400-3FT-N1-S5COAX CBL RP-SMA TO N-TYPE |
1,365 |
|
Datasheet |
CBL | Bulk | Active | RP-SMA to N-Type | RP-SMA Jack | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | PFP 400 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-400-3FT-N1-T1COAX CBL N-TYPE TO TNC |
3,759 |
|
Datasheet |
CBL | Bulk | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | PFP 400 | - | - | - | - | Black | - | - | - | - |
|
415-0011-012COAX CBL SMB MINI-SMB MINI |
1,700 |
|
Datasheet |
- | Bulk | Active | SMB Mini to SMB Mini | SMB Mini Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Mini Plug, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-179 DS | 75 Ohms | 75 Ohms | 75 Ohms | 2 GHz | White | Shielded | - | - | - |
