Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-311-300COAX CBL MHF1 LK TO TNC |
2,282 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
|
|
095-850-314-250COAX CBL MHF1 LK TO RP-TNC |
4,613 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to RP-TNC | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
|
|
CBL-60-17FT-B1-XX17 FT 0 IN RG-58/U, BNC MALE & N |
3,219 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CBL-60-17FT-N1-P1COAX CBL N-TYPE TO PL259 |
1,259 |
|
Datasheet |
CBL | Bulk | Active | N-Type to PL259 | N-Type Plug | Male | Free Hanging (In-Line) | - | PL259 Plug | Male | Free Hanging (In-Line) | - | 204.0" (5.2m) 17.0' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CBL-240-7FT-S1-S2COAX CBL RP-SMA TO SMA |
3,636 |
|
Datasheet |
CBL | Bulk | Active | RP-SMA to SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 84.0" (2.1m) 7.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-7FT-N1-T1COAX CBL N-TYPE TO TNC |
1,404 |
|
Datasheet |
CBL | Bulk | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 84.0" (2.1m) 7.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CO-058NTYPEMM-010COAX CBL N-TYPE TO N-TYPE |
3,112 |
|
- |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CBL-62-16IN-S1-S11FT 4IN RG316, SMA MALE & SMA MA |
2,350 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
095-850-258-018COAX CBL BNC TO BNC |
1,414 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
CBL-62-26IN-S1-S32FT 2IN RG316, SMA MALE & SMA R/ |
3,019 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
095-850-266-024COAX CBL BNC TO BNC |
1,856 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|
|
095-902-527-012COAX CBL SMA TO N-TYPE |
3,225 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | - | - | - | - | - |
|
|
CBL-195-6M-N1-N1COAX CBL N-TYPE TO N-TYPE |
1,554 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 236.2" (6.0m) 19.7' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-6M-N1-S1COAX CBL SMA TO N-TYPE |
1,095 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 236.2" (6.0m) 19.7' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CCF59-3COAX CBL F-TYPE TO F-TYPE |
3,815 |
|
- |
- | Bag | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-59A | - | - | 75 Ohms | - | Black | - | - | - | - |
|
135113-01-24.00COAX CBL SMA TO SMA |
2,792 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
415-0063-012COAX CBL N-TYPE TO N-TYPE |
1,515 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-213 | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|
|
CBL-12-236-N3-S1COAX CBL SMA TO N-TYPE |
2,200 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 236.0" (6.0m) 19.7' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|

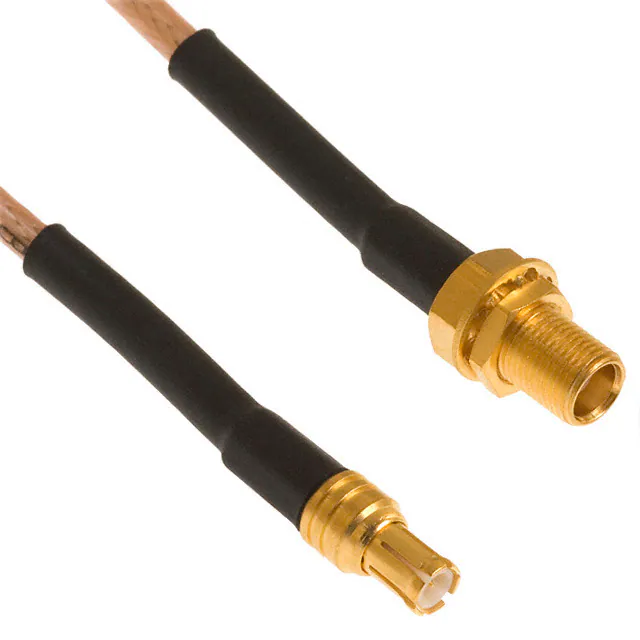

415-0016-036COAX CBL MCX TO MCX |
1,457 |
|
Datasheet |
- | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Socket | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00" (914.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|
|
095-850-258M050COAX CBL BNC TO BNC |
3,683 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
