Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

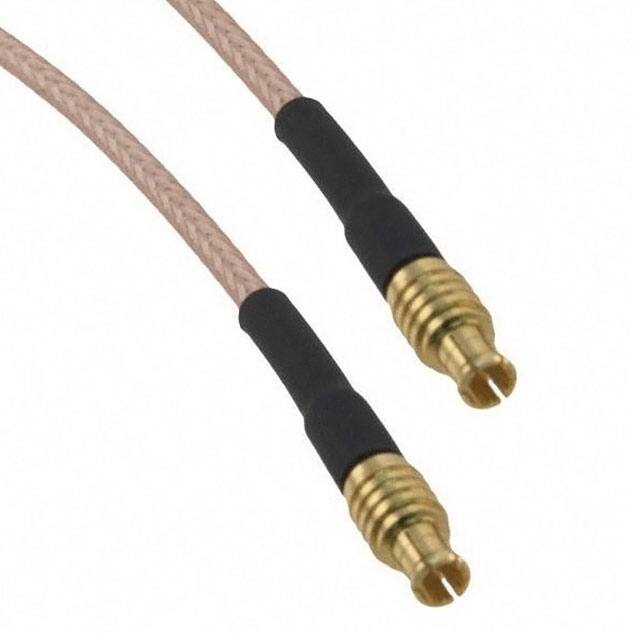

255101-08-48.00COAX CBL MCX TO MCX |
1,044 |
|
Datasheet |
- | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-178 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
095-902-476-012COAX CBL SMA TO SMA |
1,173 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 195 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
CO-059BNCX200-012COAX CBL BNC TO BNC |
1,734 |
|
- |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | RG-59 | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
415-0040-048COAX CBL SMA TO SMA |
4,151 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Gray | Shielded | - | - | - |
|
|
IJ5C-02-0300-S-S-2COAX CBL IJ5C TO CABLE |
2,555 |
|
Datasheet |
ISORATE® IJ5C | Bulk | Active | IJ5C to Cable | IJ5C Jack | Female | Free Hanging (In-Line) | - | Cable (Round), Stripped & Tinned | - | - | - | - | RG-316 | 50 Ohms | - | 50 Ohms | 9.9 GHz | Amber | - | -40°C ~ 90°C | - | - |
|
|
CBL-195-20FT-S2-S5COAX CBL RP-SMA TO RP-SMA |
3,320 |
|
Datasheet |
CBL | Bulk | Active | RP-SMA to RP-SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-20FT-N1-N1COAX CBL N-TYPE TO N-TYPE |
3,938 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-20FT-S1-S4COAX CBL SMA TO SMA |
4,731 |
|
Datasheet |
CBL | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-20FT-F4-S1COAX CBL SMA TO FME |
2,839 |
|
Datasheet |
CBL | Bulk | Active | SMA to FME | SMA Plug | Male | Free Hanging (In-Line) | - | FME Jack | Female | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-20FT-N1-S1COAX CBL SMA TO N-TYPE |
3,004 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-20FT-S1-S1COAX CBL SMA TO SMA |
1,505 |
|
Datasheet |
CBL | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
2249-E-96COAX CBL BNC TO BNC |
1,512 |
|
- |
- | - | Obsolete | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 96.0" (2.4m) 8.0' | RG-59B | 75 Ohms | - | 75 Ohms | - | Black | Shielded | - | - | - |
|
|
CBL-62-19IN-S1-S11FT 7IN RG316, SMA MALE & SMA MA |
2,044 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PT19510NSMCOAX CBL SMA TO N-TYPE |
4,686 |
|
- |
- | Bulk | Active | SMA to N-Type | SMA Plug | Male | - | - | N-Type Plug | Male | - | - | - | RG-195A | - | - | - | - | - | - | - | - | - |
|
095-700-37-M150COAX CBL SMB TO SMB |
4,299 |
|
Datasheet |
SMB | Bag | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | RG-174 | 50 Ohms | - | 50 Ohms | 4 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
095-850-313-250COAX CBL MHF1 LK TO RP-TNC |
2,437 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to RP-TNC | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
|
115101-35-30.00COAX CBL BNC TO BNC |
2,290 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 30.00" (762.00mm) | Belden 179DT | 75 Ohms | 75 Ohms | 75 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
095-850-315-300COAX CBL MHF1 LK TO RP-TNC |
3,140 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to RP-TNC | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
|
|
095-850-310-300COAX CBL MHF1 LK TO TNC |
3,828 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
|
415-0070-MM750COAX CBL SMA TO MMCX |
4,721 |
|
Datasheet |
- | Bulk | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
