Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

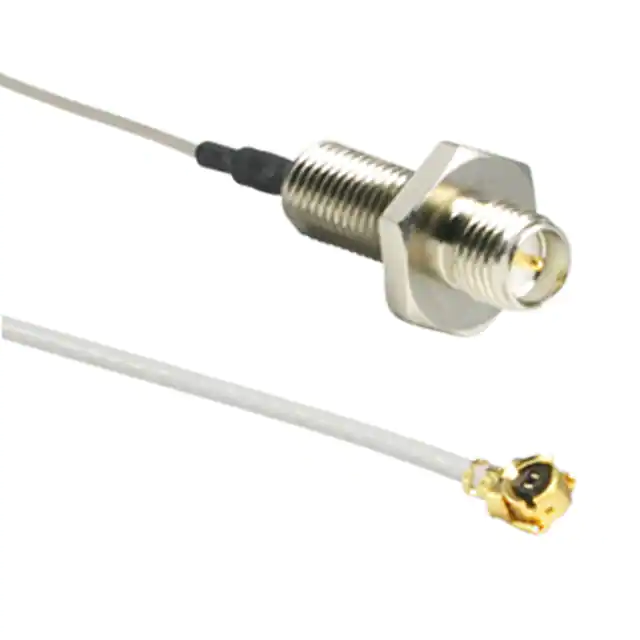

CSI-RSFE-300-UFFRCOAX CBL U.FL TO RP-SMA |
3,362 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Rear Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | - |
|
CABLE 252 RF-0200-A-1COAX CBL RP-SMA TO SMA |
4,795 |
|
Datasheet |
Nautilus | Bag | Active | RP-SMA to SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | IP Rated Unmated | -40°C ~ 125°C | - | - |
|
CAB531RF-0050-A-1CABLE ASSEMBLY 8GHZ I-PEX MHF 4 |
4,890 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
0731357240C/A MCX P R/A TO F JACK RG179 L= |
1,065 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
F6-25WCOAX CBL F-TYPE TO F-TYPE |
1,657 |
|
Datasheet |
F | Bulk | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | RG-6 | 75 Ohms | - | 73 Ohms | - | White | Shielded | - | - | - |
|
|
0734193330COAX CBL MCX TO MCX |
4,090 |
|
- |
73419 | Bulk | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 8.000" (203.20mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|

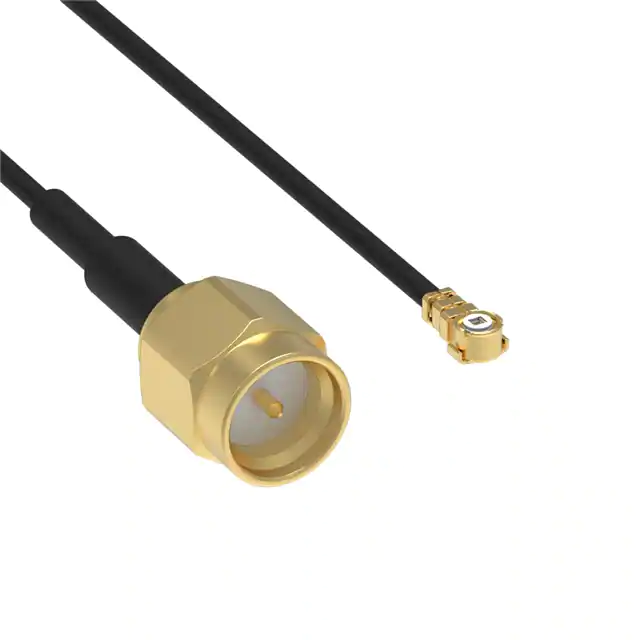

R302205002300COAX CBL MML TO SMA |
2,478 |
|
Datasheet |
MML | Bulk | Active | MML to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | MML Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | - | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
MCXIPEX2559005COAX CBL MHF1 TO MCX |
3,186 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 10.039" (255.00mm) | RG-178 | 50 Ohms | - | - | - | - | - | - | - | - |
|
|
CAB530RF-0150-A-1COAX CBL MHF4L TO SMA |
3,123 |
|
Datasheet |
Nautilus | Bag | Active | I-PEX MHF4L to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 8 GHz | Black | IP Rated Unmated | -40°C ~ 85°C | - | - |
|
|
0732306175CASMA JACK TO MHF 4L LK1.37MM 2I |
3,179 |
|
- |
73230 | Bulk | Active | I-PEX MHF4L LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 2.000" (50.80mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 12 GHz | - | - | - | - | - |
|
|
CAB426RF-0100-A-1CABLE ASSEMBLY I-PEX MHF 4L LK L |
1,527 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L LK to RP-SMA | RP-SMA Jack, Right Angle | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
0897616431CA SMA J RA BLKHD/MCX P RA/RG316 |
1,099 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DFL75-2LPP-084N9D-A-100COAX CBL D.FL75 TO D.FL75 |
3,914 |
|
Datasheet |
D.FL75 | Bag | Active | D.FL75 to D.FL75 | D.FL75 Plug, Right Angle | Female | Free Hanging (In-Line) | - | D.FL75 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.50mm OD Coaxial Cable | - | - | 75 Ohms | 12 GHz | Green | - | -40°C ~ 105°C | - | - |
|
|
2480655-1COAX CBL MCX TO MCX |
3,272 |
|
- |
- | Bag | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 4.134" (105.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Brown | - | -45°C ~ 125°C | - | - |
|
|
ASMK015Y174S11COAX CBL MMCX TO FME |
3,620 |
|
Datasheet |
- | Bag | Active | MMCX to FME | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | FME Plug | Male | Panel Mount | Bulkhead - Front Side Nut | 5.906" (150.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
095-902-513-050COAX CBL U.FL AMC TO SMA |
3,286 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to SMA | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 1.969" (50.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | - | - | - | - |
|
|
CAB442RF-0050-A-1CABLE ASSEMBLY I-PEX MHF TO ISOL |
4,568 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | RG-178 | - | - | 50 Ohms | 6 GHz | Brown | - | -40°C ~ 85°C | - | - |
|
|
0732305961CASMA PLUG TO SMA JACKRG316L=16I |
3,984 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CAB531RF-0200-A-1COAX CBL MHF4L LK TO SMA |
1,217 |
|
Datasheet |
Nautilus | Bag | Active | I-PEX MHF4L LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 8 GHz | Black | IP Rated Unmated | -40°C ~ 85°C | - | - |
|
|
CAB532RF-0100-A-1-SCABLE ASSEMBLY I-PEX MHF 4L PLUG |
1,134 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
