Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

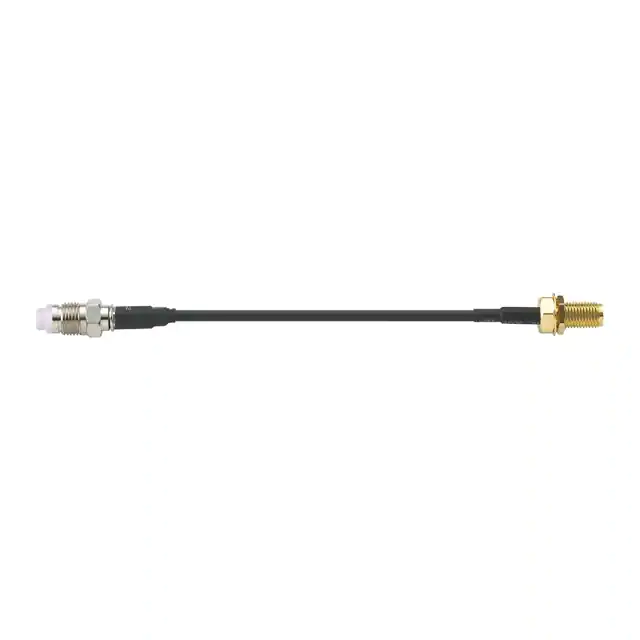

CAB.0121COAX CBL SMA TO FME |
1,165 |
|
Datasheet |
- | Bag | Active | SMA to FME | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | FME Jack | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | Shielded | 80°C | - | - |
|
CAB495RF-0050-A-1CABLE ASSEMBLY SMA RIGHT ANGLE P |
2,808 |
|
- |
Nautilus | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 1.969" (50.00mm) | RG-178 | - | - | 50 Ohms | 6 GHz | Brown | - | -55°C ~ 125°C | - | - |
|
|
CAB529RF-0100-A-1CABLE ASSEMBLY 8GHZ I-PEX MHF 1 |
1,545 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CC59A-2HR2COAX CBL BNC TO BNC |
2,302 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-59 | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
|
CAB505RF-0200-A-1-SCABLE ASSEMBLY I-PEX MHF TO RP S |
1,877 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | RG-178 | - | - | 50 Ohms | 3 GHz | Brown | - | -40°C ~ 85°C | - | - |
|
|
0897610831MMCX TO SMA JACK WITH 1.37 CABLE |
1,479 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
0734194660CBL ASSY MMCX RA PLUG/SMA JACK B |
4,762 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
0897622070COAX CBL SMA TO MMCX |
2,376 |
|
- |
89762 | Bulk | Active | SMA to MMCX | SMA Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 3.250" (82.55mm) | Belden 1671J | - | - | 50 Ohms | - | - | - | - | - | - |
|
|
CAB495RF-0100-A-1COAX CBL SMA TO SMA |
4,593 |
|
Datasheet |
Nautilus | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.937" (100.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Brown | IP Rated Unmated | -55°C ~ 125°C | - | - |
|
|
CABLE 377 RF-150-A-1CABLE ASSEMBLY I-PEX MHF I LK LO |
2,838 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 LK to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
FMCA1052-3COAX CBL UMCX TO UMCX |
3,412 |
|
- |
- | Bag | Active | UMCX to UMCX | UMCX Plug | Male | Free Hanging (In-Line) | - | UMCX Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
GPS-00285COAX CBL SMA TO MMCX |
3,547 |
|
- |
- | Bulk | Active | SMA to MMCX | MMCX Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 6.693" (170.00mm) | - | - | - | - | - | Black | - | - | - | - |
|
|
0897627097CA SMB P STR FAKRA II / RG316 BO |
2,498 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CAB495RF-0150-A-1CABLE ASSEMBLY SMA RIGHT ANGLE P |
4,852 |
|
- |
Nautilus | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.906" (150.00mm) | RG-178 | - | - | 50 Ohms | 6 GHz | Brown | - | -55°C ~ 125°C | - | - |
|
|
0732306032CASMA JACK TO MCRF211.37MML=5.91 |
3,766 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CABLE 236 RF-150-2CABLE ASSEMBLY HIROSE U.FL TO SM |
3,276 |
|
- |
Nautilus | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | -40°C ~ 85°C | - | - |
|
|
CAB469RF-0150-A-1COAX CBL SMA TO MMCX |
4,080 |
|
Datasheet |
Nautilus | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.906" (150.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | IP Rated Unmated | -40°C ~ 125°C | - | - |
|
|
CABLE 319 RF-150-A-1CABLE ASSEMBLY I-PEX MHF I LK LO |
1,573 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CAB505RF-0300-A-1-ECABLE ASSEMBLY I-PEX MHF TO RP S |
2,627 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | RG-178 | - | - | 50 Ohms | 3 GHz | Brown | - | -40°C ~ 85°C | - | - |
|
|
CAB465RF-0200-A-1CABLE ASSEMBLY I-PEX MHF 4L TO S |
3,418 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L LK to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
