Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

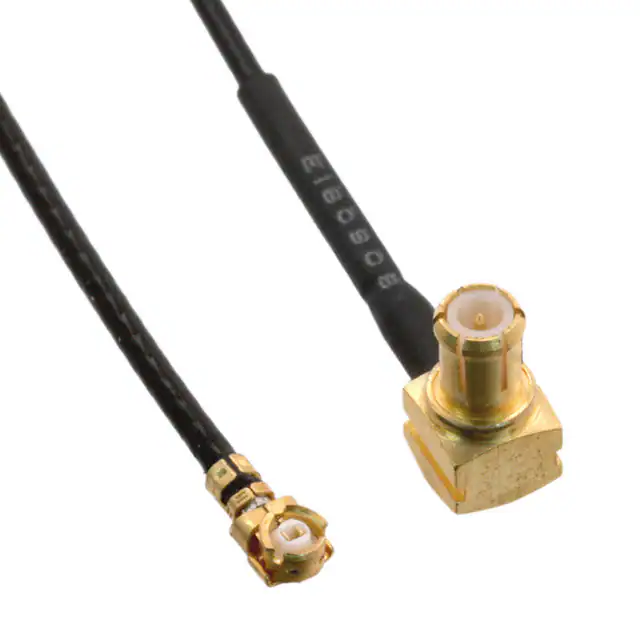

2032442-1COAX CBL U.FL TO MCX |
4,183 |
|
Datasheet |
- | Bag | Obsolete | U.FL (UMCC) to MCX | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | - |
|
0732305951CASMA JACK TO MCRF211.13MML=3.94 |
2,109 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PE39479-6COAX CBL TNC TO TNC |
2,711 |
|
Datasheet |
- | Retail Package | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | - | - | -55°C ~ 125°C | - | - |
|
|
0734197341COAX CBL MMCX TO FAKRA SMB |
4,998 |
|
- |
73419 | Bulk | Active | MMCX to Fakra SMB | MMCX Plug | Male | Free Hanging (In-Line) | - | Fakra SMB Jack | Female | Free Hanging (In-Line) | - | 4.489" (114.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
CSI-SAFB-200-UFFRCOAX CBL U.FL TO SMA |
1,661 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | - |
|
|
0897619270COAX CBL U.FL TO RP-TNC |
4,312 |
|
- |
89761 | Bulk | Active | U.FL (UMCC) to RP-TNC | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 14.00" (355.60mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | - | - | -55°C ~ 125°C | - | - |
|
|
CABLE 377 RF-050-A-1CABLE ASSEMBLY I-PEX MHF I LK LO |
3,576 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 LK to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CAB505RF-0150-A-1-SCABLE ASSEMBLY I-PEX MHF TO RP S |
3,948 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | RG-178 | - | - | 50 Ohms | 3 GHz | Brown | - | -40°C ~ 85°C | - | - |
|
|
0734194864COAX CBL MCX TO MCX |
4,009 |
|
- |
73419 | Bulk | Active | MCX to MCX | MCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug | Male | Free Hanging (In-Line) | - | 11.000" (279.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
CAB497RF-0100-A-1COAX CBL SMA TO MMCX |
3,204 |
|
Datasheet |
Nautilus | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | IP Rated Unmated | -40°C ~ 125°C | - | - |
|
|
CAB497RF-0050-A-1COAX CBL SMA TO MMCX |
2,992 |
|
Datasheet |
Nautilus | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | IP Rated Unmated | -40°C ~ 125°C | - | - |
|
|
0734197340COAX CBL MMCX TO FAKRA SMB |
4,347 |
|
- |
73419 | Bulk | Active | MMCX to Fakra SMB | MMCX Plug | Male | Free Hanging (In-Line) | - | Fakra SMB Jack | Female | Free Hanging (In-Line) | - | 7.244" (184.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
W.FL-2LP-04N2-A-(900)COAX CBL W.FL TO W.FL |
3,762 |
|
Datasheet |
W.FL | Bulk | Obsolete | W.FL to W.FL | W.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | W.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | 35.43" (900.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
0732306034CASMA JACK TO MCRF211.37MML=9.84 |
4,769 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CAB505RF-0300-A-1-SCABLE ASSEMBLY I-PEX MHF TO RP S |
3,561 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | RG-178 | - | - | 50 Ohms | 3 GHz | Brown | - | -40°C ~ 85°C | - | - |
|
|
CAB469RF-0100-A-1COAX CBL SMA TO MMCX |
2,497 |
|
Datasheet |
Nautilus | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.937" (100.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | IP Rated Unmated | -40°C ~ 125°C | - | - |
|
|
0734194580COAX CBL SMA TO SMA |
4,801 |
|
- |
73419 | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
0897627365COAX CBL FAKRA TO FAKRA |
3,516 |
|
- |
89762 | Bulk | Active | Fakra to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 28.74" (730.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|

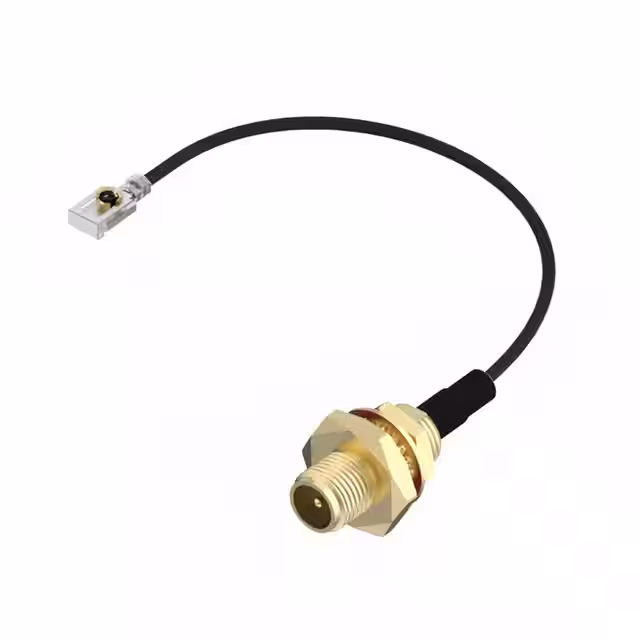

CAB464RF-0200-A-1COAX CBL MHF1 LK TO SMA |
2,177 |
|
Datasheet |
Nautilus | Bag | Active | I-PEX MHF1 LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Rear Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Black | IP Rated Unmated | -40°C ~ 85°C | - | - |
|
|
CCF59B-25COAX CBL F-TYPE TO F-TYPE |
3,339 |
|
- |
- | Bag | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | RG-59B | - | - | 75 Ohms | - | Black | - | - | - | - |
