Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSI-SAFE-300-UFFRCOAX CBL U.FL TO SMA |
4,828 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Rear Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | - |
|
CAB576RF-0150-A-1-ECABLE ASSEMBLY I-PEX MHF I TO RP |
1,403 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 85°C | - | - |
|
|
CAB574RF-0150-A-1-ECABLE ASSEMBLY I-PEX MHF I TO SM |
3,531 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 85°C | - | - |
|
|
CAB575RF-0100-A-1-ECABLE ASSEMBLY I-PEX MHF 4L TO S |
4,445 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CAB577RF-0100-A-1-ECABLE ASSEMBLY I-PEX MHF 4L TO R |
2,632 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L LK to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
0734192430COAX CBL MMCX TO MMCX |
2,825 |
|
- |
73419 | Bulk | Active | MMCX to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 23.00" (584.20mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
CABLE 272 RF-0050-A-1COAX CBL MHF1 TO BNC |
1,459 |
|
Datasheet |
Nautilus | Bag | Obsolete | I-PEX MHF1 to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | IP Rated Unmated | -20°C ~ 80°C | - | - |
|
|
CAB497RF-0150-A-1COAX CBL SMA TO MMCX |
1,228 |
|
Datasheet |
Nautilus | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | IP Rated Unmated | -40°C ~ 125°C | - | - |
|
|
1064303-1COAX CBL OSMT TO OSMT |
4,669 |
|
Datasheet |
- | Bag | Active | OSMT to OSMT | OSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | OSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | - | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 105°C | - | - |
|
|
0897627366COAX CBL FAKRA TO FAKRA |
2,660 |
|
- |
89762 | Bulk | Active | Fakra to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 47.2" (1.2m) 3.9' | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
CAB531RF-0300-A-1CABLE ASSEMBLY 8GHZ I-PEX MHF 4 |
2,293 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|

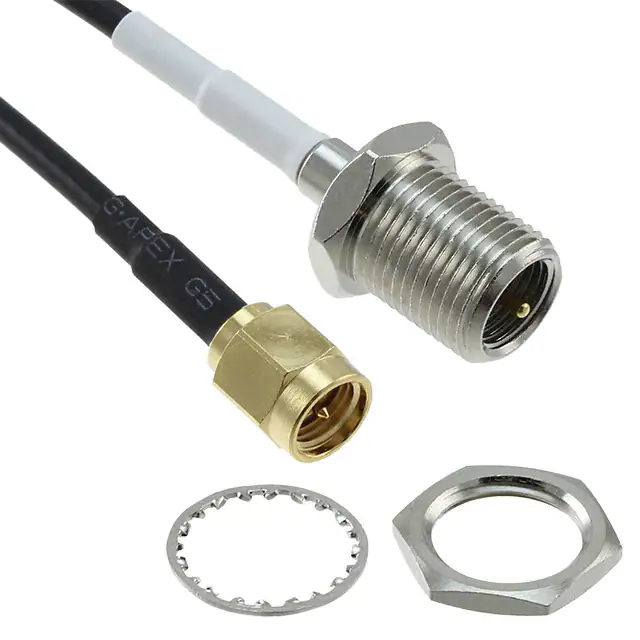

ASMA030Y174S11COAX CBL SMA TO FME |
2,487 |
|
- |
- | Bag | Active | SMA to FME | SMA Plug | Male | Panel Mount | Bulkhead - Front Side Nut | FME Plug | Male | Free Hanging (In-Line) | - | 11.811" (300.00mm) | RG-174 | 50 Ohms | - | - | 6 GHz | Black | Shielded | - | - | - |
|
|
CABLE 272 RF-0050-2CABLE ASSEMBLY I-PEX MHF I TO BN |
4,558 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | RG-178 | - | - | 50 Ohms | 3 GHz | Brown | - | -40°C ~ 85°C | - | - |
|
|
CAB411RF-0100-A-1-ECABLE ASSEMBLY MMCX RIGHT ANGLE |
2,326 |
|
- |
Nautilus | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.937" (100.00mm) | RG-178 | - | - | 50 Ohms | 3 GHz | Brown | - | -40°C ~ 125°C | - | - |
|
|
CC59A-10HR2COAX CBL BNC TO BNC |
4,958 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | RG-59A | 75 Ohms | 75 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
CAB532RF-0150-A-1-ECABLE ASSEMBLY I-PEX MHF 4L PLUG |
4,813 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CAB532RF-0200-A-1-SCABLE ASSEMBLY I-PEX MHF 4L PLUG |
4,192 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
0734194581COAX CBL SMA TO SMA |
1,521 |
|
- |
73419 | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
CBL-12-60-S1-S1COAX CBL SMA TO SMA |
2,030 |
|
Datasheet |
CBL | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
1-2480661-0COAX CBL SMA TO SMA |
4,586 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 10.000" (254.00mm) | Hand Formable .086 | - | - | 50 Ohms | 18 GHz | Silver | - | -55°C ~ 125°C | - | - |
