Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0731356270C/A SMA JACK REV POLAR MCRF 0.81 |
3,683 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CABLE 395 RF-150-A-1COAX CBL MHF1 TO RP-SMA |
1,403 |
|
Datasheet |
Nautilus | Bag | Active | I-PEX MHF1 to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Brown | IP Rated Unmated | -40°C ~ 85°C | - | - |
|
|
0732306172CASMA JACK TO MHF 4L LK1.37MM 8I |
2,965 |
|
- |
73230 | Bulk | Active | I-PEX MHF4L LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 8.000" (203.20mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 12 GHz | - | - | - | - | - |
|
|
CAB532RF-0150-A-1-SCABLE ASSEMBLY I-PEX MHF 4L PLUG |
1,617 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CAB532RF-0100-A-1-ECABLE ASSEMBLY I-PEX MHF 4L PLUG |
2,189 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CABLE 262 RF-050-1CABLE ASSEMBLY I-PEX MHF I TO N |
1,094 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | RG-178 | - | - | 50 Ohms | 3 GHz | Brown | - | - | - | - |
|
|
2480656-2COAX CBL SMA TO SMA |
1,906 |
|
- |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | -40°C ~ 105°C | - | - |
|
|
CAB527RF-0050-A-1CABLE ASSEMBLY 8GHZ SMA STRAIGHT |
1,246 |
|
- |
Nautilus | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 1.969" (50.00mm) | RG-178 | - | - | 50 Ohms | 8 GHz | Brown | - | -40°C ~ 125°C | - | - |
|
CAB426RF-0200-A-1COAX CBL RP-SMA TO MHF4L LK |
3,513 |
|
Datasheet |
Nautilus | Bag | Active | RP-SMA to I-PEX MHF4L LK | RP-SMA Jack, Right Angle | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Black | IP Rated Unmated | -40°C ~ 85°C | - | - |
|
|
CAB493RF-0050-A-1-ECOAX CBL MHF1 TO SMA |
4,830 |
|
Datasheet |
Nautilus | Bag | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Rear Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Brown | Stainless Steel 303, IP Rated Unmated | -40°C ~ 85°C | - | - |
|
|
0897625110CA F JACK STR BKHD/ RG179 |
4,609 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
095-902-513-250COAX CBL U.FL AMC TO SMA |
3,557 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to SMA | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | - | - | - | - |
|
|
0732306171CASMA JACK TO MHF 4L LK1.37MM 10 |
2,958 |
|
- |
73230 | Bulk | Active | I-PEX MHF4L LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 10.000" (254.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 12 GHz | - | - | - | - | - |
|
|
0731357411COAX CBL MMCX TO FAKRA SMB |
3,120 |
|
- |
73135 | Bulk | Obsolete | MMCX to Fakra SMB | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | Fakra SMB Jack | Female | Free Hanging (In-Line) | - | 8.000" (203.20mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
0897616060COAX CBL SMB TO SMB |
1,727 |
|
- |
89761 | Bulk | Active | SMB to SMB | SMB Plug | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
CAB574RF-0050-A-1-ECABLE ASSEMBLY I-PEX MHF I TO SM |
2,275 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 85°C | - | - |
|
|
CAB529RF-0300-A-1CABLE ASSEMBLY 8GHZ I-PEX MHF 1 |
1,193 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CAB576RF-0050-A-1-ECABLE ASSEMBLY I-PEX MHF I TO RP |
2,143 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 85°C | - | - |
|
|
0897629522CA SMA J STR/ MCRF 1.13 CABLE |
2,135 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

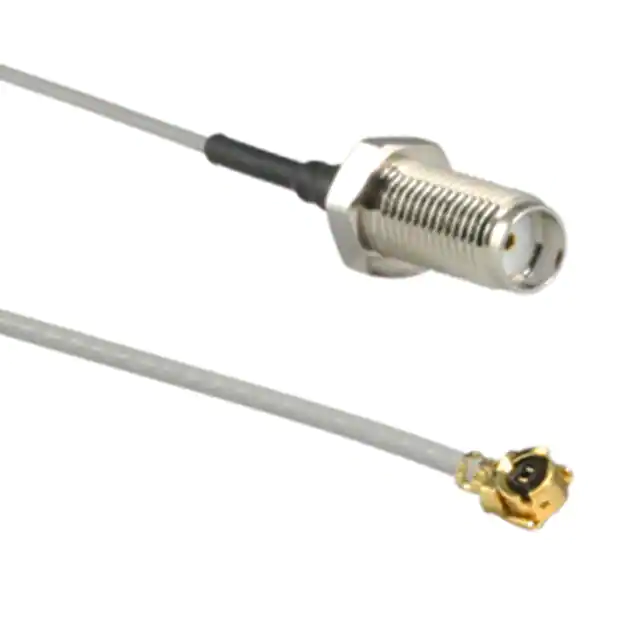

CSI-SAFB-300-UFFRCOAX CBL U.FL TO SMA |
3,247 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | - |
