Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CABLE 375 RF-050-A-2COAX CBL MHF1 TO SMA |
2,894 |
|
Datasheet |
Nautilus | Bag | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | IP Rated Unmated | -40°C ~ 85°C | - | - |
|
CAB530RF-0100-A-1COAX CBL MHF4L TO SMA |
3,906 |
|
Datasheet |
Nautilus | Bag | Active | I-PEX MHF4L to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 8 GHz | Black | IP Rated Unmated | -40°C ~ 85°C | - | - |
|
|
0732306222CAMCX PLUG R/A TO MHF I LK1.32MM |
1,852 |
|
- |
73230 | Bulk | Active | I-PEX MHF1 to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 8.000" (203.20mm) | 1.32mm OD Coaxial Cable | 50 Ohms | - | - | 6 GHz | Black | - | - | - | - |
|
|
1274999-3COAX CBL U.FL TO QSL |
4,539 |
|
Datasheet |
- | Bulk | Obsolete | U.FL (UMCC) to QSL | QSL Receptacle, 3 Port | Female | Panel Mount | - | U.FL (UMCC) Plug, Right Angle (3) | Female | Free Hanging (In-Line) | - | 20.00" (508.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
0734194860COAX CBL MCX TO MCX |
4,142 |
|
- |
73419 | Bulk | Active | MCX to MCX | MCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
3.31.101.0074MMCXSMA.100MMCX RA MALE+SMA FEMALE+RG174 10 |
4,228 |
|
Datasheet |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
0897625760COAX CBL RP-SMA TO MMCX |
2,091 |
|
- |
89762 | Bulk | Active | RP-SMA to MMCX | RP-SMA Jack, Right Angle | Male | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 4.000" (101.60mm) | - | - | - | 50 Ohms | - | - | - | - | - | - |
|

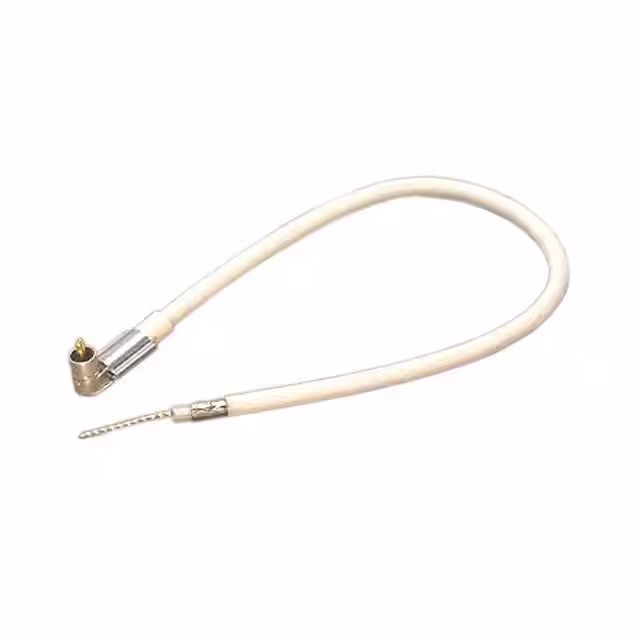

4191-06COAX CBL FL TO CABLE |
1,030 |
|
- |
- | Bulk | Active | FL to Cable | FL Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 6.000" (152.40mm) | - | - | - | - | - | White | - | - | - | - |
|
|
0897620191COAX CBL SMA TO TNC |
1,876 |
|
- |
89762 | Bulk | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
CAB428RF-0100-A-1CABLE ASSEMBLY I-PEX MHF 5L RIGH |
1,293 |
|
- |
Nautilus | Bag | Active | I-PEX MHF5L to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF5L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | -40°C ~ 85°C | - | - |
|
|
CAB478RF-0200-F1-A-1CABLE ASSEMBLY I-PEX MHF 4L LK T |
3,838 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L LK to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CABLE 236 RF-150-A-2CABLE ASSEMBLY HIROSE U.FL TO SM |
2,312 |
|
- |
Nautilus | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | -40°C ~ 85°C | - | - |
|
|
0897618470COAX CBL RP-SMA TO U.FL |
3,045 |
|
- |
89761 | Bulk | Active | RP-SMA to U.FL (UMCC) | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.890" (175.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
CAB420RF-0300-A-1CABLE ASSEMBLY I-PEX MHF 4L LK L |
3,292 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CAB429RF-0150-A-1CABLE ASSEMBLY I-PEX MHF 5L RIGH |
2,322 |
|
- |
Nautilus | Bag | Active | I-PEX MHF5L to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF5L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 85°C | - | - |
|
|
CAB475RF-0200-F1-A-1CABLE ASSEMBLY I-PEX MHF I LK TO |
4,737 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 LK to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CC59A-BF-12COAX CBL BNC TO F-TYPE |
3,719 |
|
Datasheet |
- | Bag | Active | BNC to F-Type | BNC Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | RG-59A | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
|
0732305970CAMCX PLUG TO MCX PLUGRG178B/UL= |
3,383 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CAB417RF-0100-A-1CABLE ASSEMBLY I-PEX MHF 4L LK L |
4,760 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CAB422RF-0150-A-1CABLE ASSEMBLY I-PEX MHF 4L LK L |
4,650 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L LK to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
