Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0897618980COAX CBL SMA TO SMA |
4,696 |
|
- |
89761 | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 8.500" (215.90mm) | LMR 100 | 50 Ohms | - | 50 Ohms | 3 GHz | - | - | - | - | - |
|

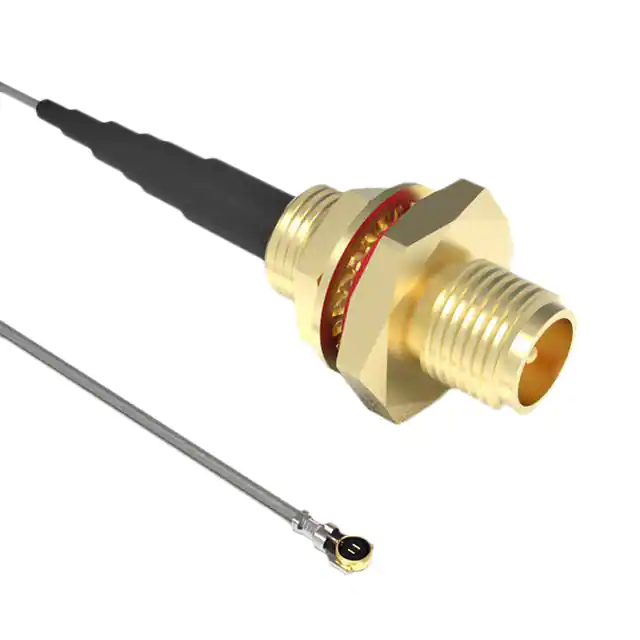

CAB428RF-0200-A-1COAX CBL RP-SMA TO MHF5L |
2,333 |
|
Datasheet |
Nautilus | Bag | Active | RP-SMA to I-PEX MHF5L | RP-SMA Plug | Female | Panel Mount | Bulkhead - Rear Side Nut | I-PEX MHF5L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 3 GHz | Gray | IP Rated Unmated | -40°C ~ 85°C | - | - |
|
|
3.31.101.0074SMAMCX.100SMA FEMALE+ MCX RA MALE+RG178 10 |
1,226 |
|
Datasheet |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

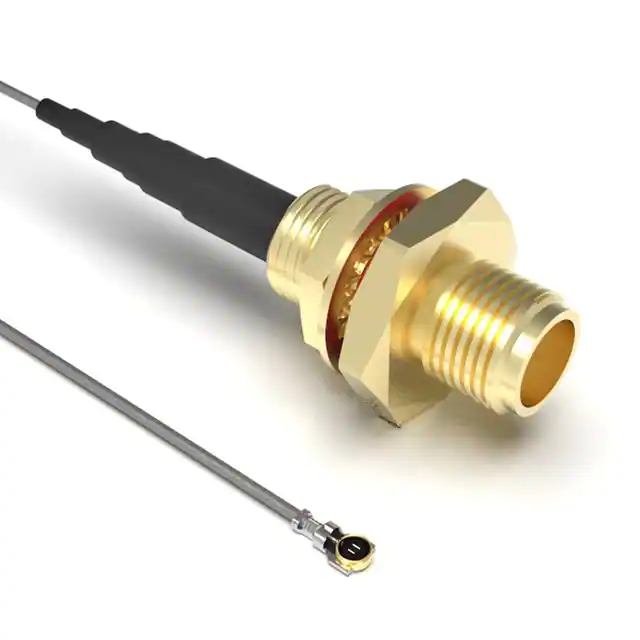

CAB427RF-0200-A-1COAX CBL SMA TO MHF5L |
4,575 |
|
Datasheet |
Nautilus | Bag | Active | SMA to I-PEX MHF5L | SMA Jack | Female | Panel Mount | Bulkhead - Rear Side Nut | I-PEX MHF5L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 3 GHz | Gray | IP Rated Unmated | -40°C ~ 85°C | - | - |
|
|
0897616180COAX CBL F-TYPE TO MCX |
2,877 |
|
- |
89761 | Bulk | Active | F-Type to MCX | F-Type Plug, Right Angle | Male | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 2.126" (54.00mm) | RG-179 | 75 Ohms | - | 75 Ohms | - | - | - | - | - | - |
|
|
CABLE 236 RF-050-F1-2CABLE ASSEMBLY HIROSE U.FL TO SM |
3,660 |
|
- |
Nautilus | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | -40°C ~ 85°C | - | - |
|
|
CAB505RF-0100-A-1-SCABLE ASSEMBLY I-PEX MHF TO RP S |
4,671 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | RG-178 | - | - | 50 Ohms | 3 GHz | Brown | - | -40°C ~ 85°C | - | - |
|
1191-06COAX CBL H.FL TO CABLE |
3,374 |
|
- |
- | Bulk | Obsolete | H.FL to Cable | H.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 6.000" (152.40mm) | 1.27mm OD Coaxial Cable | - | - | - | - | Gray | Shielded | - | - | - |
|
|
CC59A-7.5HR2COAX CBL BNC TO BNC |
1,858 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 90.0" (2.3m) 7.5' | RG-59A | 75 Ohms | 75 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
0732305971CAMCX PLUG TO MCX PLUGRG178B/UL= |
2,167 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
0897616132COAX CBL MCX TO MCX |
4,264 |
|
- |
89761 | Bulk | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.50" (495.30mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
CAB528RF-0300-A-1CABLE ASSEMBLY 8GHZ I-PEX MHF T |
1,818 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CC6QF-6COAX CBL F-TYPE TO F-TYPE |
3,298 |
|
- |
- | Bag | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-6 | 75 Ohms | - | - | - | Black | - | - | - | - |
|
|
CC6QF-9COAX CBL F-TYPE TO F-TYPE |
2,037 |
|
- |
- | Bag | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 108.0" (2.7m) 9.0' | RG-6 | 75 Ohms | - | - | - | Black | - | - | - | - |
|
|
CC187F-1COAX CBL F-TYPE TO F-TYPE |
3,293 |
|
- |
- | Bag | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-187 | 75 Ohms | - | 75 Ohms | - | White | - | -70°C ~ 200°C | - | - |
|
|
CAB473RF-0100-F1-A-1CABLE ASSEMBLY I-PEX MHF 4L LK T |
1,354 |
|
- |
Nautilus | Bag | Active | I-PEX MHF4L LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 8 GHz | Red | - | -40°C ~ 85°C | - | - |
|
|
SR047-SF1-65mmCOAX CBL SMA TO CABLE |
1,233 |
|
Datasheet |
SR047 | Bulk | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 2.559" (65.00mm) | 0.047" Semi-Rigid Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 125°C | - | - |
|

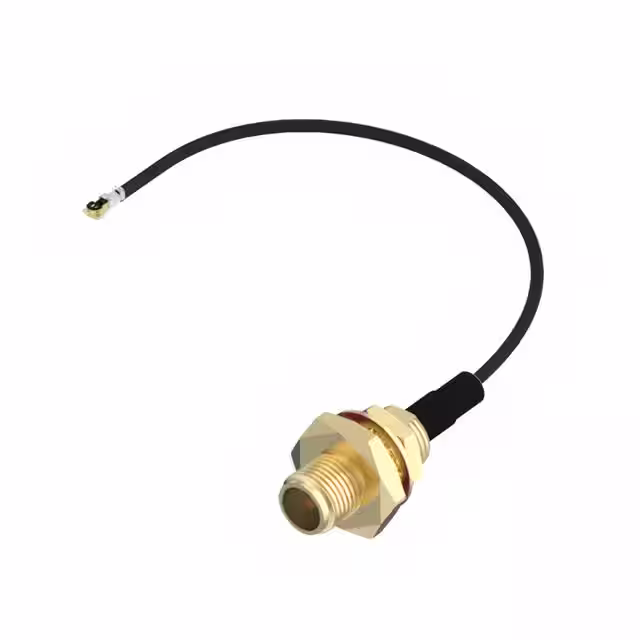

CAB462RF-0200-A-1COAX CBL SMA TO MHF5L |
3,890 |
|
Datasheet |
Nautilus | Bag | Active | SMA to I-PEX MHF5L | SMA Jack | Female | Panel Mount | Bulkhead - Rear Side Nut | I-PEX MHF5L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | IP Rated Unmated | -40°C ~ 85°C | - | - |
|
|
CAB469RF-0050-A-1COAX CBL SMA TO MMCX |
2,387 |
|
Datasheet |
Nautilus | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 1.969" (50.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | IP Rated Unmated | -40°C ~ 125°C | - | - |
|
|
FMC0204317-48COAX CBL SMA TO SMA |
3,269 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | -55°C ~ 200°C | - | - |
