Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0897620930CA,1.0/2.3 J BH RM ST/MCX P RA R |
1,316 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
0734196860CAMCX RA PLUG/TYPE F BH JACK RG1 |
3,072 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
0897612560COAX CBL BNC TO MMCX |
2,413 |
|
Datasheet |
89761 | Bulk | Active | BNC to MMCX | BNC Jack | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.449" (240.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
CC59B-2.5COAX CBL BNC TO BNC |
1,848 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 30.00" (762.00mm) | RG-59B | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
|
0734194320COAX CBL U.FL TO FAKRA SMB |
1,000 |
|
- |
73419 | Bulk | Obsolete | U.FL (UMCC) to Fakra SMB | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | Fakra SMB Jack | Female | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
A-1PA-137-500B2COAX CBL U.FL AMC-U.FL AMC |
2,460 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
U.FL-2LPHF6-066N1-A-250COAX CBL U.FL TO U.FL |
4,297 |
|
Datasheet |
U.FL | Bag | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
|
CA-#DKCA1-152L3-DPDRP-6COAX CBL MCX TO MCX |
1,107 |
|
- |
- | Bag | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.984" (152.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Brown | - | - | - | - |
|
|
0897625660CA MMCX P STR BOTH END/ RG178 |
3,646 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

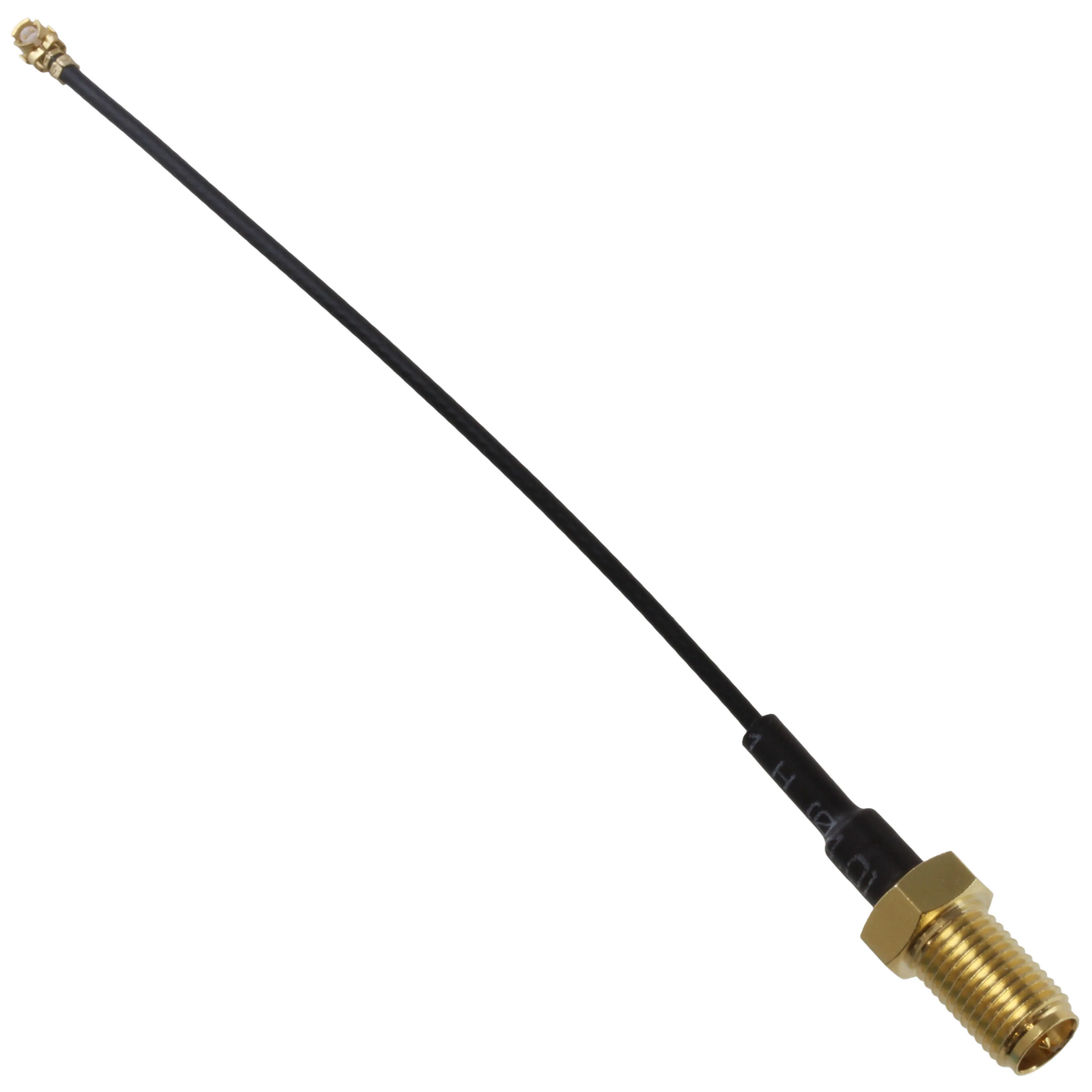

RFCBA100607SA6B701COAX CBL U.FL TO RP-SMA |
1,909 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 2.756" (70.00mm) | 1.37mm OD Coaxial Cable | - | - | - | 6 GHz | - | - | - | - | - |
|
|
0897619290COAX CBL RP-SMA TO MMCX |
1,608 |
|
- |
89761 | Bulk | Active | RP-SMA to MMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
0897610810MCX R/A TO MCX R/A WITHRG316 CAB |
1,313 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CABLE 138 RF-0100-F1-2CABLE ASSEMBLY I-PEX MHF I TO RP |
4,739 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
JPLUS6T72SECOAX CBL 7/16 DIN TO 7/16 DIN |
2,759 |
|
- |
- | Bulk | Active | 7/16 DIN to 7/16 DIN | 7/16 Plug | Male | - | - | 7/16 Plug | Male | - | - | 72.0" (1.8m) 6.0' | RG-6 | 75 Ohms | - | 75 Ohms | - | Black | - | -40°C ~ 60°C | - | - |
|
|
CABLE 162 RF-100-F1-1CABLE ASSEMBLY I-PEX MHF I TO SM |
2,580 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | RG-178 | - | - | 50 Ohms | 3 GHz | Brown | - | -40°C ~ 90°C | - | - |
|
|
0897626481COAX CBL SMA TO MMCX |
3,622 |
|
- |
89762 | Bulk | Active | SMA to MMCX | SMA Jack | Female | - | - | MMCX Plug, Right Angle | Male | - | - | - | RG-316 | - | - | - | - | - | - | - | - | - |
|
W.FL2-2LP-04N1-A-(300)COAX CBL W.FL2 TO W.FL2 |
1,370 |
|
Datasheet |
W.FL2 | Bag | Obsolete | W.FL2 to W.FL2 | W.FL2 Plug, Right Angle | Female | Free Hanging (In-Line) | - | W.FL2 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | White | Shielded | -40°C ~ 90°C | - | - |
|
|
CABLE 184 RF-050-F1-2CABLE ASSEMBLY HIROSE U.FL TO SM |
2,984 |
|
- |
Nautilus | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | -40°C ~ 85°C | - | - |
|
|
CABLE 138 RF-0150-2CABLE ASSEMBLY I-PEX MHF I TO RP |
1,810 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
|
CC59B-4HRCOAX CBL BNC TO BNC |
3,099 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-59B | 75 Ohms | 75 Ohms | 50 Ohms | - | Black | - | - | - | - |
