Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

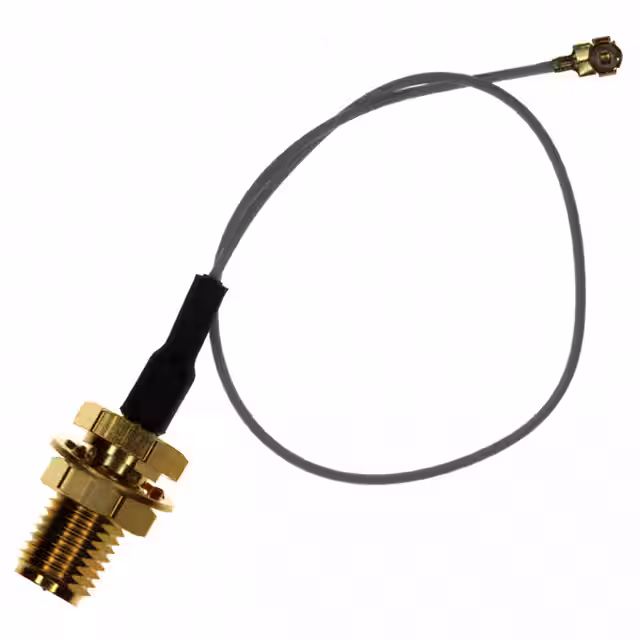

415-0098-150COAX CBL U.FL TO RP-SMA |
2,304 |
|
Datasheet |
- | Bulk | Obsolete | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | White | Shielded | -40°C ~ 90°C | - | - |
|
415-0101-150COAX CBL U.FL TO MMCX |
4,586 |
|
Datasheet |
UMC | Bulk | Obsolete | U.FL (UMCC) to MMCX | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | White | Shielded | -40°C ~ 90°C | - | - |
|
0732306234CASMA JACK TO MHFI LK1.13MM 4IN |
3,018 |
|
- |
73230 | Bulk | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 4.000" (101.60mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | - | 6 GHz | Black | - | - | - | - |
|
|
0732306114CASMA JACK TO MHF I LK1.32MML=4I |
4,334 |
|
- |
73230 | Bulk | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 4.000" (101.60mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
0734195391COAX CBL MMCX TO MMCX |
3,617 |
|
- |
73419 | Bulk | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 3.307" (84.00mm) | Belden 1671J | - | - | 50 Ohms | - | - | - | - | - | - |
|
|
0732306124CASMA JACK TO MHF I LK1.37MM4IN |
4,082 |
|
- |
73230 | Bulk | Active | I-PEX MHF1 LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 4.000" (101.60mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
|
0732306163CASMA JACK TO MHF 4L LK1.37MM 6I |
4,558 |
|
- |
73230 | Bulk | Active | I-PEX MHF4L LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 12 GHz | - | - | - | - | - |
|
|
CCF59-12COAX CBL F-TYPE TO F-TYPE |
1,548 |
|
- |
- | Bag | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | RG-59A | - | - | 75 Ohms | - | Black | - | - | - | - |
|
|
CC59B-5COAX CBL BNC TO BNC |
1,063 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-59B | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
|
0731355963CA FAKRA II P C-G TO II P C-G RG |
3,674 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
0897616136CBL ASSY,MCX RA PLG/MCX RA PLG,5 |
2,181 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CC59A-3HRCOAX CBL BNC TO BNC |
2,882 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-59A | 75 Ohms | 75 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
0734194530CABLE ASSY SMA JACK RP U.FL1.37C |
2,868 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
0732306233CASMA JACK TO MHFI LK1.13MM 6IN |
4,695 |
|
- |
73230 | Bulk | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | - | 6 GHz | Black | - | - | - | - |
|
|
CAB474RF-0200-F1-A-1CABLE ASSEMBLY I-PEX MHF I TO SM |
1,869 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
W.FL-2LPGHF-062N2D-A-35COAX CBL W.FL TO W.FL |
2,263 |
|
- |
W.FL | Bulk | Obsolete | W.FL to W.FL | W.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | W.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.378" (35.00mm) | 1.00mm OD Coaxial Cable | 50 Ohms | - | - | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
0732306113CASMA JACK TO MHF I LK1.32MML=6I |
4,708 |
|
- |
73230 | Bulk | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
0734192260COAX CBL MCX TO MCX |
3,752 |
|
- |
73419 | Bulk | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 16.00" (406.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
0731357750COAX CBL FAKRA II TO FAKRA II |
3,636 |
|
- |
73135 | Bulk | Active | Fakra II to Fakra II | Fakra Plug | Male | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
ASMG005G113S11COAX CBL MHF1 TO MHF1 |
1,926 |
|
- |
- | Bulk | Active | I-PEX MHF1 to I-PEX MHF1 | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | - | - | - | - | Gray | - | - | - | - |
