Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2121-DKF-0036COAX CBL SMA TO SMA |
1,670 |
|
Datasheet |
DKF | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | HP 190S | - | - | 50 Ohms | 18 GHz | Gray | Shielded | -55°C ~ 85°C | - | - |
|

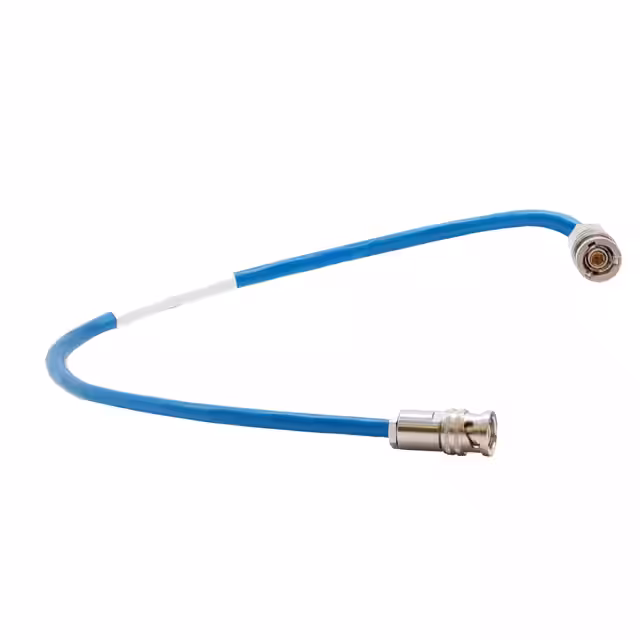

21-20-M5.0COAX CBL TRB TO TRB |
4,126 |
|
Datasheet |
- | Bulk | Active | TRB to TRB | TRB Plug | Male | Free Hanging (In-Line) | - | TRB Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | Twinaxial | - | - | 78 Ohms | 500 GHz | Blue | Shielded | - | - | MIL-STD-1553B |
|
TM7SM8MS8MS061CCOAX CBL 1.85MM TO 1.85MM |
3,969 |
|
Datasheet |
- | Bag | Active | 1.85mm to 1.85mm | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 1.98mm OD Coaxial Cable | - | - | 50 Ohms | 65 GHz | Teal | - | -50°C ~ 105°C | - | - |
|
|
2121-DKF-0012COAX CBL SMA TO SMA |
2,805 |
|
Datasheet |
DKF | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | HP 190S | - | - | 50 Ohms | 18 GHz | Gray | Shielded | -55°C ~ 85°C | - | - |
|
095-850-214M400COAX CBL HD-BNC TO HD-BNC |
1,206 |
|
Datasheet |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 157.5" (4.0m) 13.1' | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
2867225COAX CBL N-TYPE TO N-TYPE |
2,558 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 590.6" (15.0m) 49.2' | RG-213 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | -40°C ~ 80°C | - | - |
|
RF085-92SP-92SP-0305COAX CBL 2.92MM TO 2.92MM |
3,772 |
|
Datasheet |
RF085 | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.01" (305.00mm) | 0.085" Flexible Cable | 50 Ohms | - | - | 40 GHz | Blue | Shielded | -65°C ~ 125°C | - | - |
|
|
H2.4-2P-SF085MC1-A-12INCOAX CBL 2.4MM TO 2.4MM |
4,084 |
|
Datasheet |
2.4mm | Bag | Active | 2.4mm to 2.4mm | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.085" Flexible Cable | - | - | 50 Ohms | 50 GHz | Green | - | -55°C ~ 105°C | - | - |
|
|
H2.4-2P-SF085MC1-A-24INCOAX CBL 2.4MM TO 2.4MM |
3,911 |
|
Datasheet |
2.4mm | Bag | Active | 2.4mm to 2.4mm | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.085" Flexible Cable | - | - | 50 Ohms | 50 GHz | Green | - | -55°C ~ 105°C | - | - |
|
|
TM7SM8MS8MS031CCOAX CBL 1.85MM TO 1.85MM |
4,378 |
|
Datasheet |
- | Bag | Active | 1.85mm to 1.85mm | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 1.98mm OD Coaxial Cable | - | - | 50 Ohms | 40 GHz | Teal | - | -50°C ~ 105°C | - | - |
|
RF047-A-18SP-18SP-0152COAX CBL 1.85MM TO 1.85MM |
3,240 |
|
Datasheet |
RF047-A | Bag | Active | 1.85mm to 1.85mm | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 5.984" (152.00mm) | 0.047" Flexible Cable | 50 Ohms | - | - | 65 GHz | Violet | Shielded | -65°C ~ 125°C | - | - |
|
MINI141-11COAX CBL SMA TO SMA |
1,660 |
|
Datasheet |
MINIBEND | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 11.000" (279.40mm) | Hand Formable .141 | - | - | 50 Ohms | 26.5 GHz | Silver | Shielded | -55°C ~ 200°C | - | - |
|
21-17-36COAX CBL TRS TO TRS |
4,051 |
|
Datasheet |
- | Bulk | Active | TRS to TRS | TRS Plug | Male | Free Hanging (In-Line) | - | TRS Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Twinaxial | - | - | 78 Ohms | 500 GHz | Blue | Shielded | - | - | MIL-STD-1553B |
|
7012-1326COAX CBL SMA TO SMP |
1,852 |
|
Datasheet |
- | Bag | Active | SMA to SMP | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
21-14-M3.5COAX CBL TRB TO TRB |
1,688 |
|
Datasheet |
- | Bulk | Active | TRB to TRB | TRB Plug | Male | Free Hanging (In-Line) | - | TRB Plug | Male | Free Hanging (In-Line) | - | 137.8" (3.5m) 11.5' | Twinaxial | - | - | 78 Ohms | 500 GHz | Blue | Shielded | - | - | MIL-STD-1553B |
|
|
MINI141-3COAX CBL SMA TO SMA |
3,065 |
|
Datasheet |
MINIBEND | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | Hand Formable .141 | - | - | 50 Ohms | 26.5 GHz | Silver | Shielded | -55°C ~ 200°C | - | - |
|
415-0536-018COAX CBL 2.4MM TO 2.4MM |
2,603 |
|
Datasheet |
- | Bag | Active | 2.4mm to 2.4mm | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | 2.44mm OD Coaxial Cable | - | - | - | 50 GHz | Blue | - | - | - | - |
|
RF047-A-92SP-92SP-0610COAX CBL 2.92MM TO 2.92MM |
4,959 |
|
Datasheet |
RF047-A | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.047" Flexible Cable | 50 Ohms | - | - | 40 GHz | Violet | Shielded | -65°C ~ 125°C | - | - |
|

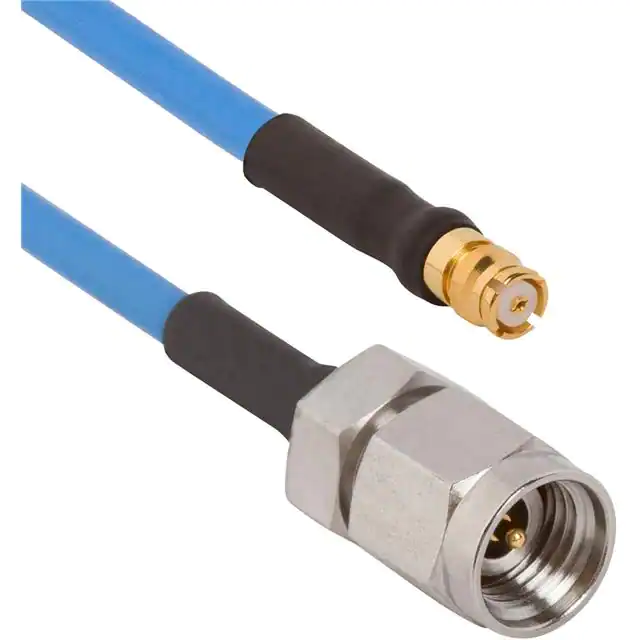

7012-1283COAX CBL SMP TO 2.92MM |
3,988 |
|
Datasheet |
- | Bag | Active | SMP to 2.92mm | SMP Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

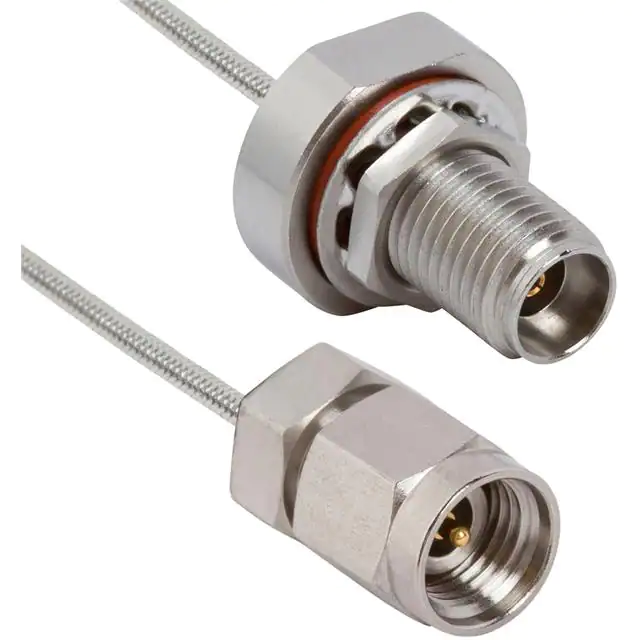

7015-1077COAX CBL 2.92MM TO 2.92MM |
4,416 |
|
Datasheet |
- | Bag | Active | 2.92mm to 2.92mm | 2.92mm Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Silver | - | -65°C ~ 165°C | - | - |
