Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FL086-3KM+COAX CBL 2.92MM TO 2.92MM |
3,369 |
|
Datasheet |
FL086-XXKM+ | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 0.086" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
RF047-A-M0SJ-M0SJ-0305COAX CBL SMPM TO SMPM |
3,768 |
|
Datasheet |
RF047-A | Bag | Active | SMPM to SMPM | SMPM Jack | Female | Free Hanging (In-Line) | - | SMPM Jack | Female | Free Hanging (In-Line) | - | 12.01" (305.00mm) | 0.047" Flexible Cable | 50 Ohms | - | - | 40 GHz | Violet | Shielded | -65°C ~ 125°C | - | - |
|
|
RF047-A-92SP-M0SJ-0152COAX CBL SMPM TO 2.92MM |
4,677 |
|
Datasheet |
RF047-A | Bag | Active | SMPM to 2.92mm | SMPM Jack | Female | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 5.984" (152.00mm) | 0.047" Flexible Cable | 50 Ohms | - | - | 65 GHz | Violet | Shielded | -65°C ~ 125°C | - | - |
|

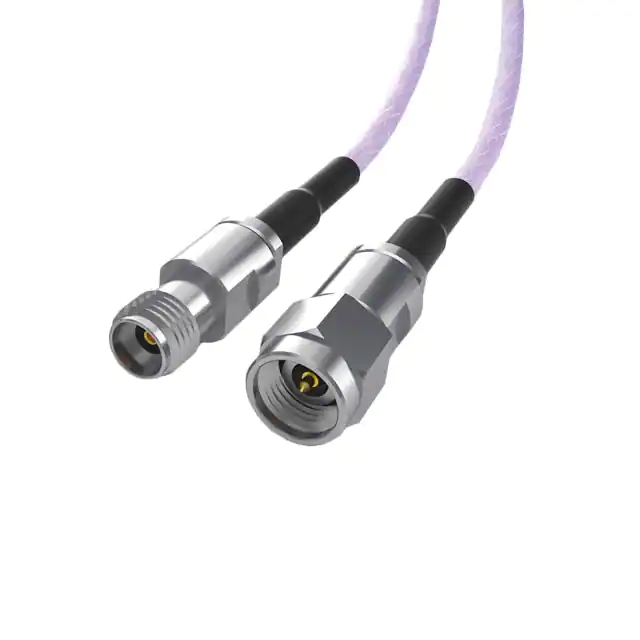

RF047-A-92SP-92SP-0152COAX CBL 2.92MM TO 2.92MM |
4,680 |
|
Datasheet |
RF047-A | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 5.984" (152.00mm) | 0.047" Flexible Cable | 50 Ohms | - | - | 40 GHz | Violet | Shielded | -65°C ~ 125°C | - | - |
|

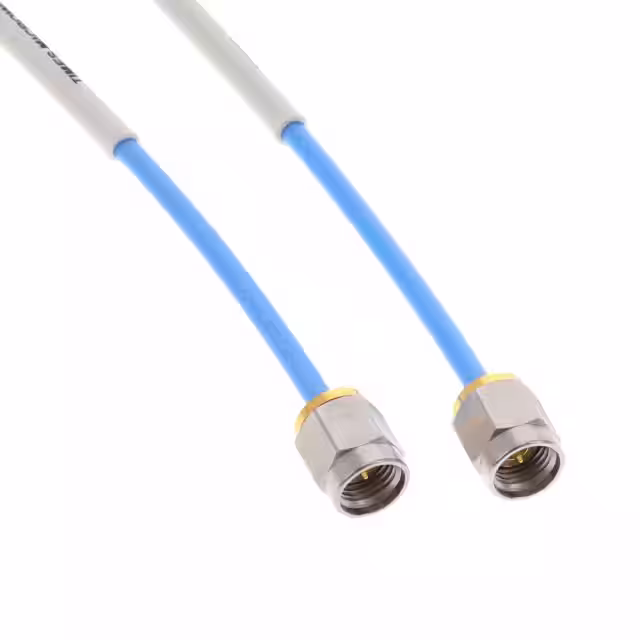

IB086-KMKM-6.0INCOAX CBL 2.92MM TO 2.92MM |
2,466 |
|
Datasheet |
INSTABEND™ | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.086" Flexible Cable | - | - | 50 Ohms | 62 GHz | Blue | - | -60°C ~ 125°C | - | - |
|
|
IB086-KMKM-8.0INCOAX CBL 2.92MM TO 2.92MM |
3,027 |
|
Datasheet |
INSTABEND™ | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 8.000" (203.20mm) | 0.086" Flexible Cable | - | - | 50 Ohms | 62 GHz | Blue | - | -60°C ~ 125°C | - | - |
|
RF23C-24SP-92SP-0152COAX CBL 2.4MM TO 2.92MM |
3,611 |
|
Datasheet |
RF23C | Bag | Active | 2.4mm to 2.92mm | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 5.984" (152.00mm) | 1.00mm OD Coaxial Cable | 50 Ohms | - | - | 50 GHz | Violet | Shielded | -65°C ~ 125°C | - | - |
|
|
TM7SM8MS8FS031CCOAX CBL 1.85MM TO 1.85MM |
4,647 |
|
Datasheet |
- | Bag | Active | 1.85mm to 1.85mm | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 1.85mm Jack | Female | Free Hanging (In-Line) | - | 1.200" (30.48mm) | 0.078" OD Coaxial Cable | - | - | 50 Ohms | 65 GHz | Teal | - | -50°C ~ 105°C | - | - |
|
|
IB047-SMSMPF-12.0INCOAX CBL SMA TO SMP |
3,649 |
|
Datasheet |
- | Bag | Active | SMA to SMP | SMP Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | 50 Ohms | - | - | 18 GHz | Blue | - | -65°C ~ 125°C | - | - |
|
|
TM7SM9MS9FS061CCOAX CBL 2.92MM TO 2.92MM |
3,501 |
|
Datasheet |
- | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 1.98mm OD Coaxial Cable | - | - | 50 Ohms | 40 GHz | Teal | - | -50°C ~ 105°C | - | - |
|
0897621540COAX CBL 2.92MM TO 2.92MM |
1,582 |
|
Datasheet |
89762 | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .086 | - | - | 50 Ohms | - | Blue | - | -65°C ~ 165°C | - | - |
|

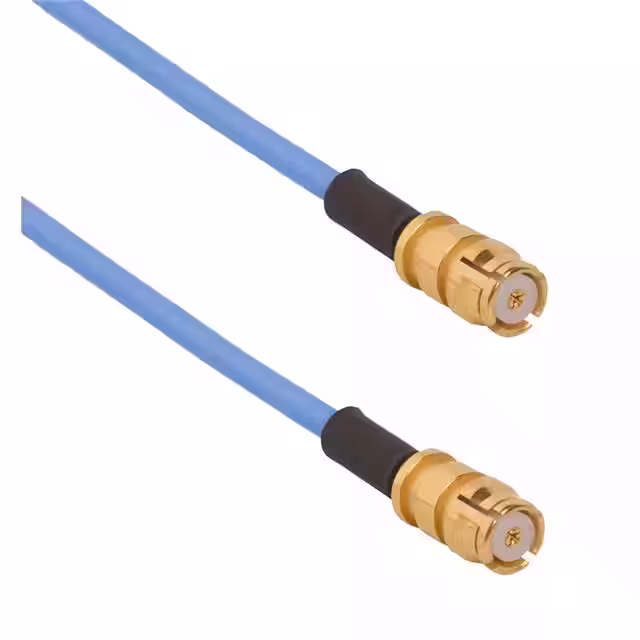

7012-0798COAX CBL SMP TO SMP |
4,371 |
|
Datasheet |
- | Bulk | Active | SMP to SMP | SMP Jack | Female | Free Hanging (In-Line) | - | SMP Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
FC75-01-CA006COAX CBL SMA TO SMA |
2,816 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | - | - | - | 75 Ohms | - | Clear | Shielded | -65°C ~ 165°C | - | - |
|

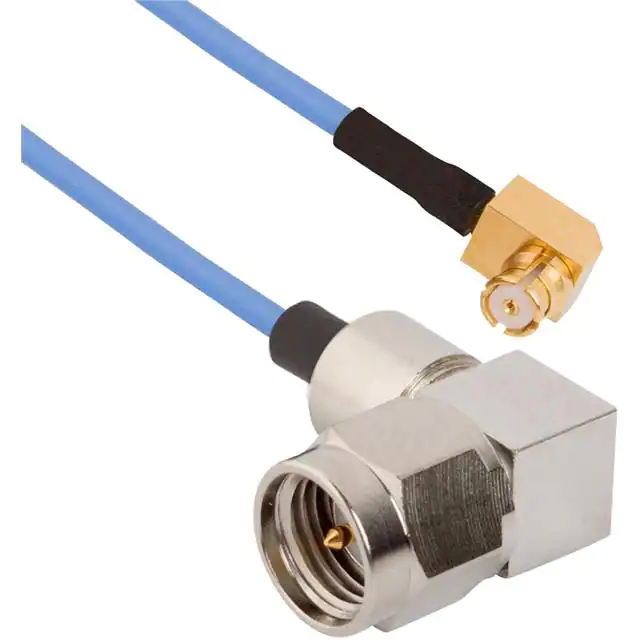

7012-1330COAX CBL SMA TO SMP |
4,615 |
|
Datasheet |
- | Bulk | Active | SMA to SMP | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
|
RF047-A-92SP-92SP-0305COAX CBL 2.92MM TO 2.92MM |
2,490 |
|
Datasheet |
RF047-A | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.01" (305.00mm) | 0.047" Flexible Cable | 50 Ohms | - | - | 40 GHz | Violet | Shielded | -65°C ~ 125°C | - | - |
|
|
7032-8547COAX CBL SMA TO SMPM |
1,001 |
|
Datasheet |
- | Bag | Active | SMA to SMPM | SMA Plug | Male | Free Hanging (In-Line) | - | SMPM Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 18 GHz | Blue | - | -65°C ~ 165°C | - | - |
|

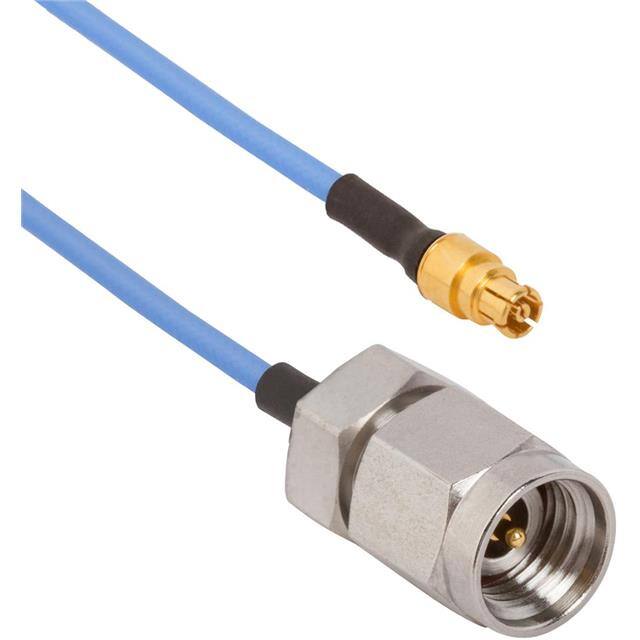

7032-6758COAX CBL SMPM TO 2.92MM |
4,090 |
|
Datasheet |
- | Bulk | Active | SMPM to 2.92mm | SMPM Jack | Female | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
|
RF047-A-92SP-M0SJ-0305COAX CBL SMPM TO 2.92MM |
1,769 |
|
Datasheet |
RF047-A | Bag | Active | SMPM to 2.92mm | SMPM Jack | Female | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.01" (305.00mm) | 0.047" Flexible Cable | 50 Ohms | - | - | 40 GHz | Violet | Shielded | -65°C ~ 125°C | - | - |
|

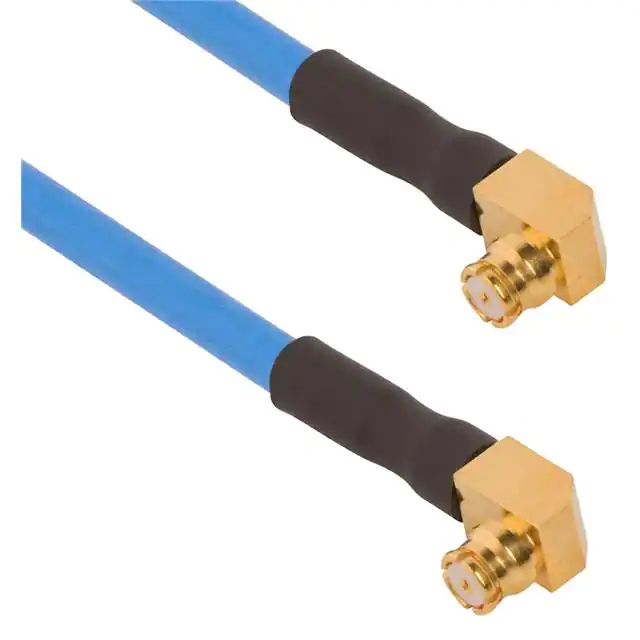

7012-0799COAX CBL SMP TO SMP |
3,116 |
|
Datasheet |
- | Bulk | Active | SMP to SMP | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.085" Flexible Cable | - | - | 50 Ohms | 26.5 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
MS190LH1-HRMJ-040V100COAX CBL SMA TO SMA |
4,309 |
|
Datasheet |
MS-190 | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | - | - | - | 50 Ohms | 11 GHz | - | - | -40°C ~ 85°C | - | - |
