Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7038-0249COAX CBL SMPS TO SMPS |
4,281 |
|
Datasheet |
- | Bulk | Active | SMPS to SMPS | SMPS Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMPS Jack, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
CCASMA-MM-LL142-60COAX CBL SMA TO SMA |
4,646 |
|
Datasheet |
CCASMA | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | - | - | 50 Ohms | 18 GHz | Silver | Armored Cable, Shielded, Stainless Steel | -40°C ~ 85°C | - | - |
|
7033-0035COAX CBL 1.85MM TO 1.85MM |
2,956 |
|
Datasheet |
- | Bag | Active | 1.85mm to 1.85mm | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | 50 Ohms | 50 Ohms | 50 Ohms | 65 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
|
7032-9436COAX CBL 2.92MM TO SMPM |
2,497 |
|
Datasheet |
- | Bag | Active | 2.92mm to SMPM | 2.92mm Plug | Male | Free Hanging (In-Line) | - | SMPM Jack, Right Angle | Female | Free Hanging (In-Line) | - | 4.000" (101.60mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 33 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
7016-0062COAX CBL 2.4MM TO 2.92MM |
3,734 |
|
Datasheet |
- | Bulk | Active | 2.4mm to 2.92mm | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

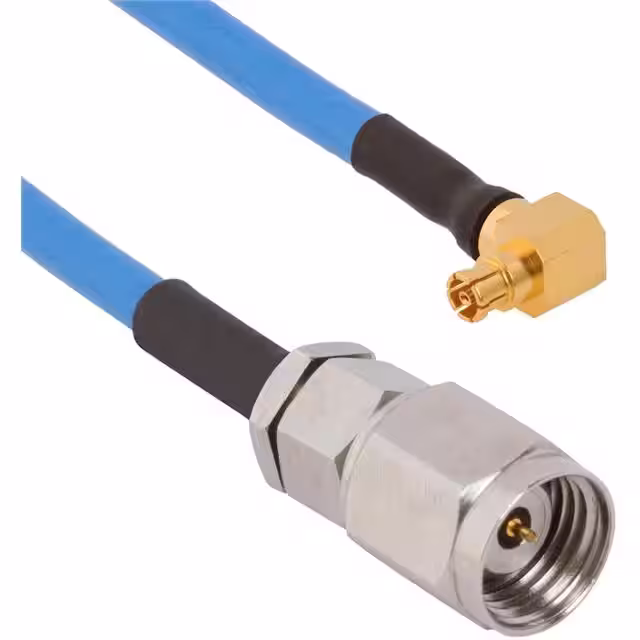

7016-0067COAX CBL SMPM TO 2.4MM |
1,183 |
|
Datasheet |
- | Bulk | Active | SMPM to 2.4mm | SMPM Jack, Right Angle | Female | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7016-0061COAX CBL 2.4MM TO 2.92MM |
4,048 |
|
Datasheet |
- | Bulk | Active | 2.4mm to 2.92mm | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7093-0183COAX CBL BMA TO SMA |
3,932 |
|
Datasheet |
- | Bulk | Active | BMA to SMA | BMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | TFlex-402 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

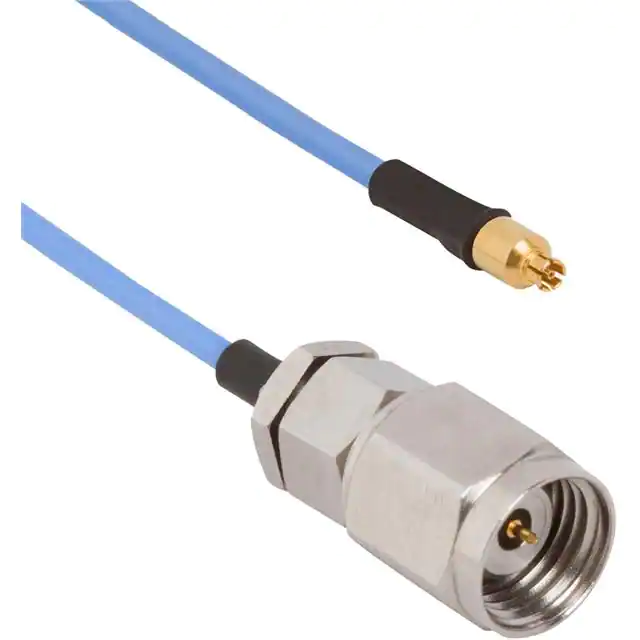

7016-0075COAX CBL SMPS TO 2.4MM |
2,023 |
|
Datasheet |
- | Bulk | Active | SMPS to 2.4mm | SMPS Jack | Female | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 50 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7015-0990COAX CBL 2.92MM TO 2.92MM |
2,817 |
|
Datasheet |
- | Bulk | Active | 2.92mm to 2.92mm | 2.92mm Plug, Right Angle | Male | Free Hanging (In-Line) | - | 2.92mm Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

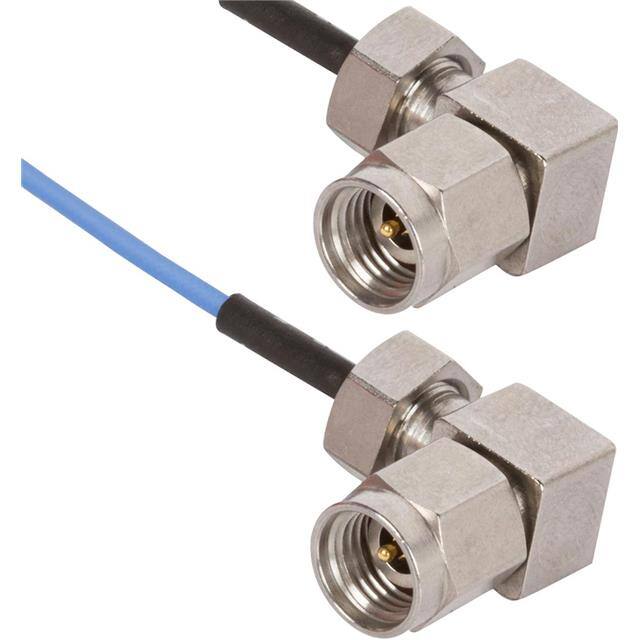

7015-0991COAX CBL 2.92MM TO 2.92MM |
3,691 |
|
Datasheet |
- | Bulk | Active | 2.92mm to 2.92mm | 2.92mm Plug, Right Angle | Male | Free Hanging (In-Line) | - | 2.92mm Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
2121-DKF-0048COAX CBL SMA TO SMA |
1,313 |
|
Datasheet |
DKF | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | HP 190S | - | - | 50 Ohms | 18 GHz | Gray | Shielded | -55°C ~ 85°C | - | - |
|
|
PMA SF126E/11PC35/11PC35/610MMCOAX CBL 3.5MM TO 3.5MM |
4,119 |
|
Datasheet |
Sucoflex® 100 | Bag | Active | 3.5mm to 3.5mm | 3.5mm Plug | Male | Free Hanging (In-Line) | - | 3.5mm Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | 5.50mm OD Coaxial Cable | 50 Ohms | - | - | 26.5 GHz | Blue | - | -40°C ~ 85°C | - | - |
|
|
SF126E/11PC35/11PC35/610MMCOAX CBL 3.5MM TO 3.5MM |
3,412 |
|
Datasheet |
Sucoflex® 100 | Bag | Active | 3.5mm to 3.5mm | 3.5mm Plug | Male | Free Hanging (In-Line) | - | 3.5mm Plug | Male | Free Hanging (In-Line) | - | - | 5.50mm OD Coaxial Cable | 50 Ohms | - | - | 26.5 GHz | Blue | - | -40°C ~ 85°C | - | - |
|
|
779697-02COAX CBL BNC TO BNC |
2,507 |
|
- |
- | Box | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | - | - | - | 50 Ohms | - | Black | - | - | - | - |
|
7015-1000COAX CBL 2.92MM TO 2.92MM |
3,157 |
|
Datasheet |
- | Bulk | Active | 2.92mm to 2.92mm | 2.92mm Plug, Right Angle | Male | Free Hanging (In-Line) | - | 2.92mm Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
5151-DKF-0024COAX CBL N-TYPE TO N-TYPE |
2,491 |
|
Datasheet |
DKT | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | HP 190S | - | - | 50 Ohms | 26 GHz | Gray | Shielded | -65°C ~ 200°C | - | - |
|
|
PMA SF102E/11SK/11SK/610MMCOAX CBL 2.92MM TO 2.92MM |
4,719 |
|
Datasheet |
Sucoflex® 100 | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 4.00mm OD Coaxial Cable | 50 Ohms | - | - | 40 GHz | Blue | - | -40°C ~ 85°C | - | - |
|
|
SF550E/11PC24/11PC24/24INCOAX CBL 2.4MM TO 2.4MM |
2,123 |
|
Datasheet |
Sucoflex® 500 | Bag | Active | 2.4mm to 2.4mm | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 3.70mm OD Coaxial Cable | 50 Ohms | - | - | 50 GHz | Blue | - | -50°C ~ 125°C | - | - |
|
|
32061SE-29171M16CR-29174M16CR-6COAX CBL SMPS TO SMPS |
1,050 |
|
Datasheet |
NANOBEND | Bulk | Active | SMPS to SMPS | SMPS Jack | Female | - | - | SMPS Jack | Female | - | - | 6.000" (152.40mm) | 1.60mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 110 GHz | Silver | - | -55°C ~ 200°C | - | - |
